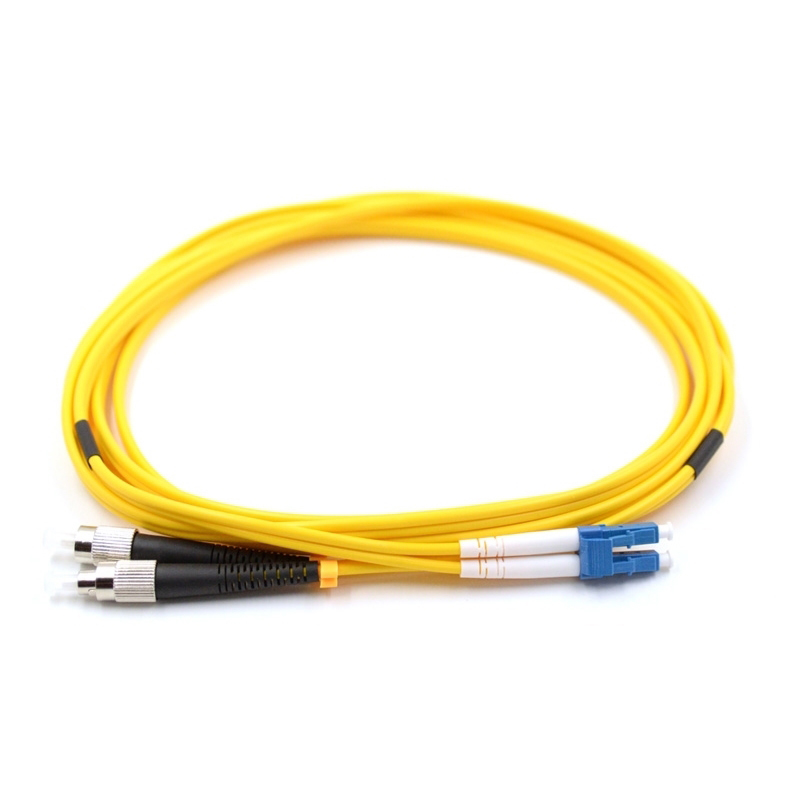

The Fiber Optical Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration.
A fiber optic patch cord is constructed from a core with a high refractive index, surrounded by a coating with a low refractive index, that is strengthened by aramid yarns and surrounded by a protective jacket. Transparency of the core permits transmission of optic signals with little loss over great distances. The coating's low refractive index reflects light back into the core, minimizing signal loss. The protective aramid yarns and outer jacket minimizes physical damage to the core and coating.
The LC and FC connector is a fiber-optic connector with a threaded body, which was designed for use in high-vibration environments. It is commonly used with both single-mode optical fiber and polarization-maintaining optical fiber.

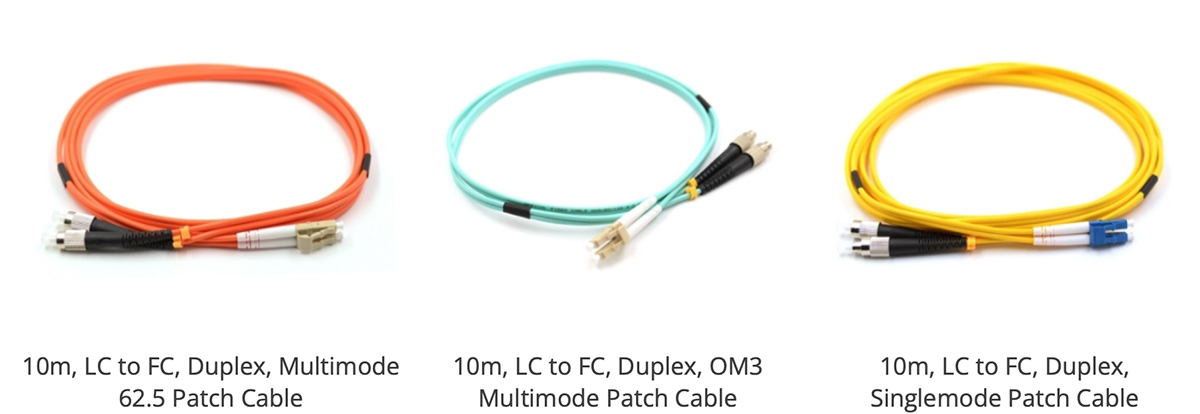

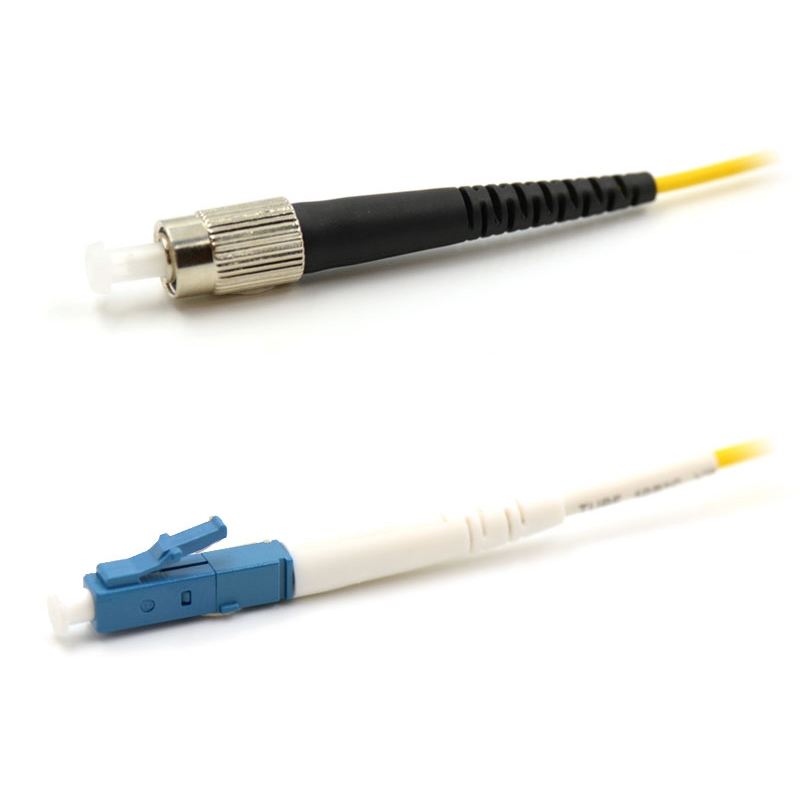

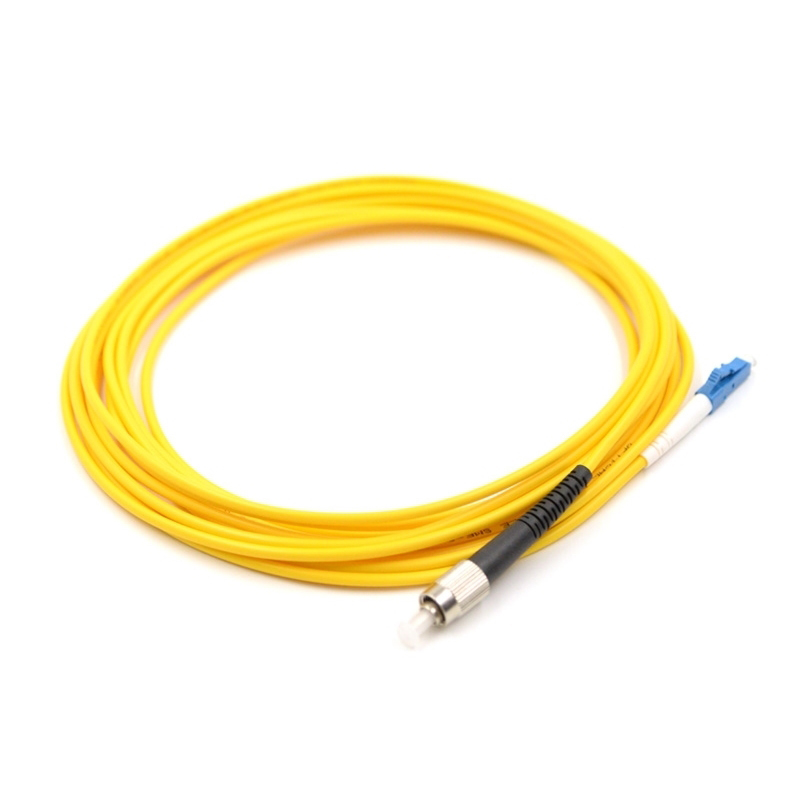

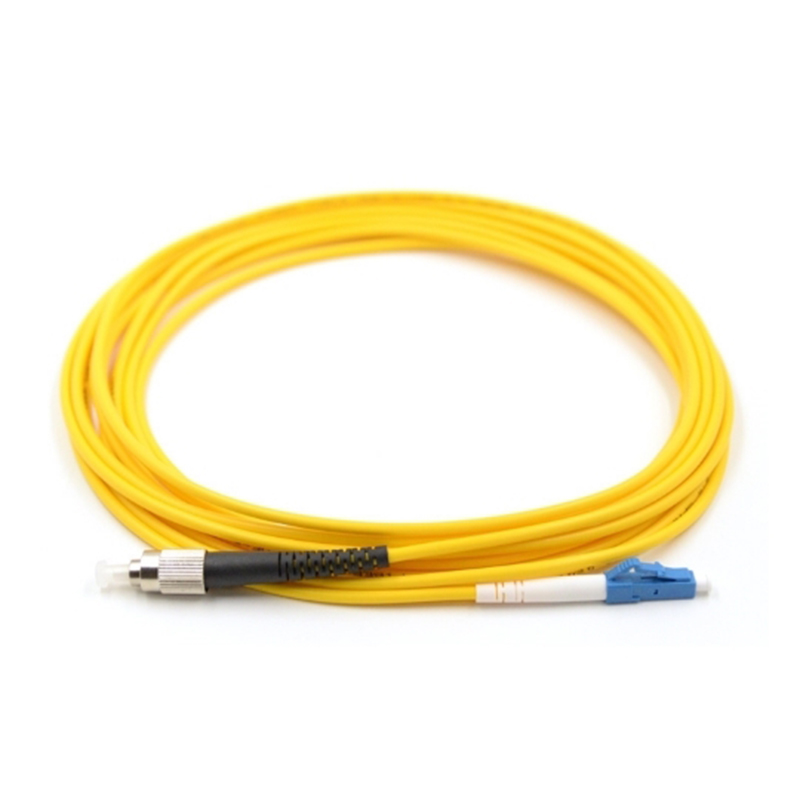

LC/UPC to FC/UPC fiber optic patch cord is one of common type fiber optic patch cord, its one side termination come with LC/UPC connector and another side come with FC/UPC connector.
The termination connector can be Single mode UPC, APC or Mutlimode PC.

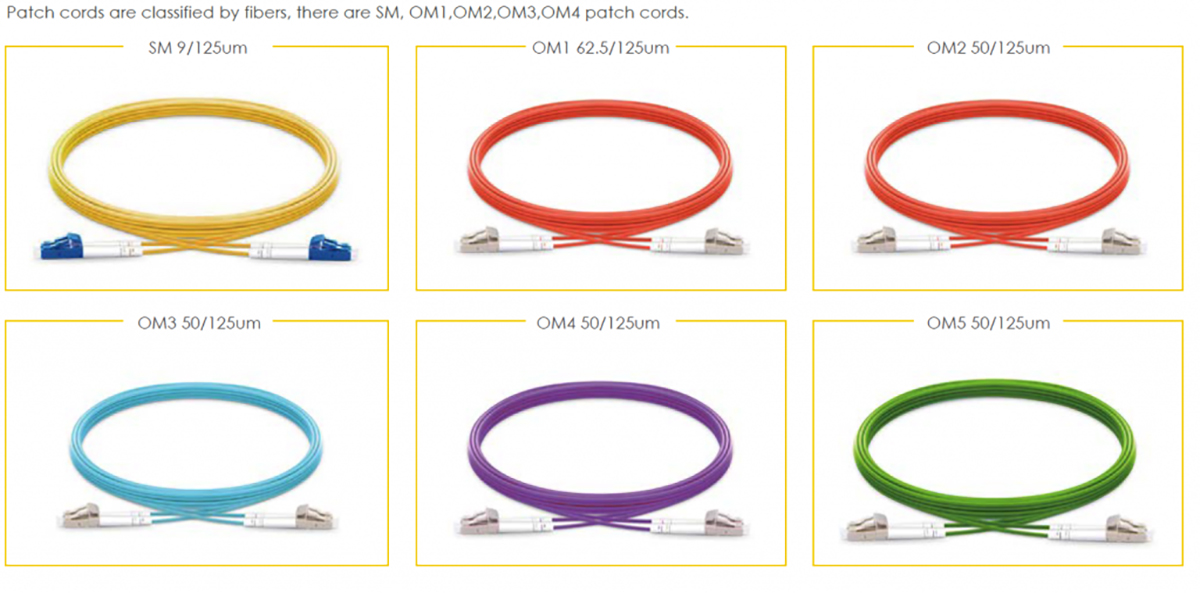

Normally, the cable use single mode G652D, and also have other choose use single mode G657A1, G657A2, G657B3 or Multimode OM1, OM2, OM3, OM4, OM5.
| Type | Standard |
| Style | LC, SC, ST, FC, MU, DIN, D4, MPO, SMA, SC/APC, FC/APC, LC/APC, MU/APC, Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type | 9/125 Single mode: G652D, G657A1, G657A2, G657B3 | 62.5/125 OM1 | 50/125 OM2 | 50/125 OM3 | 50/125 OM4 | 50/125 OM5 |
| Cable Type | Simplex, Duplex, Multi-fibers, ... |
| Cable Diameter | Φ3.5mm, Φ3.0mm, Φ2.0mm, Φ1.8mm, Φ1.6mm, Φ0.9mm, Φ0.6mm, Customized |
| Cable outsheath | PVC, LSZH, OFNR |
| Polishing Manner | UPC, APC |
| Insertion Loss | ≤ 0.3dB (For Singlemode Standard) | ≤ 0.3dB (For Multi mode) |
| Return Loss (For Single mode) | UPC ≥ 50dB | APC ≥ 55dB |
| Repeatability | ±0.1dB |
| Operating temperature | -40°C to 85°C |
