• Reliable fastening, Stripping and earthling devices for optic fiber.• Suitable for LC, SC, FC, ST and E2000, ... adapter.• Fit for 19'' rack.• Accessories make fiber avoid damaging.• Slide out design, easy to access the back and splicer.• High-quality steel, beautiful appearance.• Maximum capacity: 96 fibers.• All material meet ROHS compliant.
Designed for cabinet installations and widely used for connecting optical fibers and central office equipment. Fits standard 19-inch rack structures.

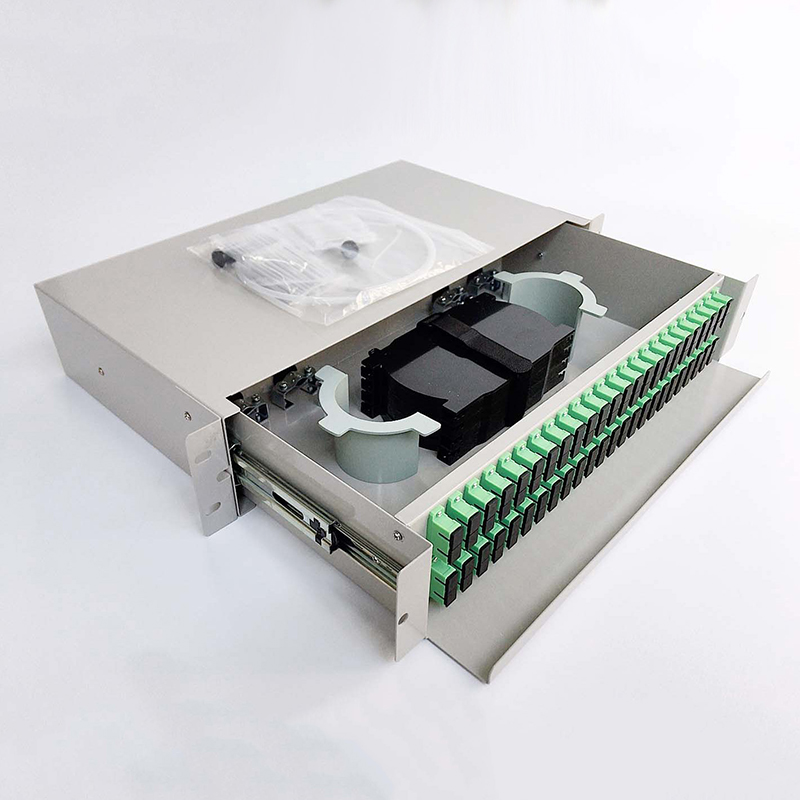

Premium Design
Features a sliding drawer design with high intensified, insulated cold-rolled steel and a durable black powder finish.
Key Features

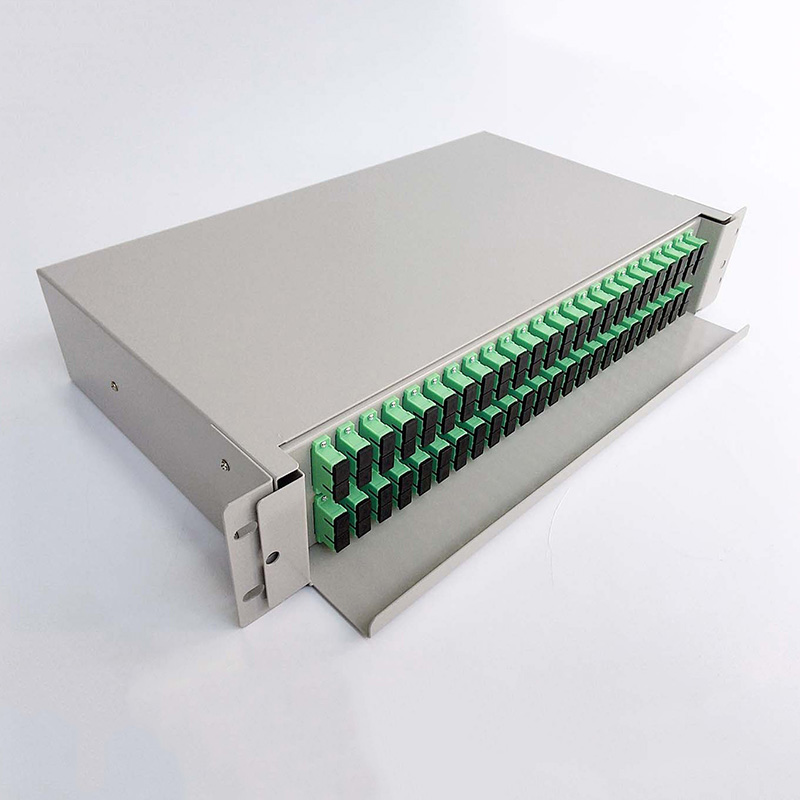

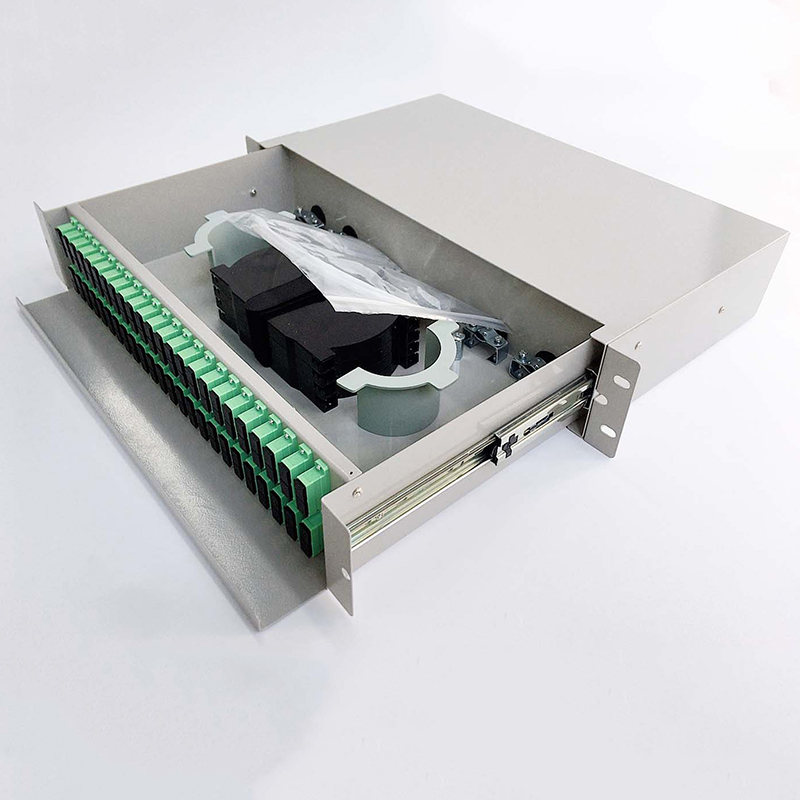

The front panel can be drawn out and the rack mount is removable.
Modulized structure designed for simple assembly with various pigtails and adapters.
Standard 19-inch size allows control over the bend radius of fiber cables to minimize optical loss.
Each patch panel is fully loaded with adapter plates, splice trays, and standard configuration accessories.

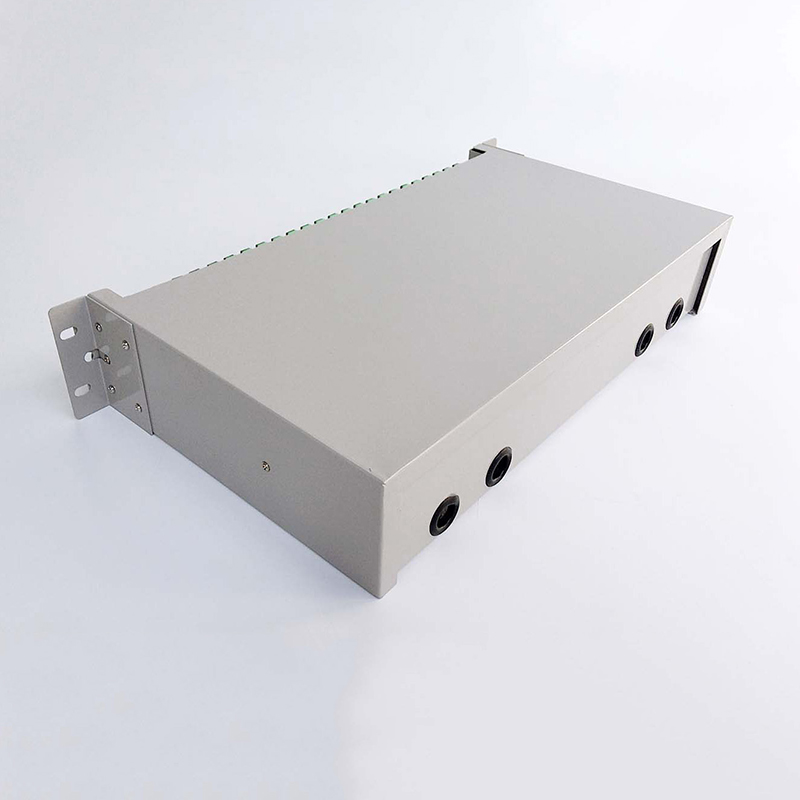

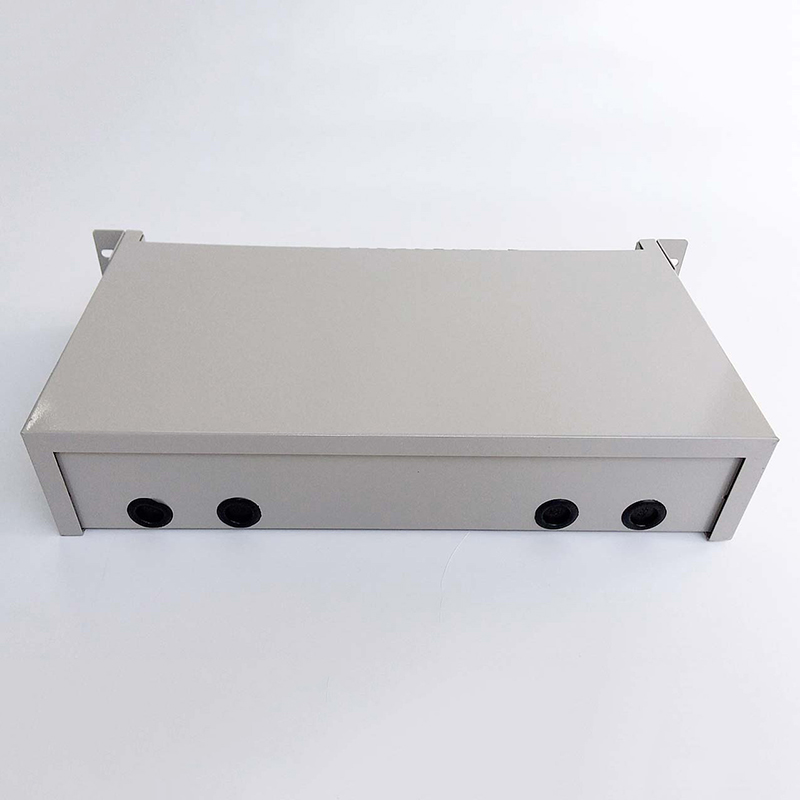

The shell features high mechanical performance, providing solid, durable insulation and safety grounding.
Compatible with 19" fiber optic distribution frames and supports wall-mount installations.
All materials meet RoHS compliance standards.
Product Specifications
Parameter
Specification Detail
Name
19" Fiber Optic Patch Panel / Rack Mount
P/N
RM-1U-Drawer-02
Type
Drawer Type
Size
485 x 300 x 44.5 mm
Adapter Port
12 or 24 ports
Color
Black (White optional)
Capacity
Maximum 24 Cores
Steel Thickness
1.0 mm
Insertion Loss
≤ 0.2dB
Return Loss
≥ 50dB (UPC), ≥ 60dB (APC)
Durability
1000 Matings
Nominal Wavelength
850nm, 1310nm, 1550nm
Operating Temperature
-25°C to +40°C
Storage Temperature
-25°C to +55°C
Relative Humidity
≤ 85% (+30°C)
Air Pressure
70 Kpa to 106 Kpa
Connector Support
SC, FC, LC, ST, etc.
Cable Compatibility
0.9mm to 22.0mm
Performance Parameters
Suitable for central office connection points in OANs, data centers, local area networks, and related configurations.
1U (≤ 24 Cores)
2U (≤ 48 Cores)
Insulation Resistance: >1000MΩ / 500V (DC)
Max Box Capacity: Up to 96 Fibers
Standard Accessories
Empty box cover: 1 set
Lock: 1 or 2 pcs
Heat shrink tube: 8 or 16 pcs
Ribbon tie: 4 pcs
Screw: 4 pcs
Expansion tube for screw: 4 pcs

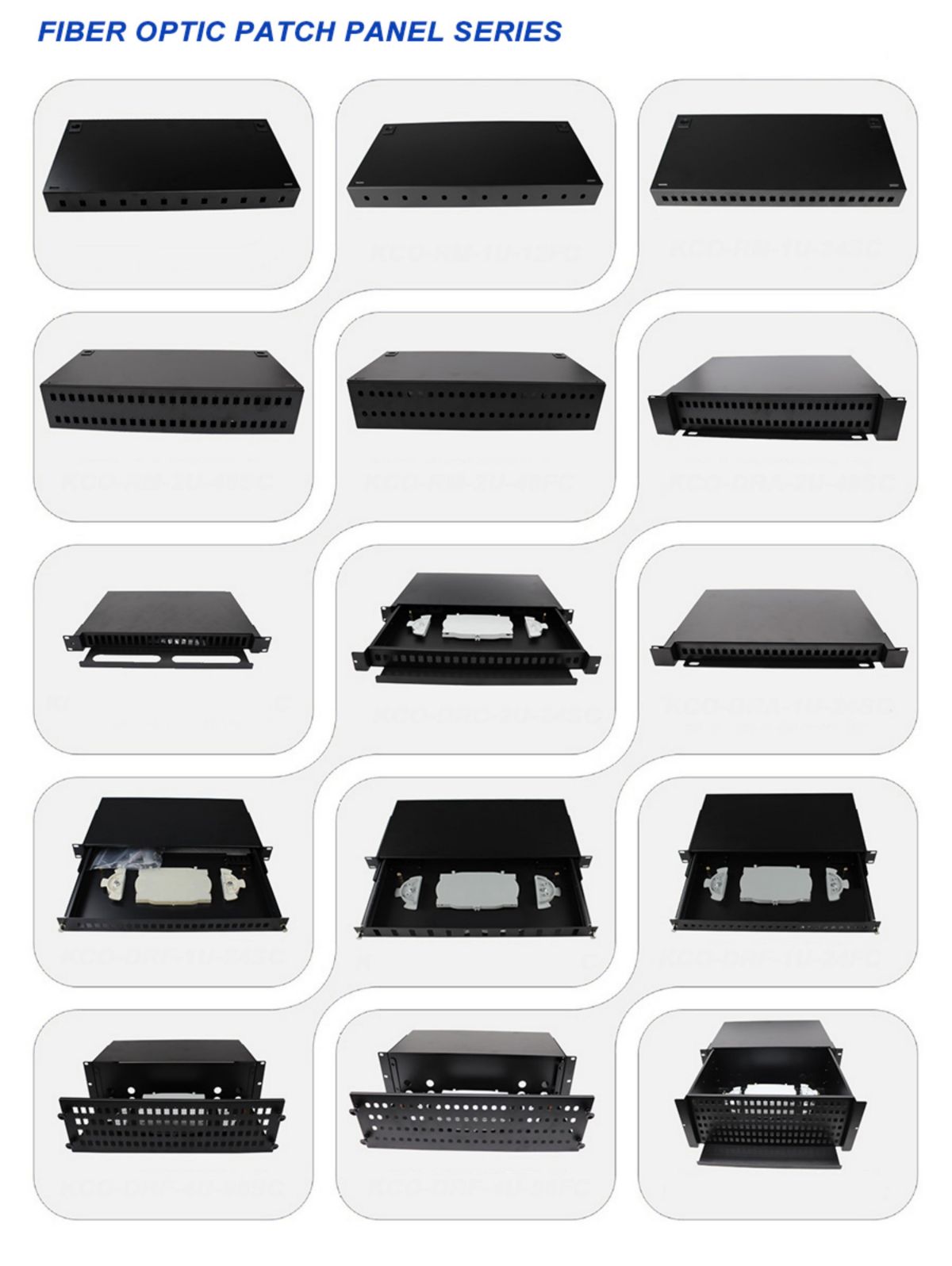

Component Details & Options
Reliable fastening, stripping, and grounding mechanisms for optical fiber.
Compatible with LC, SC, FC, ST, and E2000 adapters.
Protective designs prevent damage to fibers during operation.
Splice Tray and Protective sleeves included.
Adapters and Pigtails are available upon request.
Frequently Asked Questions (FAQ)
What is the maximum capacity of this fiber optic patch panel?
The standard 1U configuration supports up to 24 cores, while the 2U configuration supports up to 48 cores. The design allows a maximum system capacity of up to 96 fibers depending on setup options.
Does the patch panel support different adapter types?
Yes. The panel features a modular layout that is highly compatible with standard LC, SC, FC, ST, and E2000 adapters.
What are the insertion and return loss ratings?
The typical insertion loss is ≤ 0.2dB. The return loss is rated at ≥ 50dB for UPC polishing and ≥ 60dB for APC polishing, ensuring high-quality optical signal integrity.
What structural material is used, and is it durable?
The casing is manufactured from 1.0mm thick insulated cold-rolled steel with a black powder coating. It offers excellent mechanical performance, insulation, and grounding.
Is the rack mount drawer removable?
Yes, the drawer-type front panel slides out, and the rack mount itself is fully removable to simplify fiber splicing, routing, and system maintenance.
