Cheap PA66 Nylon FTTH Drop Optical Fiber Cable Wire Feeder Clamp For Aerial Cable Installation FCST-ACC Product, Products
1 / 5
Cheap PA66 Nylon FTTH Drop Optical Fiber Cable Wire Feeder Clamp For Aerial Cable Installation FCST-ACC Product, Products
• It is intended for suspension of flexible subscriber cables FTTH with optical fiber. • It consists of a round (heart-shaped) body and an open bow-duck that can be securely clamped into the clamping body. • The clamp is made of PA66 nylon.• Used as an anchorage of a flexible cable on the end support (on poles, buildings). When using two clamps, suspension is carried out on intermediate supports. • The unique patented design allows the anchoring of the cable on the end support without any radial pressure on the cable and fiber and provides additional protection for the FTTH cable.
Intended for the suspension of flexible subscriber FTTH cables with optical fiber.

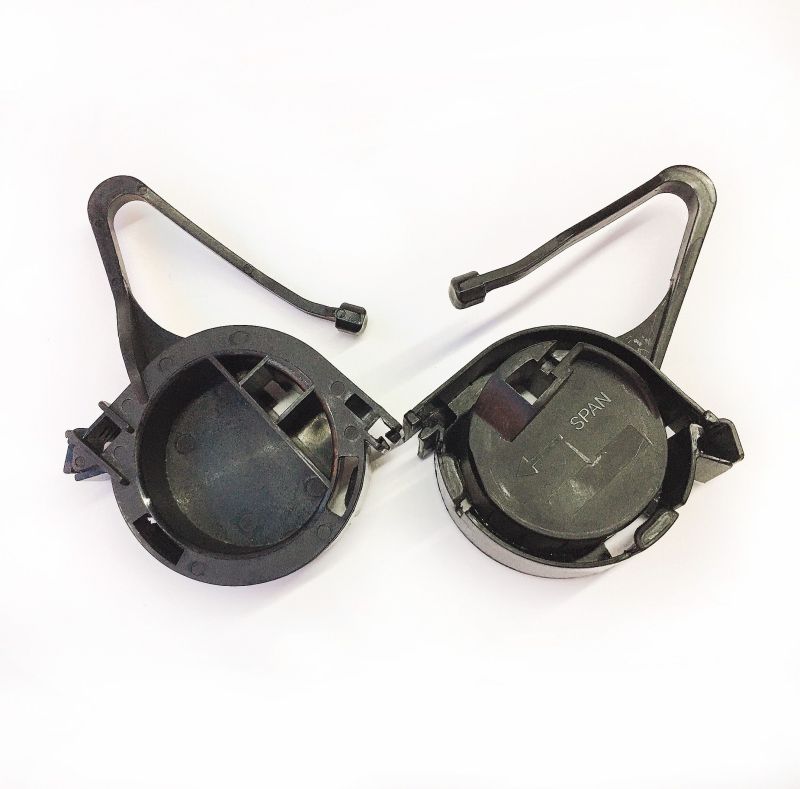

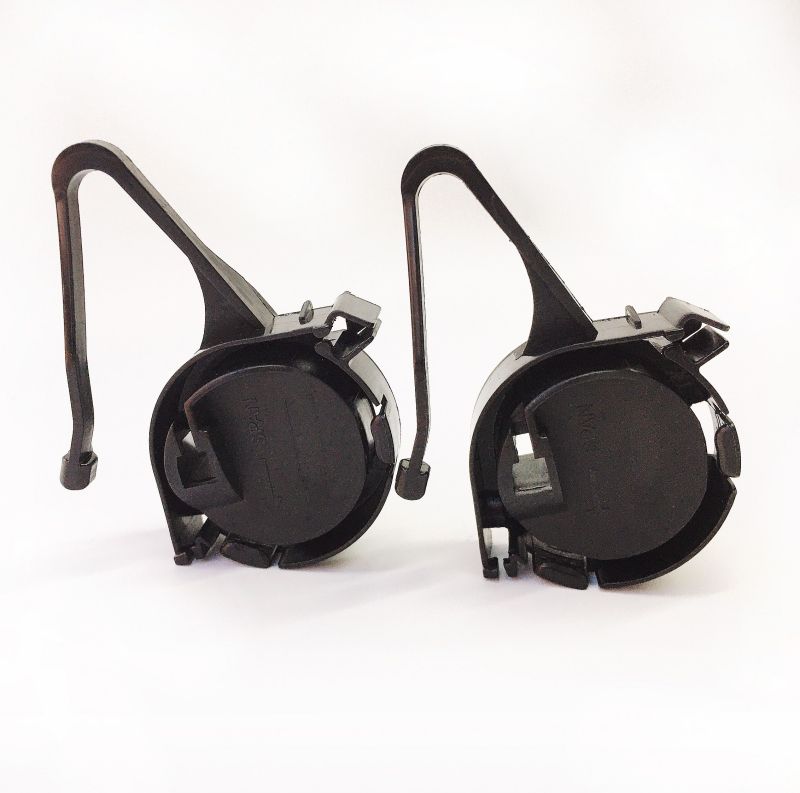

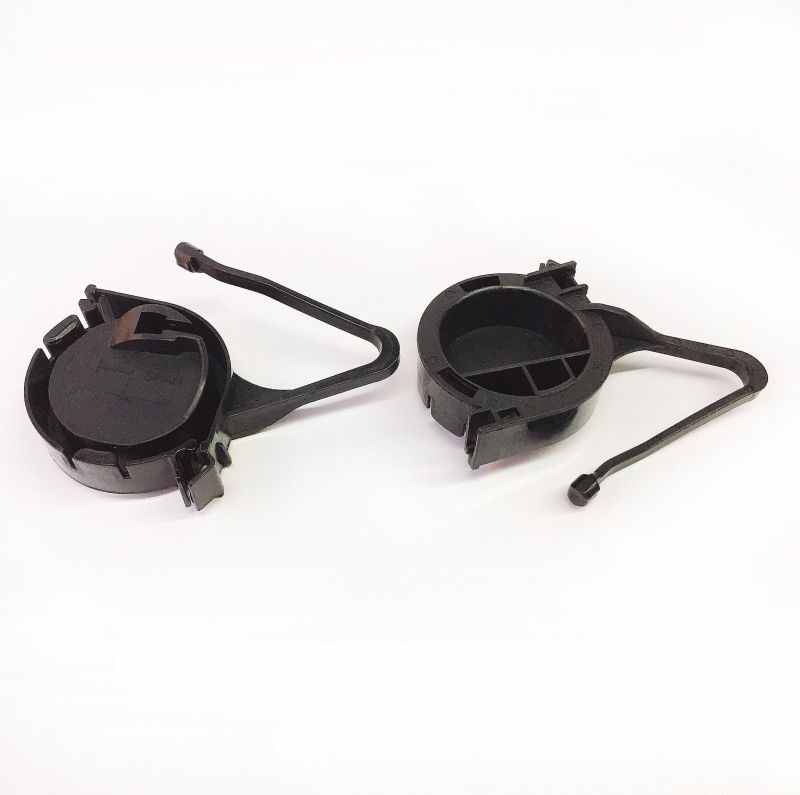

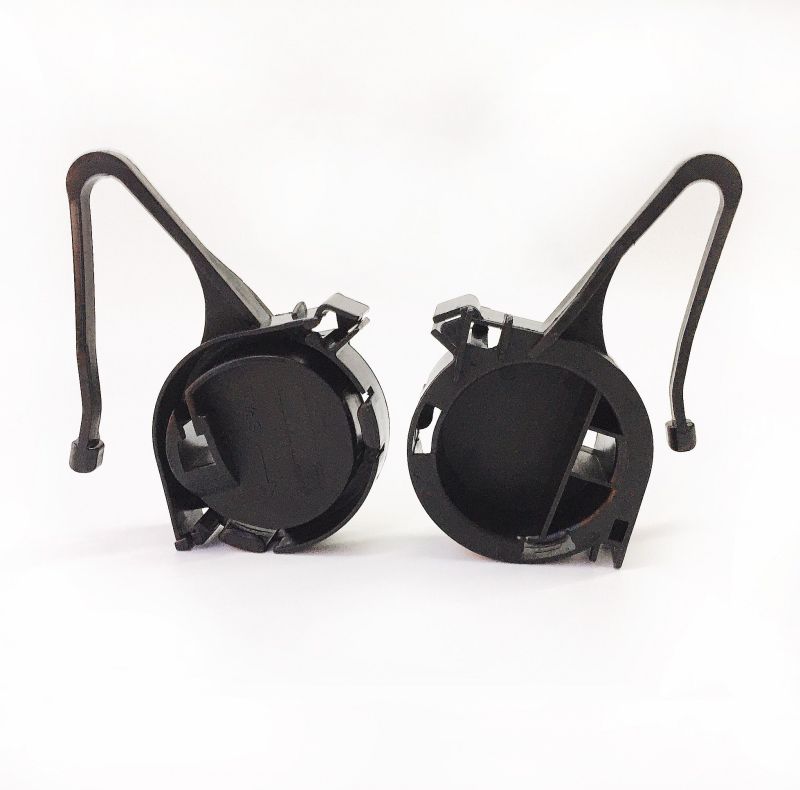

Consists of a round (heart-shaped) body and an open bow-duck that securely clamps into the clamping body.
The clamp is made of premium, durable PA66 nylon.

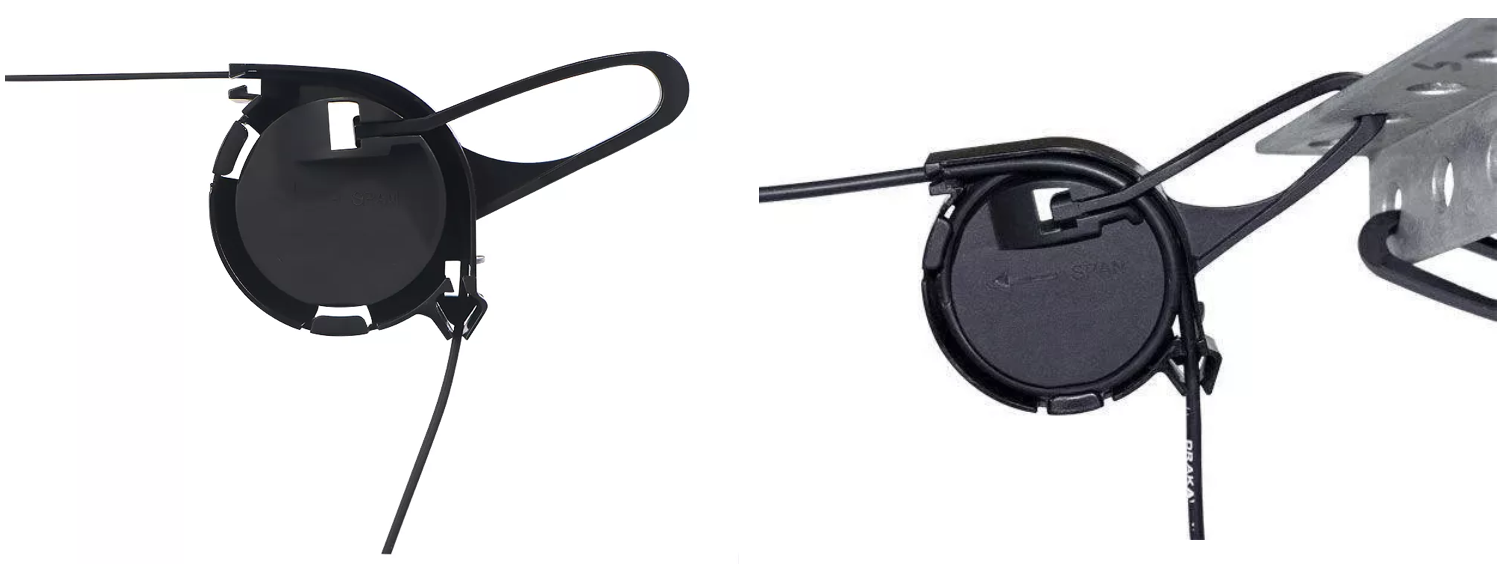

Used as an anchorage for flexible cables on end supports (poles, buildings). Using two clamps allows suspension on intermediate supports.
The unique patented design enables secure cable anchoring on the end support without applying radial pressure to the cable or fiber, providing additional protection.
The plum ring hook is used to set an anchoring point on poles, matching with steel band hoops for wooden poles, concrete communication poles, etc.
Technical Specifications
Construction
Description
Max Span (m)
70
Stretching Resistance (N)
600
Salt Spray Test (h)
1000
Weight (g)
70
Material
Plastic, PA66 Nylon
Cable diameter range
2-6mm
Frequently Asked Questions
What is the primary application of this suspension clamp?
This clamp is designed for the suspension and anchoring of flexible FTTH subscriber cables with optical fiber on poles, buildings, and end supports.
What materials are used to construct the clamp?
The body and clamping elements of the suspension clamp are made of premium-grade plastic and durable PA66 Nylon for long-lasting environmental resistance.
Does the clamp damage the optical fiber during anchoring?
No. It features a unique patented design that allows anchoring of the cable on the end support without applying radial pressure, protecting the inner fiber from damage.
What cable diameters is this clamp compatible with?
This suspension clamp is designed to hold flexible subscriber cables with a diameter range of 2mm to 6mm.
Can this clamp be used on intermediate pole supports?
Yes. While a single clamp is used for end supports, using two clamps together allows for secure suspension on intermediate supports.
How is the clamp fixed to wooden or concrete communication poles?
A plum ring hook is matched with a steel band hoop to create a secure anchoring point on wooden poles, concrete communication poles, and buildings.
