Cheap SM Single Mode G652D GYTA 24fibers Direct Burial Outdoor Fibre Optical Cable Manufacturer, Supplier
Cheap SM Single Mode G652D GYTA 24fibers Direct Burial Outdoor Fibre Optical Cable Manufacturer, Supplier
Cheap SM Single Mode G652D GYTA 24fibers Direct Burial Outdoor Fibre Optical Cable Manufacturer, Supplier
1 / 3
Cheap SM Single Mode G652D GYTA 24fibers Direct Burial Outdoor Fibre Optical Cable Manufacturer, Supplier
Cheap SM Single Mode G652D GYTA 24fibers Direct Burial Outdoor Fibre Optical Cable Manufacturer, Supplier
Cheap SM Single Mode G652D GYTA 24fibers Direct Burial Outdoor Fibre Optical Cable Manufacturer, Supplier

Cheap SM Single Mode G652D GYTA 24fibers Direct Burial Outdoor Fibre Optical Cable Manufacturer, Supplier

+ Use for outdoor such as pipeline, under ground, duct or direct burial  + Fiber count: 24 fibers, 48fibers, 96 fibers, 144 fibers, 288 fibers + Fiber type: SM:G652D, SM G657A1, SM G657A2, G655 MM: OM1, OM2,  OM3,  OM4,  OM5 + Cable out-sheath: PE, black + Cable diameter: 8.5mm, 9.0mm, 10.5mm + Cable printing and labelling: accept.
Send Inquiry

Product Description

Key Features & Advantages
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Specially designed compact structure is good at preventing loose tubes from shrinking
  • PE sheath protects cable from ultraviolet radiation
  • The following measures are taken to ensure the cable watertight:
    • Steel wire used as the central strength member
    • Loose tube filling compound
    • 100% cable core filling
  • 100% tested before shipment

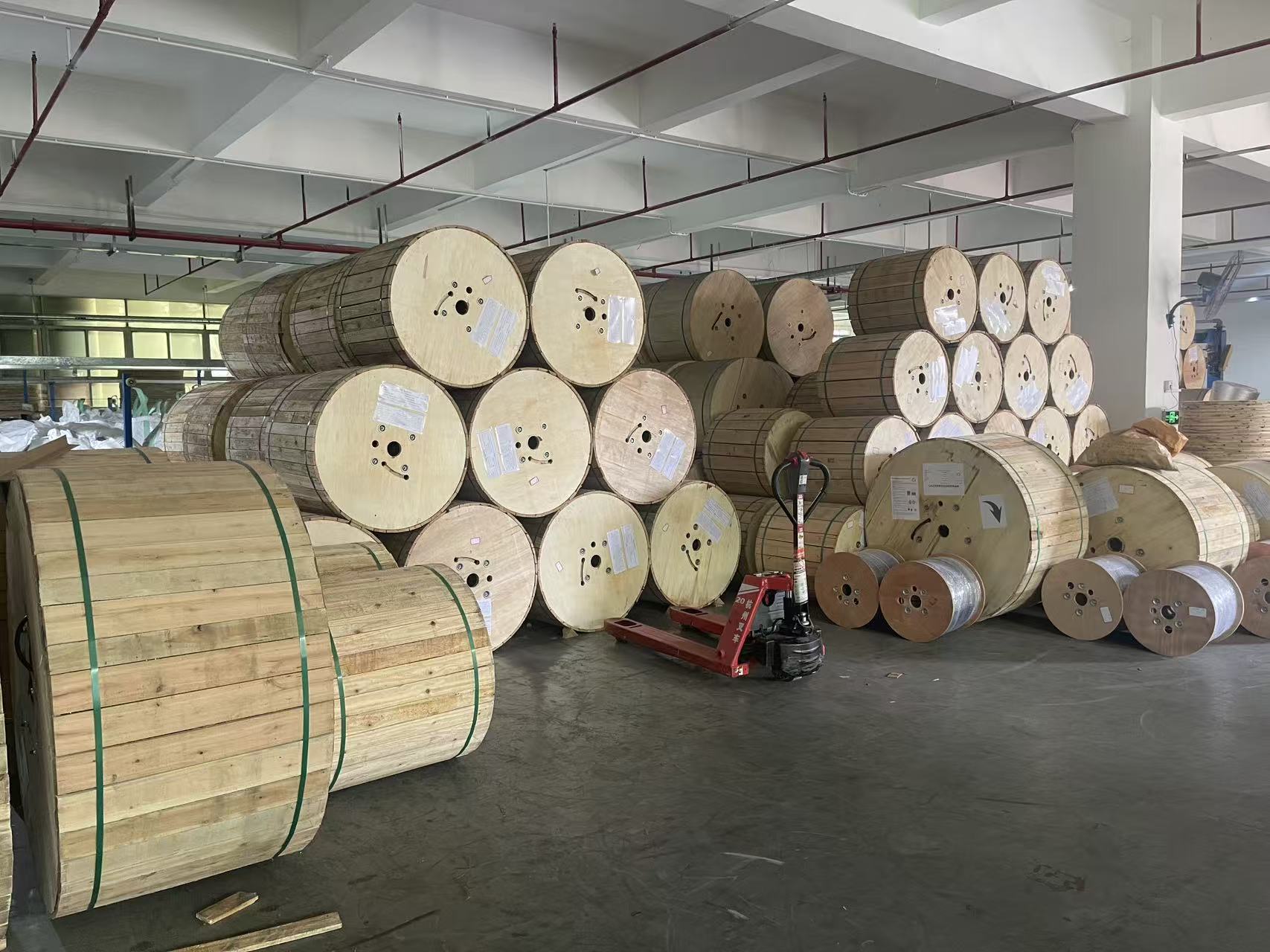

  • Cable reel length: 1km, 2km, 3km, 5km
Cable Type Specifications
Cable Type Fiber Count Tubes Fillers Cable Diameter (mm) Cable Weight (kg/km) Tensile Strength Long/Short Term (N) Crush Resistance Long/Short Term (N/100mm) Bending Radius Static/Dynamic (mm)
GYTA-2~12 8~12 1 4 9.0 100 1000/3000 1000/3000 10D/20D
GYTA-14~18 14~18 3 2 9.0 100 1000/3000 1000/3000 10D/20D
GYTA-20~24 20~24 4 1 9.5 110 1000/3000 1000/3000 10D/20D
GYTA-26~36 26~36 4 1 9.5 120 1000/3000 1000/3000 10D/20D
GYTA-38~48 38~48 4 1 10.0 140 1000/3000 1000/3000 10D/20D
GYTA-50~60 50~60 5 0 10.8 150 1000/3000 1000/3000 10D/20D
GYTA-62~72 62~72 6 0 11.9 170 1000/3000 1000/3000 10D/20D
GYTA-74~84 74~84 7 1 12.5 180 1000/3000 1000/3000 10D/20D
GYTA-86~96 86~96 8 0 13.6 210 1000/3000 1000/3000 10D/20D
GYTA-98~108 98~108 9 1 14.5 230 1000/3000 1000/3000 10D/20D
GYTA-110~120 110~120 10 0 14.8 240 1000/3000 1000/3000 10D/20D
GYTS-122~144 122~132 11 1 15.4 260 1000/3000 1000/3000 10D/20D
GYTA-146~216 146~216 12 0 19.8 395 1000/3000 1000/3000 10D/20D
GYTA-218~288 218~288 12 0 20.8 470 1000/3000 1000/3000 10D/20D

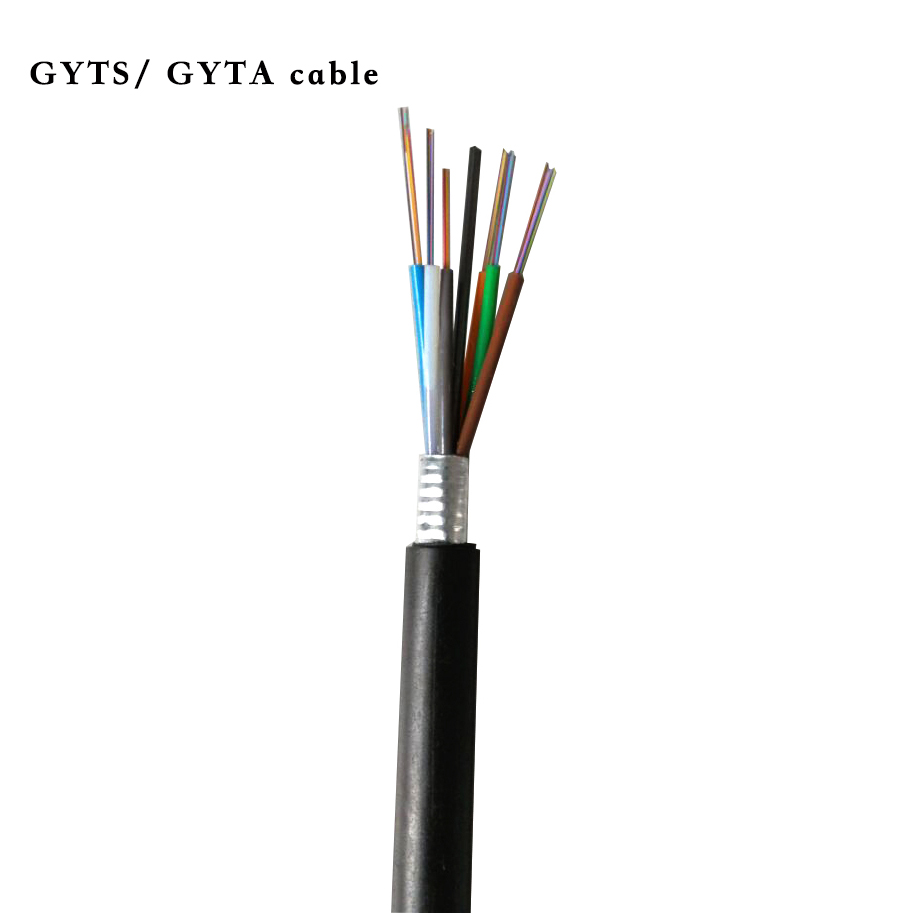

Fiber Optic Cable Construction

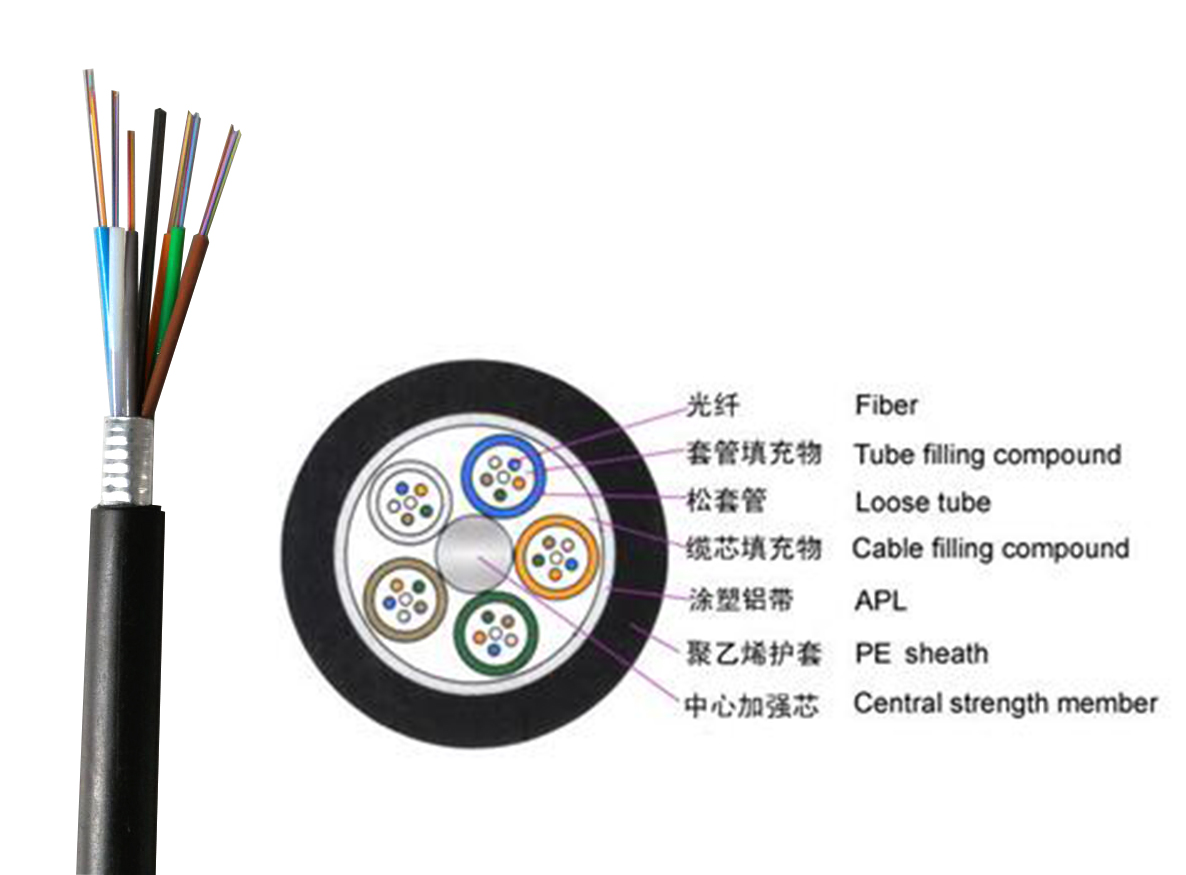

Fiber Optic Cable Cross Section
Fiber Performance Specifications
Fiber style Unit SM G652D SM G657A MM 50/125 MM 62.5/125 MM OM3-300 MM OM4-550
Condition nm 1310/1550 1310/625 850/1300 850/1300 850/1300 850/1300
Attenuation dB/km ≤0.34/0.22 ≤0.35/0.21 ≤3.0/1.0 ≤3.0/1.0 ≤3.0/1.0 ≤3.5/2.2
Dispersion 1550nm Ps/(nm*km) ≤18 ≤18 ---- ---- ---- ----
  1625nm Ps/(nm*km) ≤22 ≤22 ---- ---- ---- ----
Bandwidth 850nm MHZ.KM ----   ≥400 ≥160
  1300nm MHZ.KM ----   ≥800 ≥500
Zero dispersion wavelength nm ≥1302 ≤1322 ≥1302 ≤1322 ---- ---- ≥ 1295, ≤1320 ≥ 1295, ≤1340
Zero dispersion slope nm ≤0.091 ≤0.090 ---- ---- ---- ----
PMD Maximum Individual Fiber ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*km) ≤0.08 ≤0.1 ---- ---- ---- ----
Fibre cutoff wavelength λc nm ≥1180 ≤1330 ≥1180 ≤1330 ---- ---- ---- ----
Cable cutoff wavelength λcc nm ≤1260 ≤1260 ---- ---- ---- ----
MFD 1310nm um 9.2±0.4 9.0±0.4 ---- ---- ---- ----
  1550nm um 10.4±0.8 10.1±0.5 ---- ---- ---- ----
Numerical Aperture (NA) ---- ---- 0.200± 0.015 0.275± 0.015 0.200± 0.015 0.200± 0.015
Step (mean of bidirectional measurement) dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber length and point dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10 ≤0.10
Difference backscatter coefficient dB/km ≤0.03 ≤0.03 ≤0.08 ≤0.10 ≤0.08 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01
Core diameter um 9 9 50±1.0 62.5±2.5 50±1.0 50±1.0
Cladding diameter um 125.0±0.1 125.0±0.1 125.0±0.1 125.0±0.1 125.0±0.1 125.0±0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7 242±7 242±7 242±7
Coating/chaffinch concentrically error um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding concentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ---- ----
Applications
  • Adopted to Outdoor distribution.
  • Suitable for pipeline laying, direct burial, under ground method.
  • Long distance and local area network communication.
Fiber Identification Standard Colors
Fiber Color Identification Table
1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

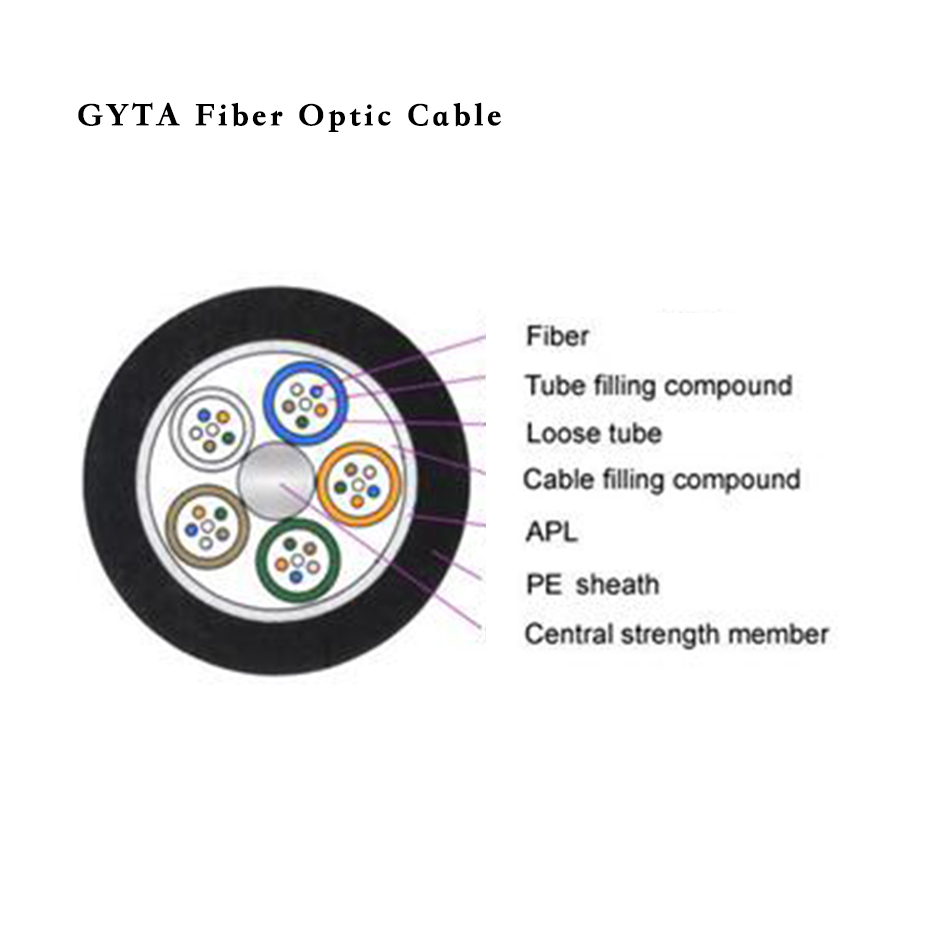

Cable Structure Details
  • The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.
  • The tubes are filled with a water-resistant filling compound.
  • A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.
  • Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
  • An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress.
  • The cable is completed with a PE sheath.
Frequently Asked Questions (FAQ)
What installation methods are suitable for this fiber optic cable?
This cable is designed for outdoor distribution and is highly suitable for pipeline laying, direct burial, and underground installation methods.
How is the cable protected against water penetration?
Watertightness is secured through multiple layers of protection: a loose tube filling compound, 100% cable core filling, and an Aluminum Polyethylene Laminate (APL) surrounding the core.
What types of optical fibers can be used in this cable?
The cable supports both Single Mode (SM G652D, G657A) and Multi Mode (MM 50/125, 62.5/125, OM3-300, OM4-550) fiber standards.
What is the function of the PE sheath on this outdoor cable?
The outer Polyethylene (PE) sheath provides critical protection against ultraviolet (UV) radiation and harsh weather conditions, ensuring long-term outdoor reliability.
What are the standard delivery reel lengths for this cable?
Standard cable reel lengths are available in configurations of 1km, 2km, 3km, and 5km.
How are the individual fibers identified within the loose tubes?
Fibers are color-coded in a standardized 12-color sequence (Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua) for quick and accurate identification during installation.
