Optical Fiber jumpers, also called fiber patch cords, link existing hardware to your structured cabling system. Fiber optic options have enjoyed significant market adoption over the past few years thanks to the unparalleled ability of glass fibers to transmit information using light.
The Fiber Optical Patch Jumpers are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration.
| Type | Standard |
| Connector type | LC |

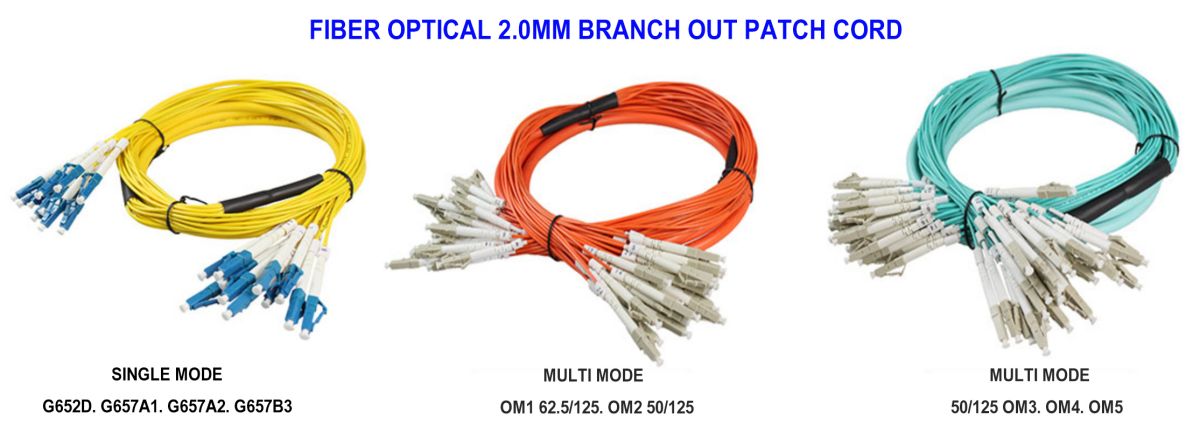

| Fiber Type | Multimode 62.5/125 OM1, 50/125 OM3 |
| Cable Type | 2 cores, 4 cores, 8 cores, 12 cores, 24 cores, 48 cores, ... |
| Sub-cable Diameter | Φ1.6mm, Φ1.8mm, Φ2.0mm, Customized |
| Cable outsheath | PVC, LSZH, OFNR |
| Cable outsheath color | Orange, Customized |
| Cable length | 1m, 3m, 5m, 10m, 20m, 50m, Customized |
| Polishing Manner | PC |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | ≥ 30dB |
| Repeatability | ±0.1dB |
| Operating temperature | -40°C to 85°C |
Q1: What are Fiber Optical Patch Jumpers used for?
A1: They link existing hardware to structured cabling systems and are typically used in indoor interconnections, optical distribution frames (ODF), fiber terminal boxes, and distribution boxes.
Q2: What connector types and configurations are available?

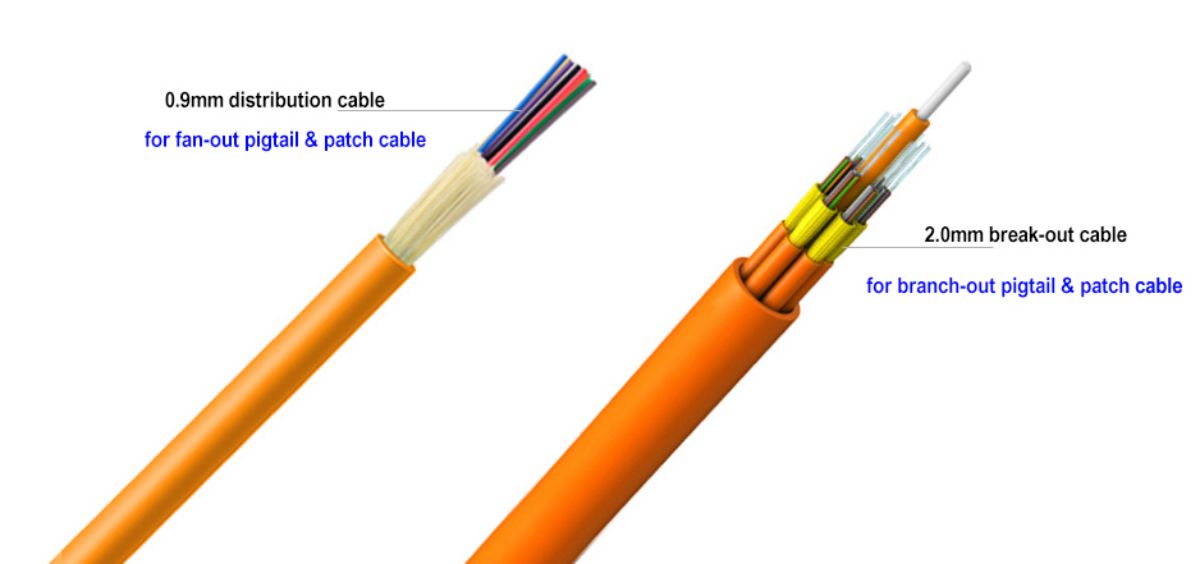

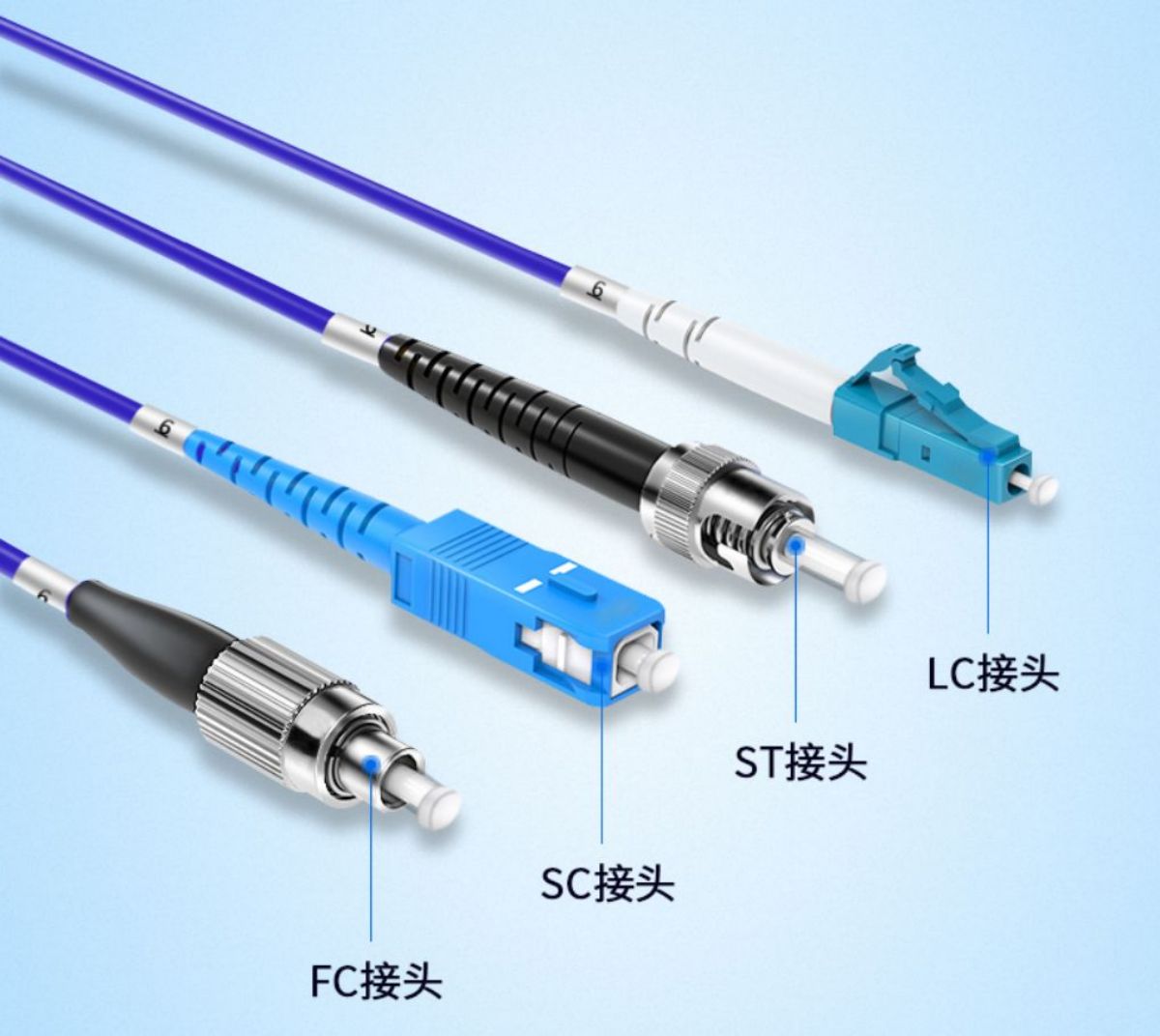

A2: The cables feature LC connectors, which are highly popular in telecom projects, and come in simplex or duplex configurations with options for branch out cables.
Q3: What fiber types and specifications are supported?
A3: They support Multimode 62.5/125 OM1 and 50/125 OM3 fiber types, featuring low insertion loss (≤ 0.3dB) and high return loss (≥ 30dB).
Q4: Can the cable length and core count be customized?
A4: Yes. Available core options include 2, 4, 8, 12, 24, 48 cores, and more. Standard lengths range from 1m to 50m, with custom lengths available upon request.
Q5: What are the typical applications for these patch jumpers?
A5: They are widely applied in FTTH, LAN, CATV & CCTV, Data Centers, Wide Area Networks (WAN), and military active device termination.
