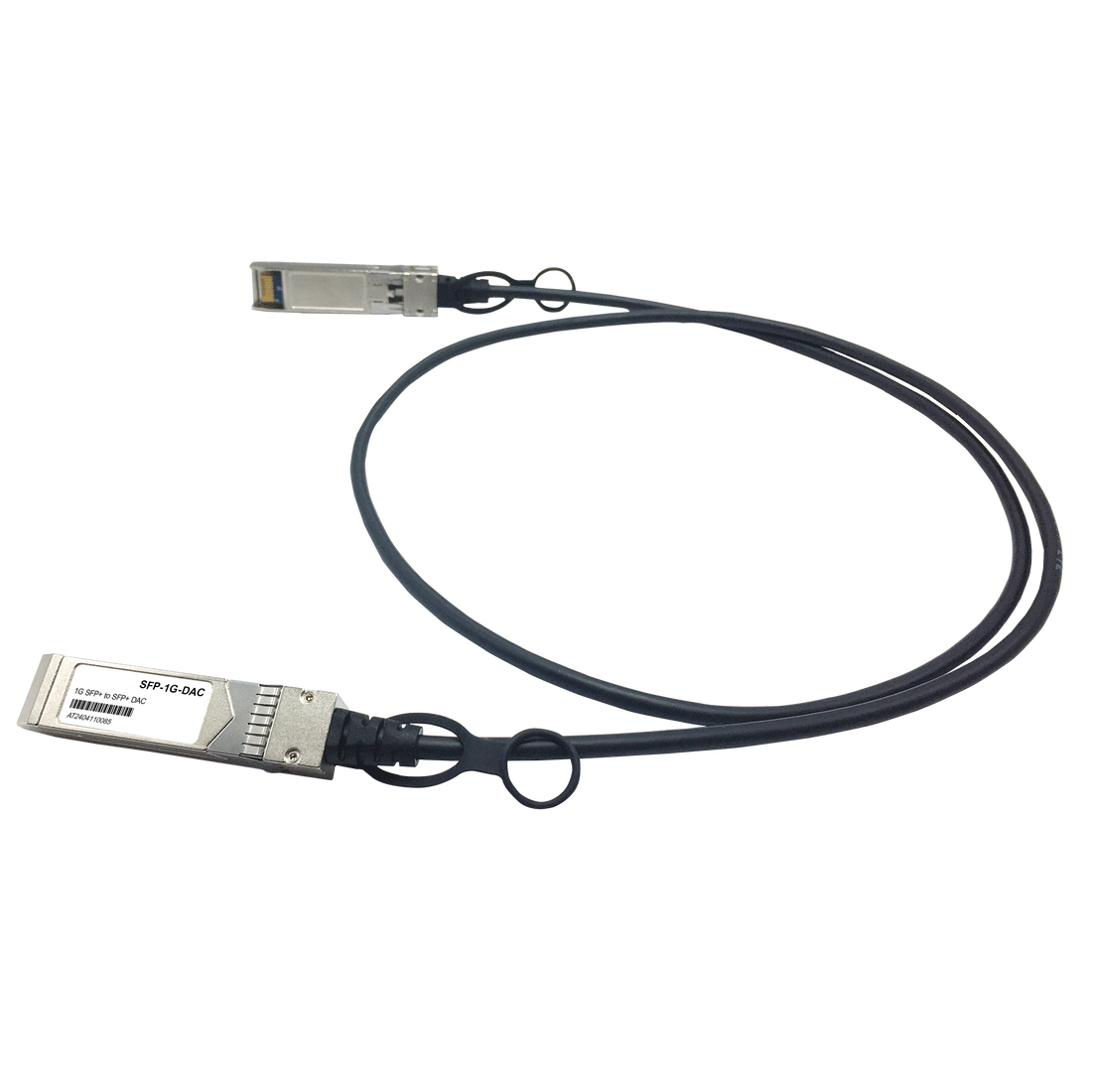

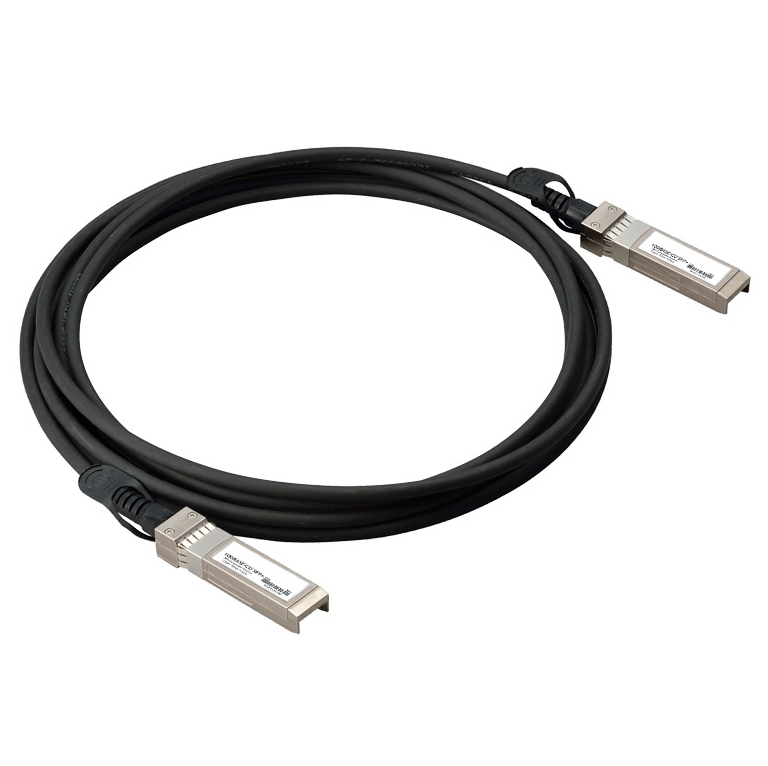

Key Features & Highlights
Supports 1G Ethernet Interoperability
Max. Power Consumption 0.1W
Minimum Bend Radius 23mm for Flexible Routing
Hot Pluggable SFP+ MSA Compliant
Low Insertion Loss and Ultra-low Crosstalk for Improved Performance
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Simplifies the Patching and Offers a Cost-effective Way for Short Links
Technical Specifications
| Part Number |
1G-DAC-xM |
| Compatible list |
Cisco, Arista, Dell, H3C, HW, Intel, HP … |
| Connector Type |
SFP to SFP |
| Max. Data Rate |
1Gbps |
| Minimum Bend Radius |
23mm |
| Wire AWG |
30AWG |
| Cable Length |
Customized |
| Jacket Material |
PVC (OFNR), LSZH |
| Cable Type |
Passive Twinax |
| Power Consumption |
≤0.1W |
| Power Supply |
3.3V |
| Operating Temperature |
0 to 70°C (32 to 158°F) |
| Protocols |
1G Ethernet |
| Warranty |
5 Years |
Frequently Asked Questions
What brands of switches are compatible with this 1G DAC cable?
This cable supports wide compatibility and is tested to work with major brands including Cisco, Arista, Dell, H3C, HW, Intel, HP, and more.
What is the power consumption of this passive twinax cable?
It features ultra-low power consumption of less than or equal to 0.1W, which helps reduce operational costs and heat generation.
Can this cable be routed through tight spaces?
Yes, with a minimum bend radius of 23mm, this cable allows for highly flexible routing and simplified patching in compact rack spaces.
What is the operating temperature range for this product?
The cable is designed to operate reliably within a standard temperature range of 0 to 70°C (32 to 158°F).
Does the cable support hot-plugging?
Yes, it is hot-pluggable and SFP+ MSA compliant, meaning you can install or replace it without powering down the host system.
What is the warranty period for this 1G SFP DAC cable?
This high-quality product is backed by a comprehensive 5-year warranty, ensuring long-term reliability and performance.
