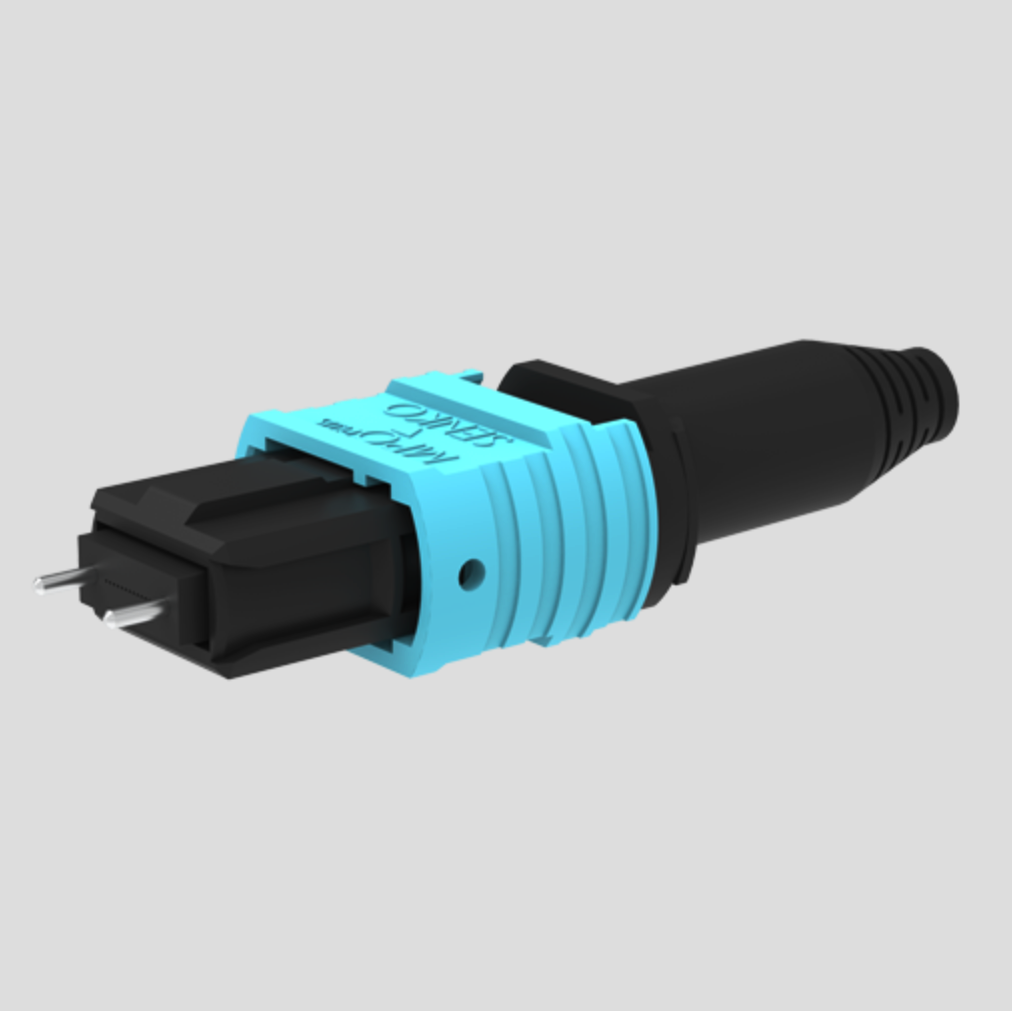

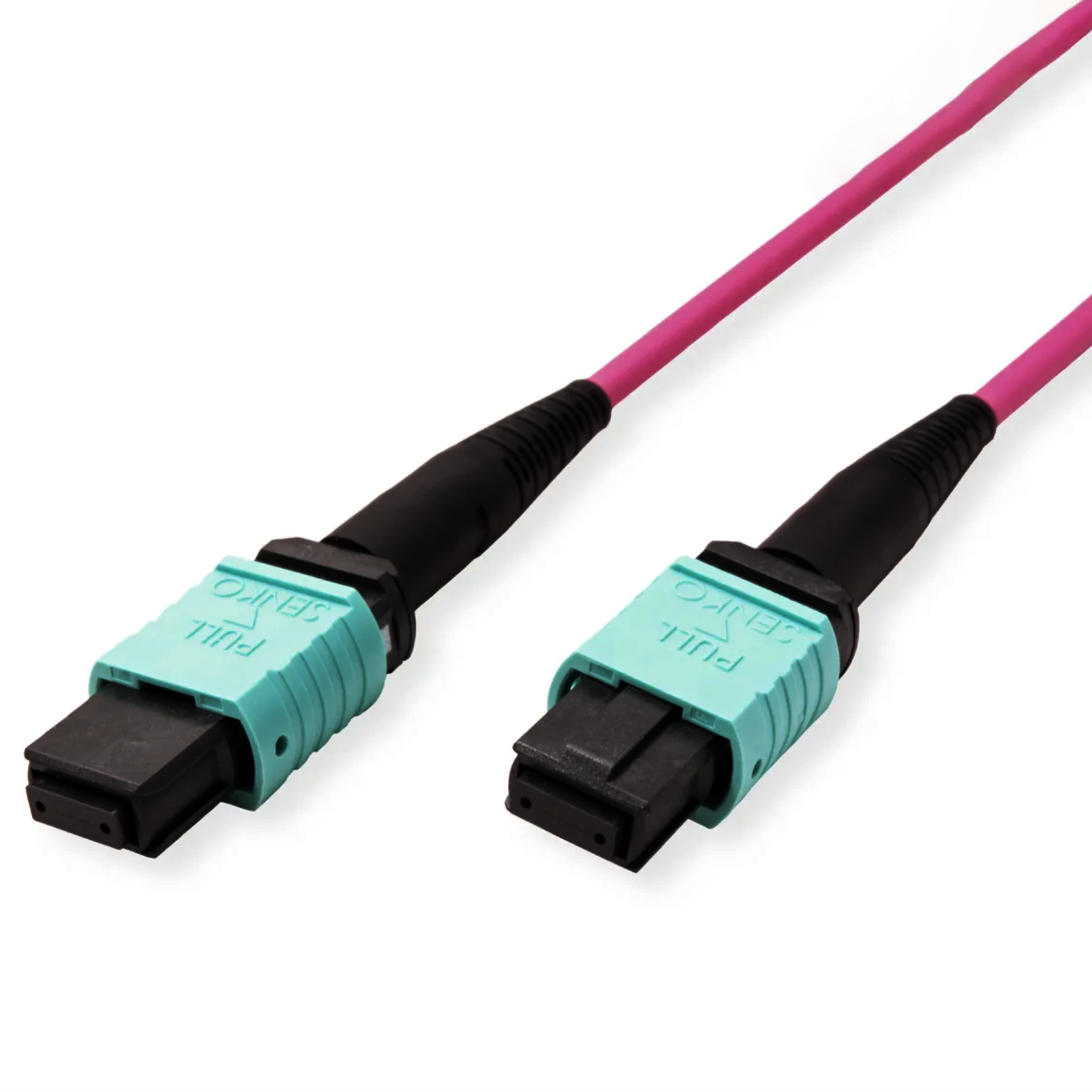

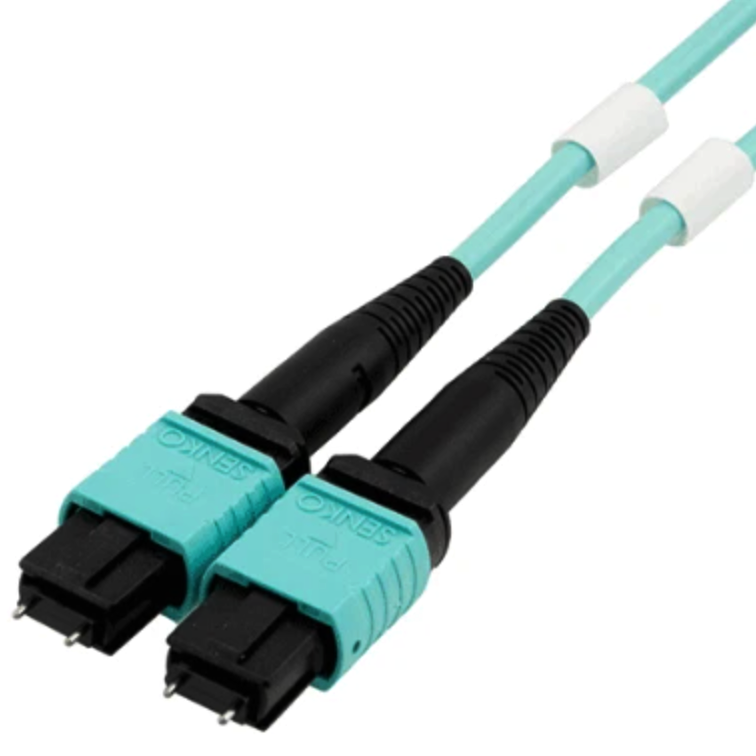

The MPO-PLUS® Premium MINI connector is tailored for high-density scenarios where space is at a premium. Its compact design and optional pull-tab facilitate swift insertion and removal. Offering gender change capability without requiring the connector housing to be opened, it’s exceptionally adaptable for various applications.
Equipped with industry-leading Low Loss ferrules featuring a 20N spring for 16, 24, and 32 fiber versions, the MPO Mini sets a new standard. Also available is a GR-1435 qualified version. Polarity changeable option available for Multimode fibers.
| Parameters | Single-mode | Multimode | ||
|---|---|---|---|---|
| APC | MM | |||
| Low Loss | Standard | Low Loss | Standard | |

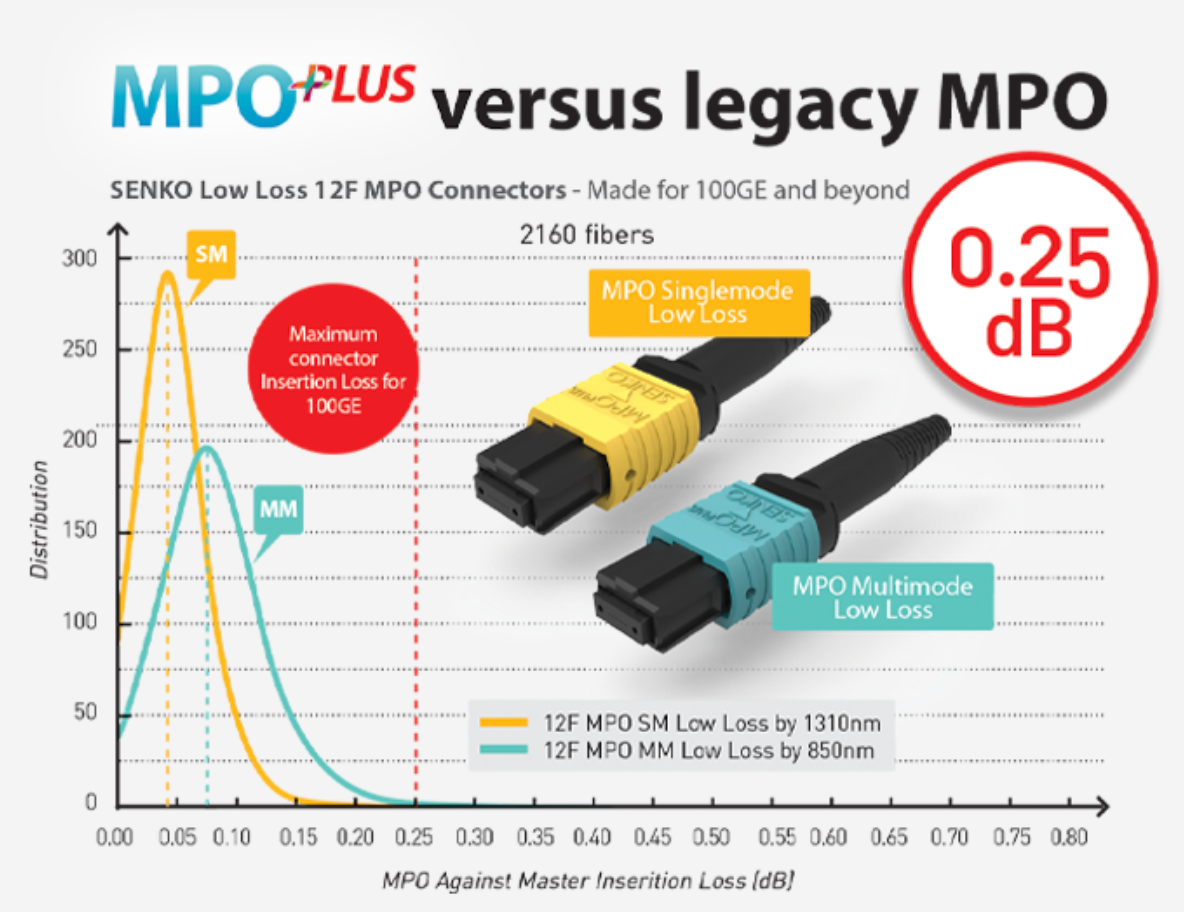

| Typical Insertion Loss (dB) 12-fiber | 0.10 | 0.20 | 0.08 | 0.15 |
| Max Insertion Loss (dB) 12-fiber | 0.25 | 0.70 | 0.25 | 0.50 |
| Typical Insertion Loss (dB) 24-fiber | 0.15 | 0.25 | 0.15 | 0.20 |
| Max Insertion Loss (dB) 24-fiber | 0.35 | 1.00 | 0.35 | 0.50 |
| Typical Insertion Loss (dB) 16-fiber | 0.15 | N/A | 0.15 | 0.20 |
| Max Insertion Loss (dB) 16-fiber | 0.35 | N/A | 0.35 | 0.60 |
| Typical Insertion Loss (dB) 32-fiber | N/A | N/A | N/A | 0.25 |
| Max Insertion Loss (dB) 32-fiber | N/A | N/A | N/A | 0.60 |
| Typical Return Loss (dB) | ≥60 | ≥25 | ||
| Operating Temperature (°C) | -40 to +75 | |||
| Durability | 500 mating cycles per TIA-568.3 | |||
