• MPO MTP Optical Fiber Loopback is used for network diagnostics, testing system configurations, and device burn in. Looping back the signal allows for testing the optical network.
• MPO MTP Optical Fiber Loopbacks are offered with 8, 12, and 24 fiber options in a compact footprint.
• MPO MTP Optical Fiber Loopbacks are offered with straight, crossed, or QSFP pin outs.
• MPO MTP Optical Fiber Loopbacks provide a looped signal to test the transmit and receiving functions.
• MPO MTP Optical Fiber Loopbacks are used widely within testing environment especially within parallel optics 40/100G networks.
• MPO MTP Optical Fiber Loopbacks allow verification and testing of transceivers featuring MTP interface – 40GBASE-SR4 QSFP+ or 100GBASE-SR4 devices.
• MPO MTP Optical Fiber Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MTP transceivers interfaces.

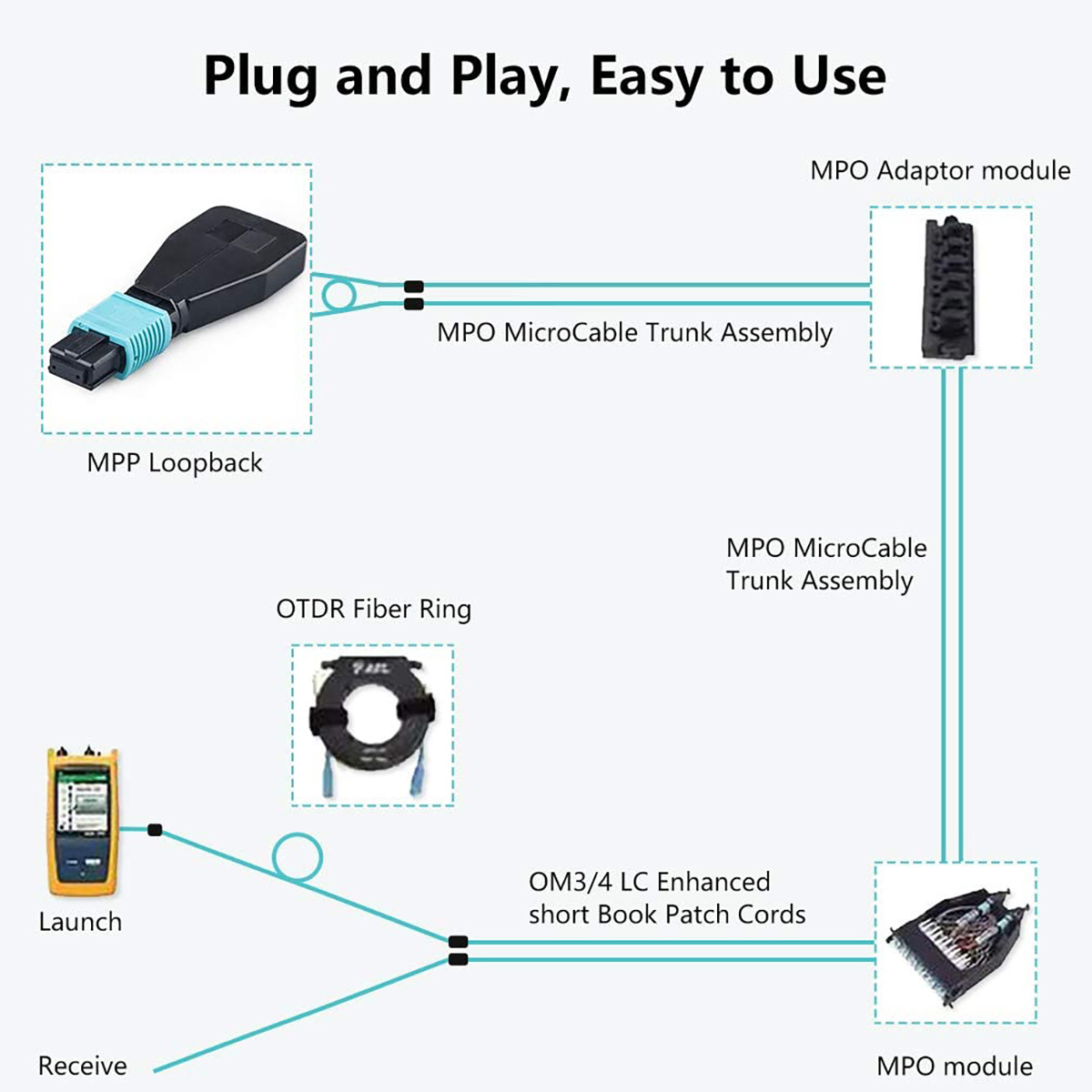

• MPO MTP Optical Fiber Loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MTP trunks/patch leads.

Key Features

• UPC or APC polish is available
• Push-Pull MPO design
• Available in a wide variety of wiring configurations and fiber types
• RoHS compliant
• Customized attenuation available
• 8, 12, 24 fibers optional is available
• Available with or without Pull tabs
• Compact and portable
• Great for troubleshooting fiber links/interfaces and ensuring that the lines aren't broken
• It is convenient, compact and easy to test the QSFP+ Transceiver

Specifications
