Supports speeds up to 40 GbE/100 GbE. Push/pull tab connector installs/removes with one hand 8, 12, 24-fibers MTP/MPO connectors. Single mode and Multimode are available. High size precision. Fast and easy connection. Lightweight and durable plastic housings. One-piece coupler design maximizes coupling strength while minimizing debris generation. Color-coded, allowing for easy fiber mode identification. High wearable. Good repeatability.
Send Inquiry

Product Description

Key Features
  • MPO optic fiber adapters are made in both die-cast and industry compliant to insure intermateability with industry standard assemblies and connectors.
  • MPO optic fiber adapters are able to meet the challenges and mechanical requirements of highly dense system designs while maintaining industry standard footprints.
  • MPO optic fiber adapters use a two diameter 0.7mm guide pin holes on the MPO connector core end surface to connect precisely with the guide pin.
  • The connectors are Key-Up to Key-Up.
  • MPO optic fiber adapter works for any MPO/MTP connector from 4 fiber to 72 fibers.
  • Supports speeds up to 40 GbE/100 GbE.
  • Push/pull tab connector installs/removes with one hand.
Performance Details
  • 8, 12, 24-fibers MTP/MPO connectors.
  • Single mode and Multimode are available.
  • High size precision.
  • Fast and easy connection.
Technical Specifications
Connector Type MPO/MTP Body Style Simplex
Fiber Mode Multimode, Singlemode Body Color Single mode UPC: black
Single mode APC: green
Multimode: black
OM3: aqua
OM4: violet
Insertion Loss ≤0.3dB Mating Durability 500 times
Flange With flange, Without flange Key Orientation Aligned (Key Up – Key Up)

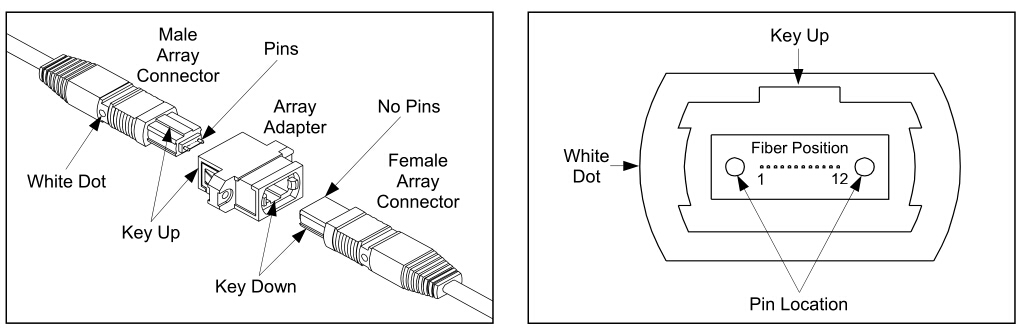

MPO optic fiber adapter
Applications
Parallel interconnection
Fiber optic patch panel
10G/40G/100G networks
MPO MTP data center
Active optical cable
Material & Durability
  • Lightweight and durable plastic housings.
  • One-piece coupler design maximizes coupling strength while minimizing debris generation.
  • Color-coded, allowing for easy fiber mode identification.
  • High wearable.
  • Good repeatability.
Environmental Specifications
Operating temperature -20°C to 70°C
Storage temperature -40°C to 85°C
Humidity 95%RH
Frequently Asked Questions
Q: What types of fiber counts are supported by these MPO optic fiber adapters?
These MPO optic fiber adapters work for any MPO/MTP connector ranging from 4 fibers up to 72 fibers, including typical 8, 12, and 24-fiber configurations.
Q: What network speeds are compatible with these adapters?
They support high-speed data transmission speeds of up to 40 GbE and 100 GbE.
Q: What are the insertion loss values and mating durability for these adapters?
The adapters feature an insertion loss of ≤0.3dB and support a mating durability of up to 500 times.
Q: What environmental operating and storage temperatures do they support?
The operating temperature range is -20°C to 70°C, and the storage temperature range is -40°C to 85°C, with a supported humidity of up to 95%RH.
Q: How are the different fiber modes identified on these adapters?
They are color-coded for easy fiber mode identification. Specifically, Single mode UPC is black, Single mode APC is green, Multimode is black, OM3 is aqua, and OM4 is violet.
Q: What is the advantage of the one-piece coupler design used in these adapters?
The one-piece coupler design maximizes physical coupling strength while minimizing the generation of debris during connection.
