Wholesale High Density 144fo MPO Universal Connectivity Platform Patch Panel Manufacturer, Quotes

• Ultra-high density wiring application scenario. • Standard 19-inch width. • Ultra high density 1∪144 core. • Double rail design for easy installation and maintenance. • Lightweight ABS material MPO module box. • Spray surface treatment process. • Pluggable MPO Cassette, smart but delicated, speed deployment and improve flexibility and manager ability for lower installation cost. • Comprehensive accessory kit for cable entry and fiber management. • Full assembly (loaded) or empty panel.

Send Inquiry

Product Description

Features & Overview

Rack mounted optical distribution frame (ODF) is the device that terminates between the optical cables and the optical communication equipments, with the function of splicing, termination, storing and patching of optical cables.

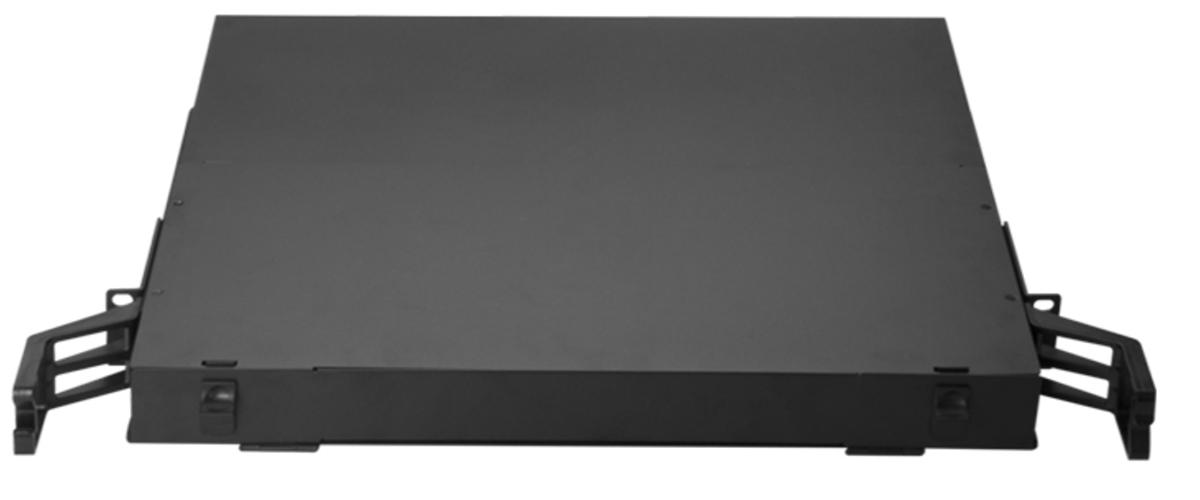

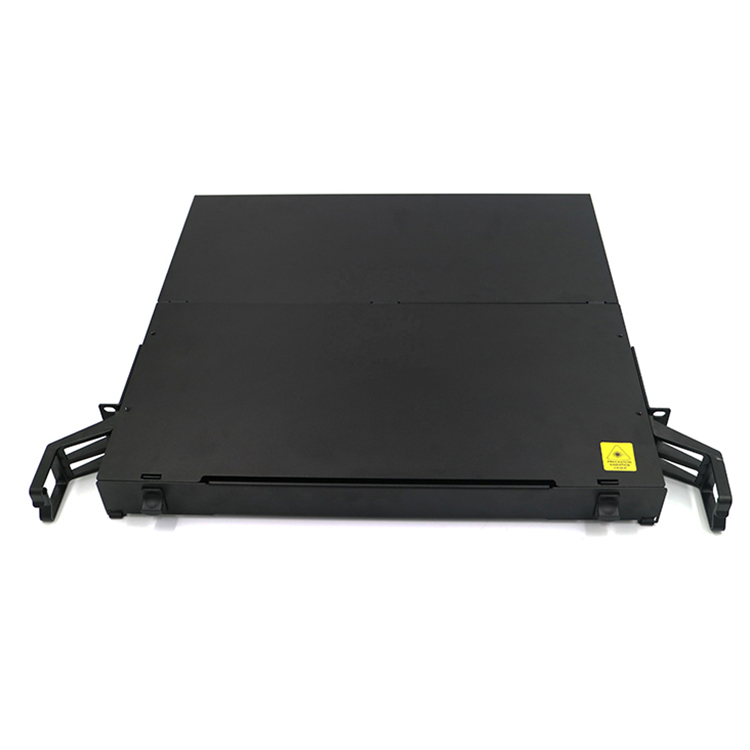

This special patch panel is an MPO pre-terminated ultra-high-density wiring box, 19-inch, 1U height.

It is special design for data center which each patch panel can install up to 144 cores of LC.

It can be used in high-density wiring applications such as computer centers, computer rooms, and databases.

The front and rear removable top cover, pull-out double guide, detachable front bezel, ABS lightweight module box and other technical applications make it easy to use in high-density scenes whether it is in the cable or cable.

This patch panel has a total of E-layer trays, each with independent aluminum guide rails, and the sliding distance is 110mm.

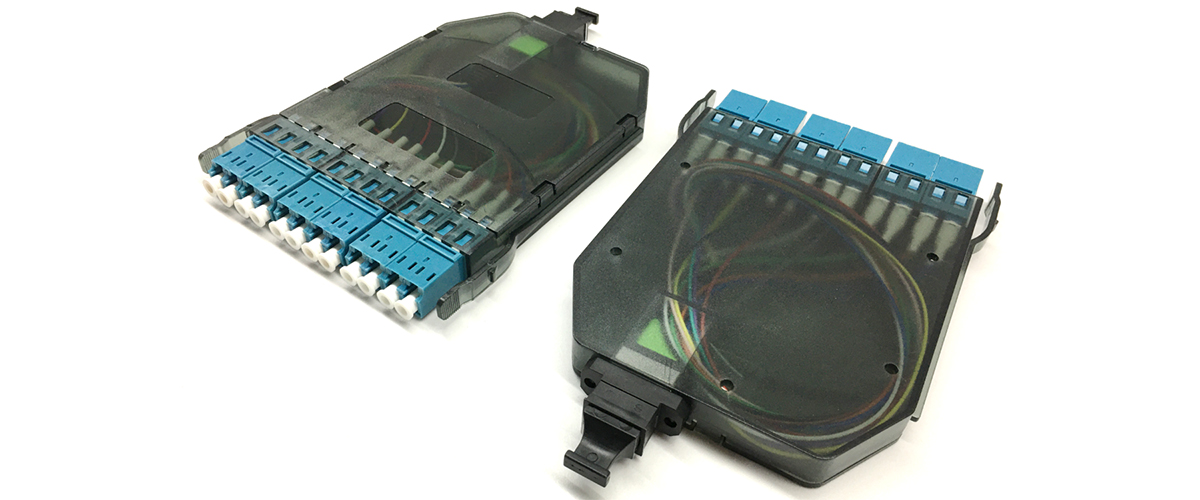

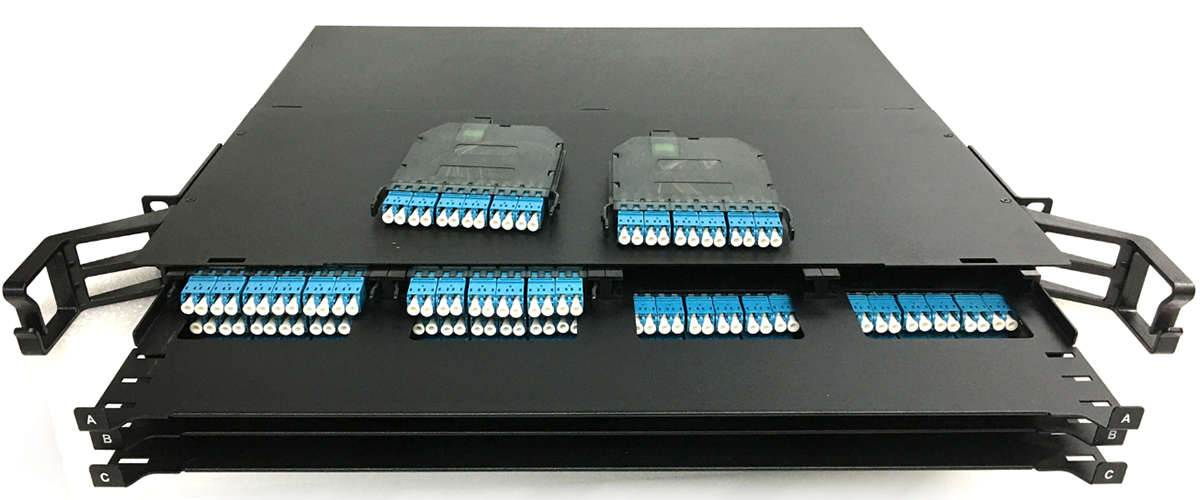

Four MPO module boxes are installed on each tray, and each module box is installed with 6 DLCs and 12 cores.

Each module box has a separate ABS rail for easy sliding installation without restrictions.

Ultra-high density wiring application scenario, featuring standard 19-inch width and ultra high density 1U 144 core.

Double rail design for easy installation and maintenance with lightweight ABS material MPO module boxes.

High quality spray surface treatment process.

Pluggable MPO Cassette, smart but delicate, speed deployment and improve flexibility and manager ability for lower installation cost.

Comprehensive accessory kit for cable entry and fiber management, available in full assembly (loaded) or empty panel.

Ordering Information

P/N	Capacity	Size
KCO-PP-MPO-144-1U	Max 144fo	482.6x455x88mm
KCO-PP-MPO-288-1U	Max 288fo	482.6x455x44mm

Technical Specifications

Execution Standard YD/T 778 optical distribution frame

Operating Temperature -5°C ~ +40°C

Storage Temperature -25°C ~ +55°C

Salt Spray Experiment 72 hours

Relative Humidity ≤95% (at +40°C)

Atmospheric Pressure 76-106kpa

Insertion Loss UPC ≤0.2dB; APC ≤0.3dB

Return Loss UPC ≥50dB; APC ≥60dB

Insertion Durability ≥1000 times

Product Gallery

Frequently Asked Questions

What is the primary function of this rack-mounted ODF?

This rack-mounted optical distribution frame (ODF) serves as a termination device between optical cables and communication equipment. It performs essential functions including splicing, termination, storage, and patching of optical cables.

What is the capacity and density configuration of this patch panel?

This is an MPO pre-terminated ultra-high-density 19-inch 1U height wiring box. It is specially designed for data centers, capable of installing up to 144 cores of LC interfaces.

What makes the trays and module boxes easy to install and maintain?

The design features a double-rail mechanism with independent aluminum guide rails for each tray (sliding distance of 110mm). Additionally, each lightweight ABS MPO module box has a separate ABS rail for smooth, unrestricted sliding installation.

Which standards and environmental requirements does this product meet?

It meets the YD/T 778 optical distribution frame standard. It is designed to operate in temperatures ranging from -5°C to +40°C, tolerate relative humidity up to 95% (at +40°C), and withstand a 72-hour salt spray experiment.

What are the optical performance values for insertion loss and return loss?

The insertion loss is ≤0.2dB for UPC and ≤0.3dB for APC connectors. The return loss is ≥50dB for UPC and ≥60dB for APC connectors, with an insertion durability of at least 1,000 times.

In what scenarios is this patch panel typically applied?

It is ideal for high-density wiring scenarios such as data centers, computer centers, processing rooms, and databases where speed of deployment, flexibility, and lower installation cost are required.
