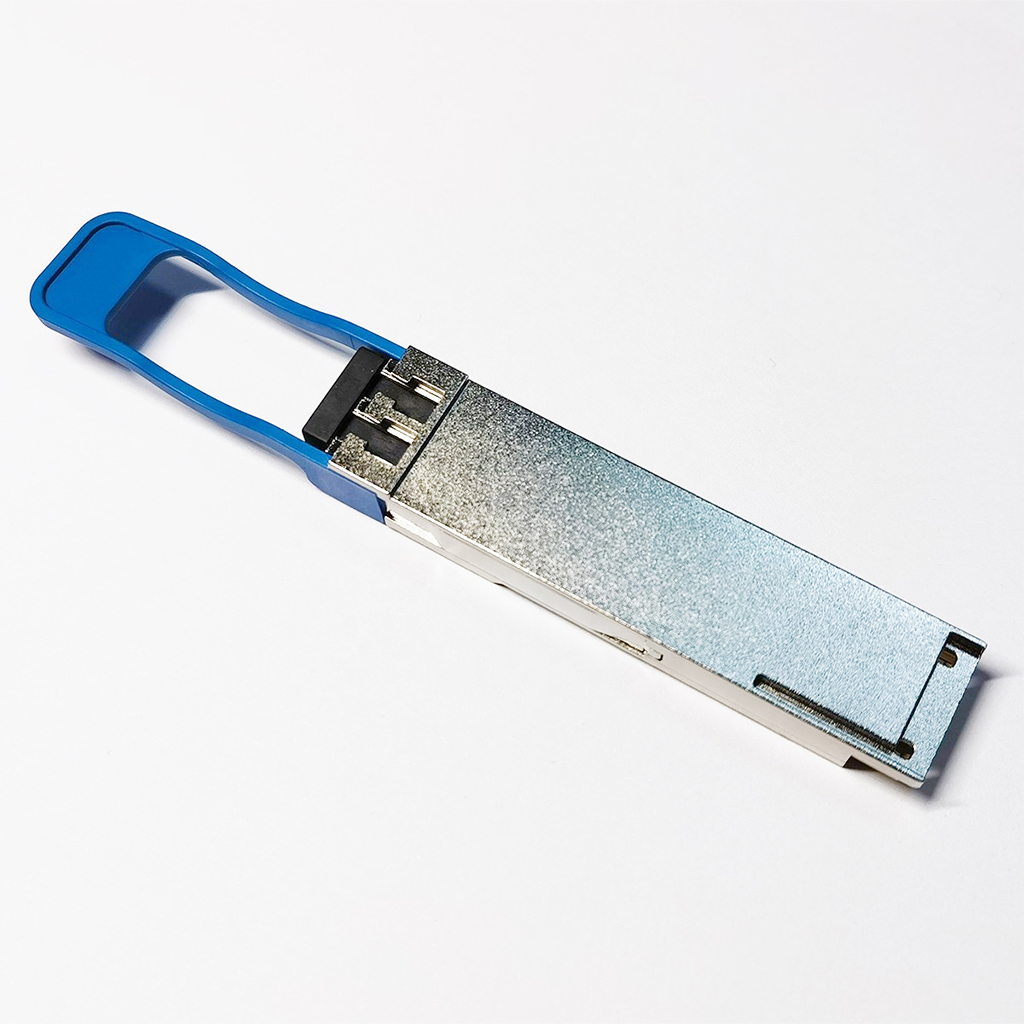

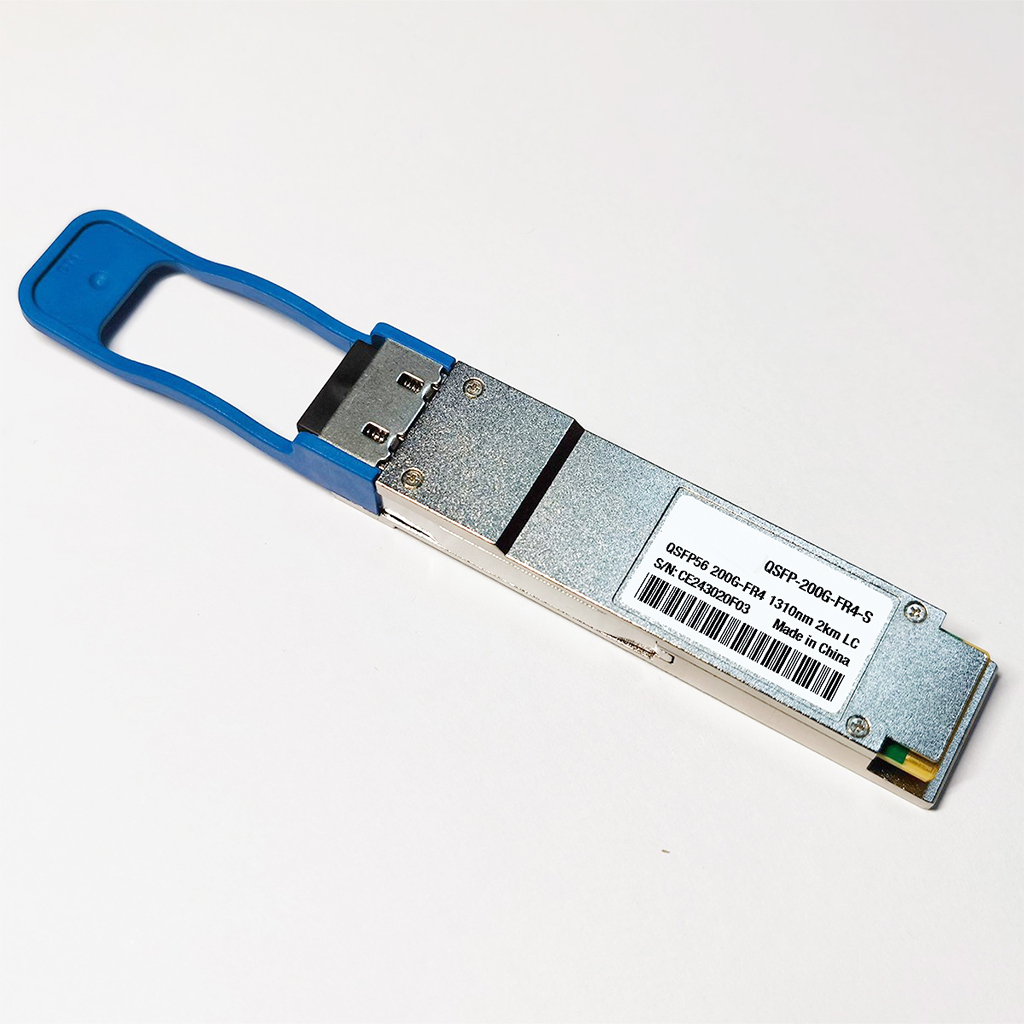

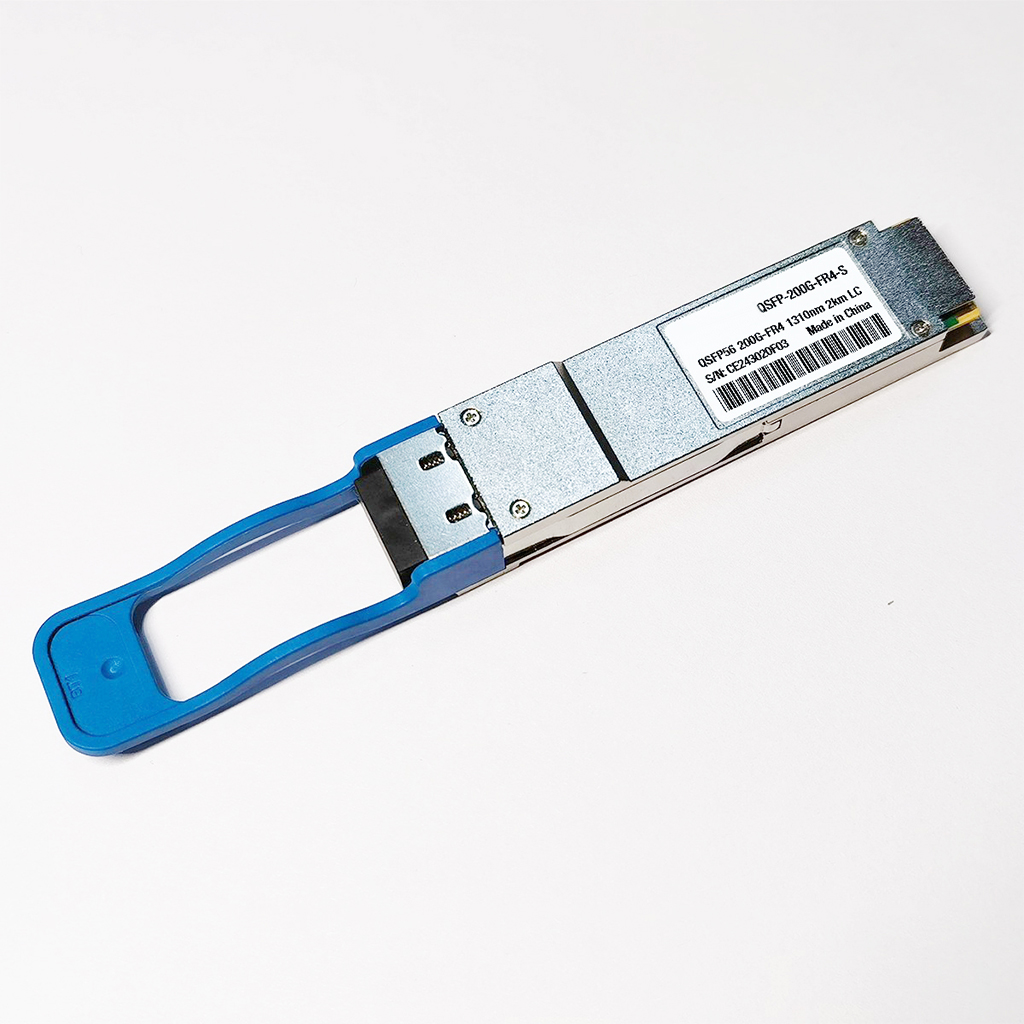

The 200G QSFP-200G-FR4-S QSFP56 FR4 Fiber Optic Transceiver is designed to transmit and receive optical data links 50 Gb/s bit rate per channel with PAM4 modulation format via up to 2km single mode fiber.
The 200G QSFP-200G-FR4-S QSFP56 FR4 Fiber Optic Transceiver Modules are several types designed to meet different network requirements.
The 200G QSFP-200G-FR4-S QSFP56 FR4 Fiber Optic Transceiver Modules are designed for high-speed, short-range data transmission. These modules use 8 lanes of multimode fiber at a rate of 25Gbps per lane, over a wavelength of 850nm, to achieve 200Gbps.
The 200G QSFP56 stands out due to its high-density design and superior performance.
The 200G QSFP-200G-FR4-S QSFP56 FR4 Fiber Optic transceiver modules support an electrical interface that employs a high-speed differential signaling technique. This advanced method minimizes electromagnetic interference, ensuring the data's integrity over the interface.
It is hot pluggable transceiver with QSFP56 package. The 200G QSFP-200G-FR4-S QSFP56 FR4 fiber optic module comprises high performance LD PIN DSP etc.
| Parameter | Specification |
|---|---|
| Cisco Compatible | QSFP-200G-FR4-S |
| Form Factor | QSFP56 |
| Max Data Rate | 200Gbps (4x50Gbps) |
| Wavelength | 1310nm |
| Distance | 2km |
| Connector | Duplex LC |
| Fiber Type | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| DDM/DOM | Supported |
| TX Power | -4.2~4.7dBm |
| Mini Receiver Power | -8.2dBm |
| Temperature Range | 0 to 70°C |
| Warranty | 1 year |
Comprehensive Testing Increases Reliability: Qualified through a rigorous process with advanced equipment to ensure you get the high quality and reliable optics.
Tested in Host Devices for Proven Interoperability: Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.
Enable Seamless Connectivity for Your Network: Reconfiguring the transceiver to work with different brands.
The transceiver supports optical data links via single mode fiber (SMF) for distances up to 2km.
It utilizes the PAM4 modulation format, operating at a 50 Gb/s bit rate per channel.
Yes, it features a hot-pluggable design with a standard QSFP56 package format for ease of installation and maintenance.
It employs a high-speed differential signaling technique designed to minimize electromagnetic interference, maintaining data integrity over the interface.
The module is ideal for 200GBASE-FR4 Ethernet, switch and router connections, data centers, and various other 200G interconnect setups.
Each module is qualified through rigorous equipment testing and quality tested directly in targeted host devices to guarantee seamless interoperability and reconfigurability across different brands.
