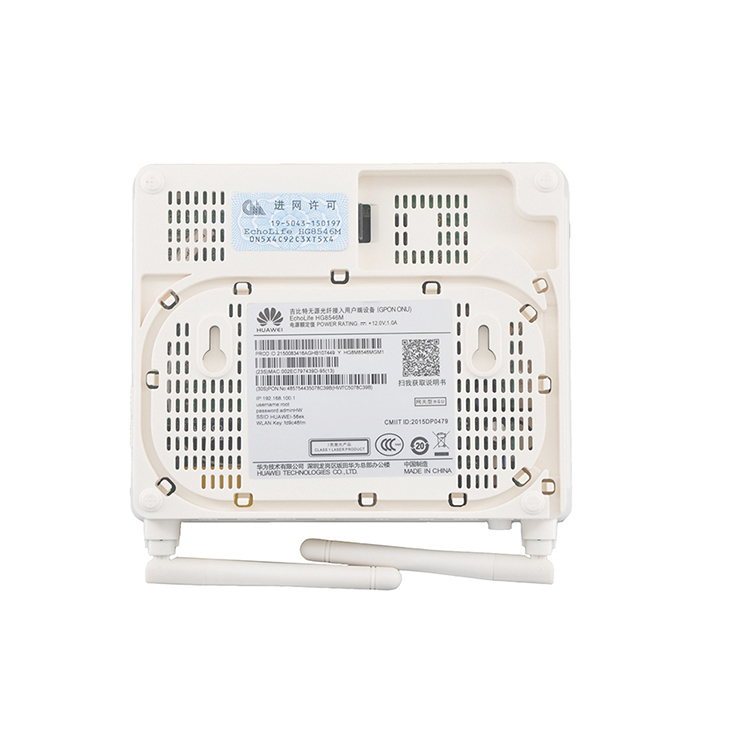

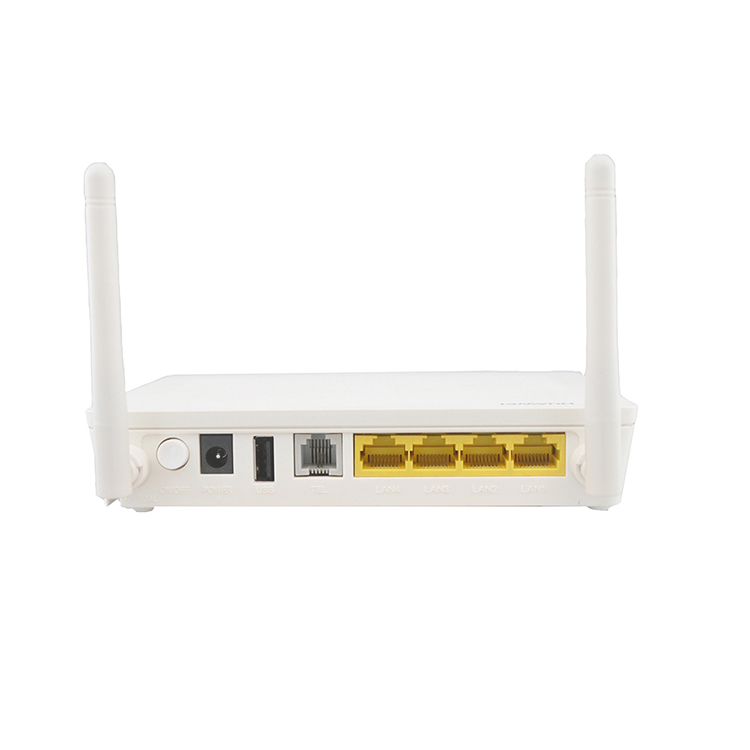

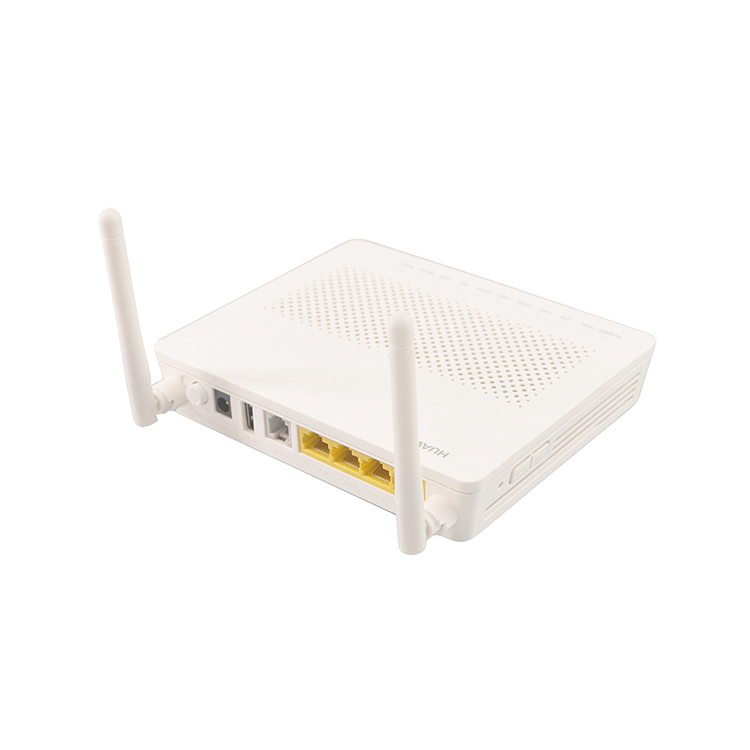

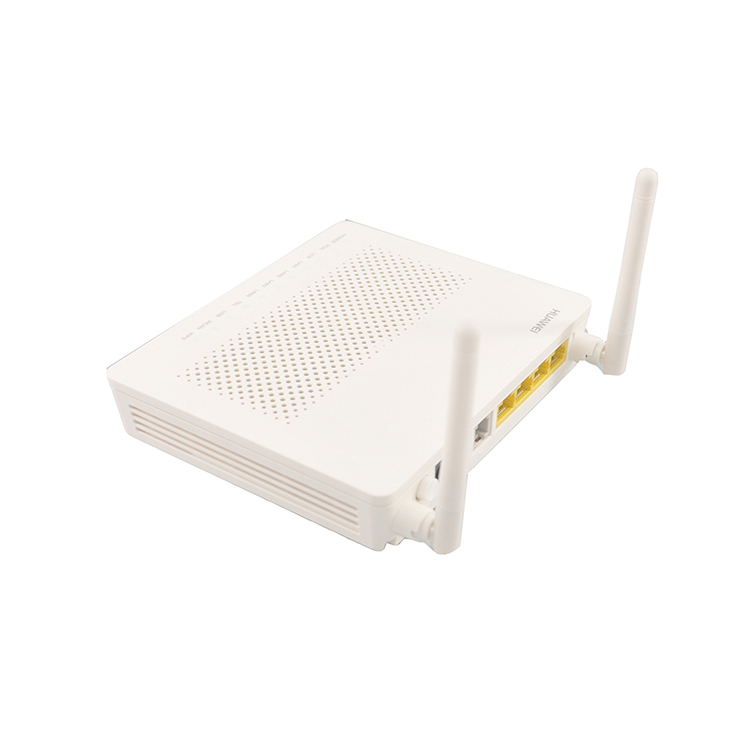

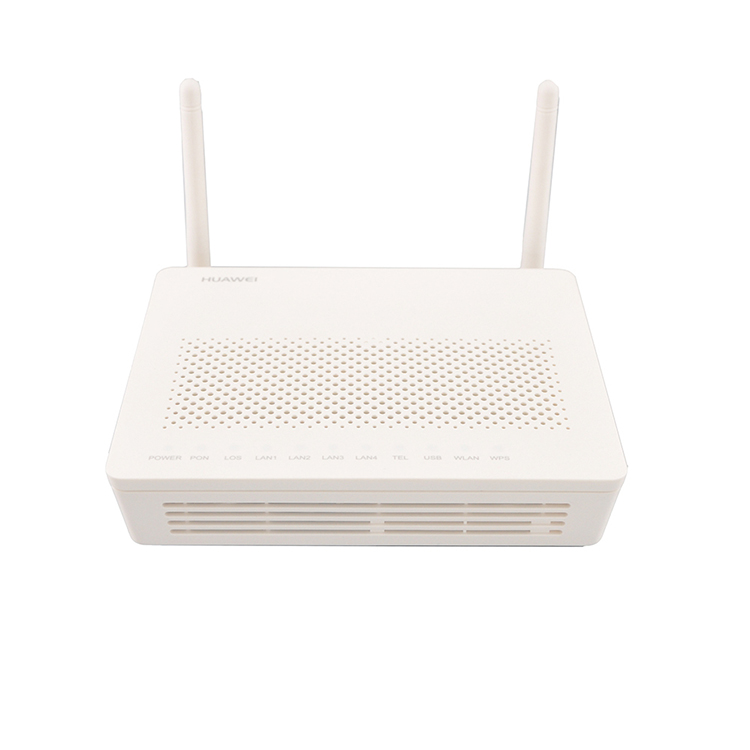

ODM FTTH fiber optic network router Huawei HG8546M GPON ONU 4LAN 1 Voice WIFI 2 Antenna GPON ONU Manufacturer, Manufacturers
The EchoLife HG8546M, an optical network unit (ONU), is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The H8546M provides 1* POTS ports, 1*GE+3* FE auto-adapting Ethernet ports, and 2* Wi-Fi port. The H8546M features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. The H8546M provides a perfect terminal solution and future oriented service supporting capabilities for FTTH deployment.
Local management using Web and remote management using TR069 and OMCI
Optical power monitoring
802.1ag Ethernet OAM
Loop-line test of POTS ports, call emulation and PPPoE dialup emulation
GPON Features
Class B+ optical module
Security authentication mode: SN, password or SN+password
Upstream/downstream FEC
Routing & Multicast
NAT function support
Internet, IPTV and VoIP services automatically bound to ONT ports
Virtual server, port trigger, DMZ, and DDNS
IGMP V2&V3 snooping/IGMP proxy
Reliability & Wi-Fi
Dual systems for software protection
Type B protection and rogue ONT detection
Lithium battery backup and backup battery monitoring
802.11b/g/n Wi-Fi certified by the Wi-Fi Alliance
SIP and H.248 protocols for voice features
Physical & Technical Specifications
Dimensions (W x D x H)
250 x 185 x 35 mm
Port Interface
1POTS + 1GE + 3FE + 1USB + 1Wi-Fi
Average Power Consumption
8W
Operating Environment
Temperature: 0°C to +40°C; Humidity: 5%–95%, non-condensing
Power Supply Parameters
Adapter Input
100–240 VAC, 50–60Hz
Adapter Output
11–14 VDC, 1A
Weight
About 500g (including the power adapter)
Frequently Asked Questions (FAQ)
Which ONT models support dual-band (2.4G and 5G) Wi-Fi?
Models such as the HS8145V, HS8145V5, HG8546V5, and EG8145V5 support both 2.4G and 5G Wi-Fi bands, offering higher bandwidth and improved wireless connectivity.
Do these devices come with English firmware?
Yes, all the listed ONT models in this portfolio are equipped with English firmware interfaces for local and global network management.
What types of power plugs are compatible with these devices?
The devices support universal adapter interfaces compatible with EU, AU, AM, and UK power plug standards.
What are the security authentication mechanisms supported by these GPON ONTs?
These units support standard secure GPON authentication modes, including Serial Number (SN) verification, password verification, or combined SN + password authentication.
How are these ONT terminals managed and monitored?
They can be managed locally via Web-based interfaces, or remotely using industry-standard protocols including TR069 and OMCI. They also feature optical power monitoring and Ethernet OAM capabilities.
