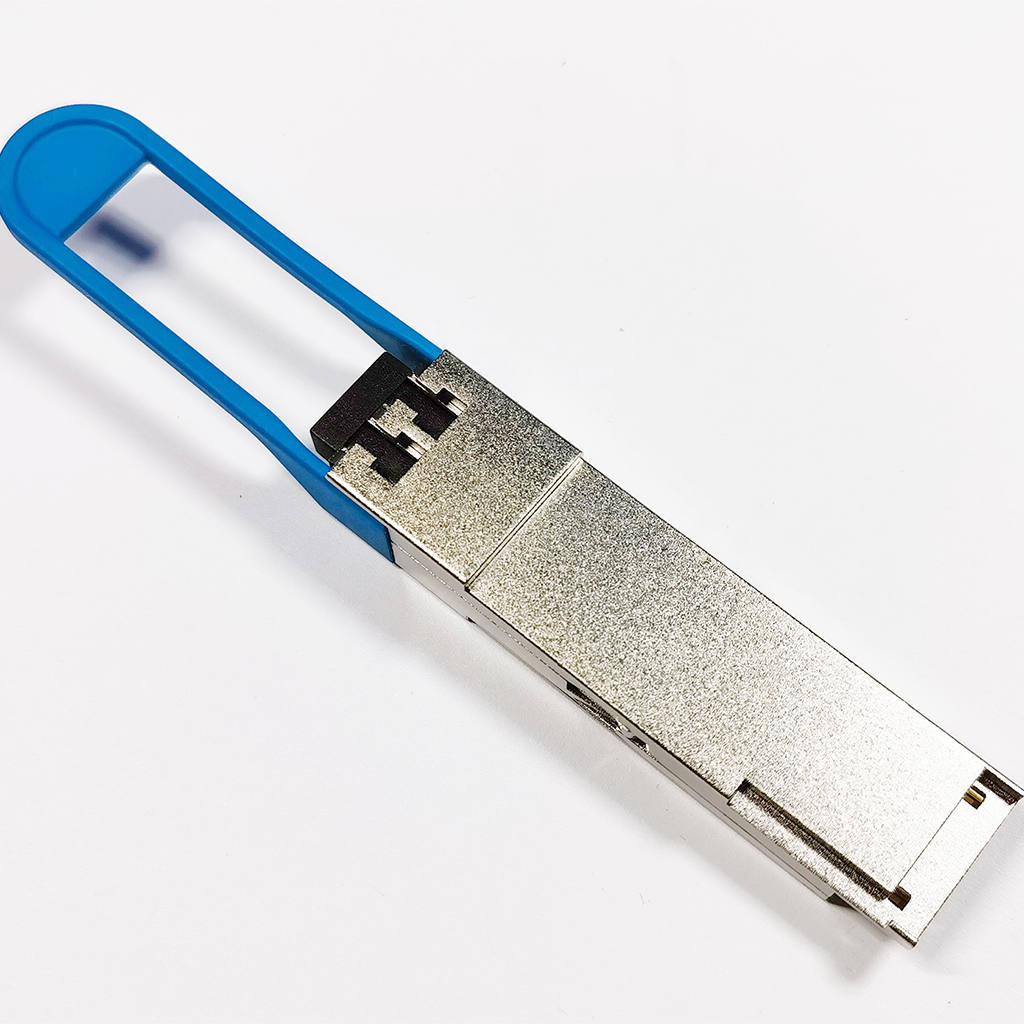

QSFP56 200G LR4 S fiber optic transceiver supports up to 10km link lengths over single-mode fiber (SMF) via an LC duplex connector. This QSFP56 200G LR4 S fiber optic transceiver is compliant with SFF-8661 and IEEE 802.3bs standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable for 200G Ethernet, Data Center, and 5G backhaul.
Specifications
Cisco Compatible
QSFP-200G-LR4-S
Form Factor
QSFP56
Max Data Rate
200Gbps
Wavelength
1310nm
Distance
10Km
Connector
Duplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
DDM/DOM
Supported
TX Power
-3.4~5.3dBm
Mini Receiver Power
-9.7dBm
Temperature Range
0 to 70°C
Warranty
3 years
Key Features
200G Connectivity for Data Center and Telecom
With high-density and speed, the transceiver help you quickly ramp up to 200G transmission.
Enable Seamless Connectivity for Your Network
Reconfiguring the transceiver to work with different brands.
Tested in Host Devices for Proven Interoperability
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.
Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipment to ensure you get the high quality and reliable optics.
Applications
Data Center 200GE 10km SMF links
5G backhaul
Switch/Router interconnections
Frequently Asked Questions
What is the maximum transmission distance of this transceiver?
This QSFP56 200G LR4 S optical transceiver supports link lengths of up to 10km over single-mode fiber (SMF).
What interface and media type does this optical module use?
It uses a Duplex LC connector and operates over Single-Mode Fiber (SMF) at a wavelength of 1310nm.
Does this module support real-time parameter monitoring?
Yes, it features built-in Digital Diagnostics Monitoring (DDM), which allows real-time access to operating parameters.
What standards are compliant with this transceiver?
The transceiver is fully compliant with SFF-8661 and IEEE 802.3bs standards.
What are the main application scenarios for this module?
It is ideal for 200G Ethernet transmissions, data center networks, 5G backhaul, and high-density switch/router interconnections.
What is the warranty period for this product?
This optical transceiver comes with a 3-year warranty and operates within a temperature range of 0 to 70°C.
