KOCENT OPTEC
1 / 4
| Cable Length (Unit: m) | Tolerance (Unit: cm) |
|---|---|
| < 1.0 | +5/-0 |
| 1.0 ~ 4.5 | +15/-0 |
| 5.0 ~ 14.5 | +30/-0 |
| ≥ 15.0 | +2%/-0 |

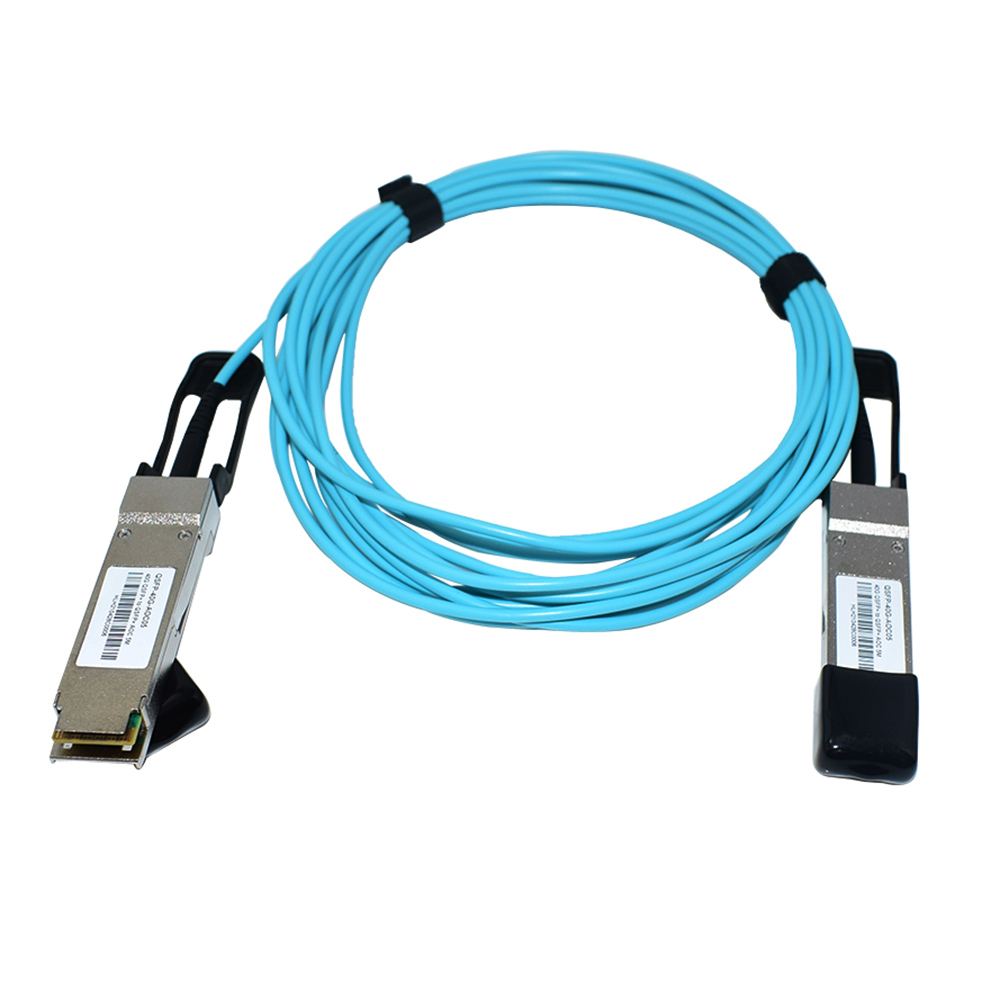

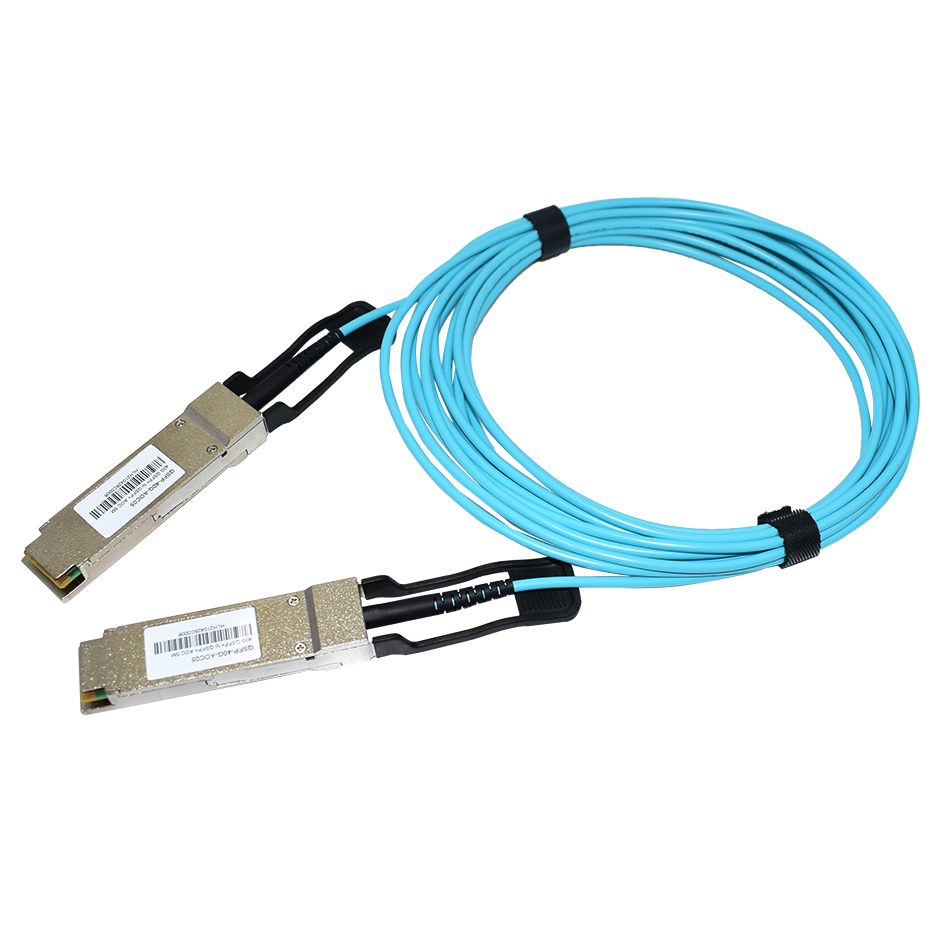

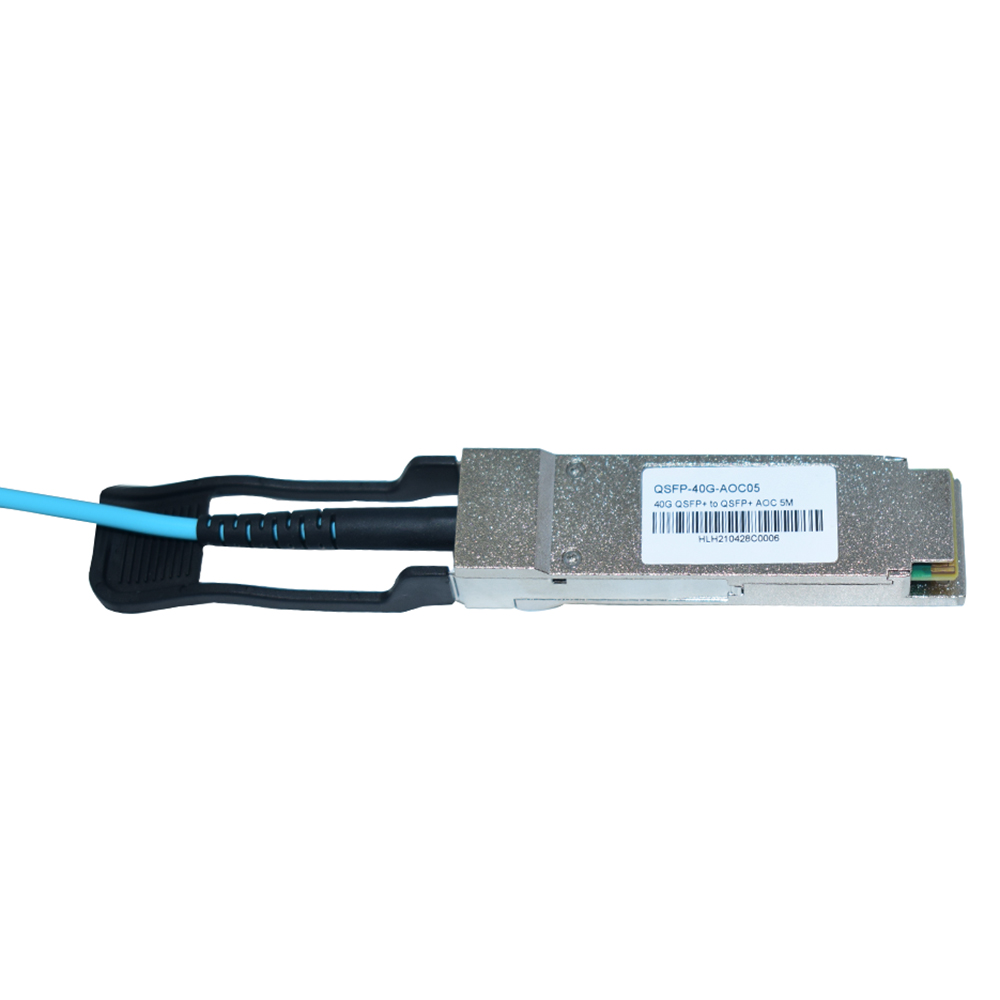

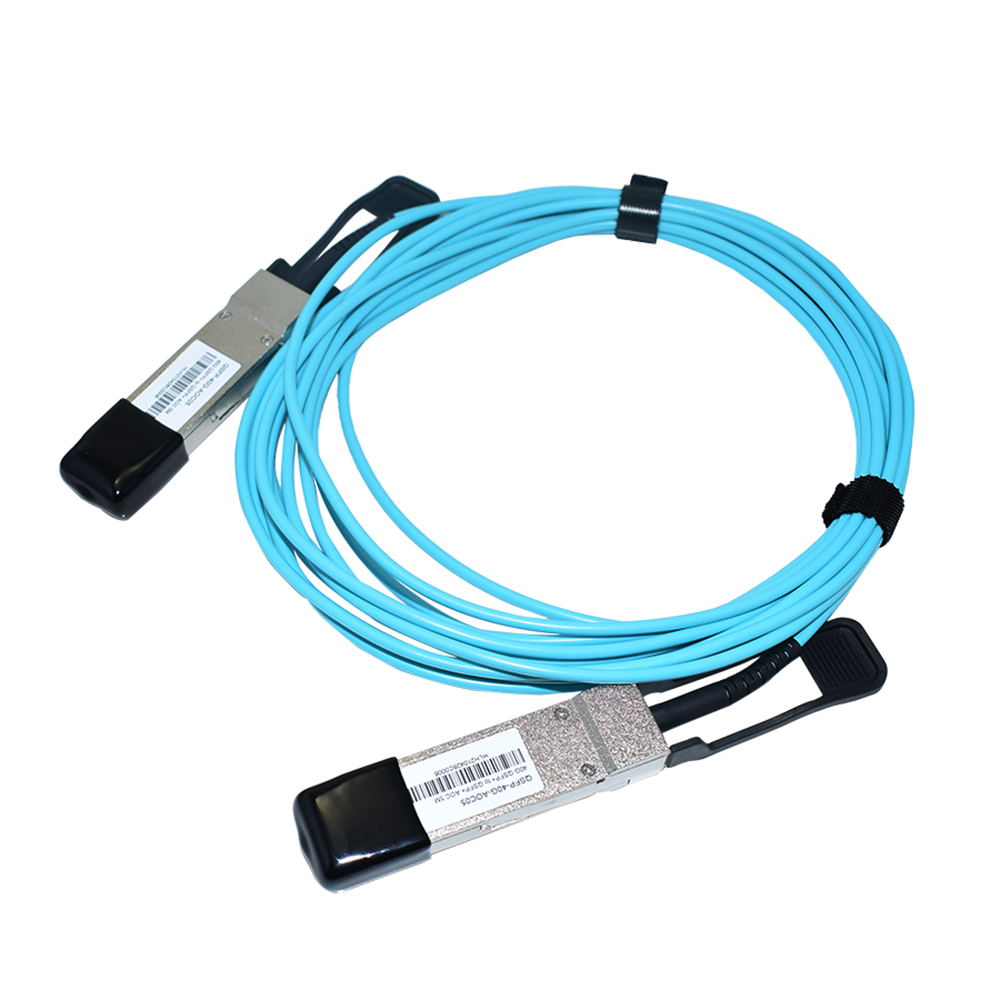

The QSFP-H40G-AOC-xM 40G QSFP+ active optic cables are high performance, low power consumption, long reach interconnect solutions supporting InfiniBand QDR/DDR/SDR, 12.5G/10G/8G/4G/2G fiber channel, PCIe, and SAS.
It is compliant with the QSFP MSA and IEEE P802.3ba. QSFP AOC is an assembly of 4 full-duplex lanes, where each lane can transmit data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s.
QSFP-H40G-AOC-xM is one kind of parallel transceiver that provides increased port density and total system cost savings.
| Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
|---|---|---|---|---|---|---|
| Supply Voltage | Vcc3 | -0.5 | - | +3.6 | V | |
| Storage Temperature | Ts | -10 | - | +70 | °C | |
| Operating Humidity | RH | +5 | - | +85 | % | 1 |

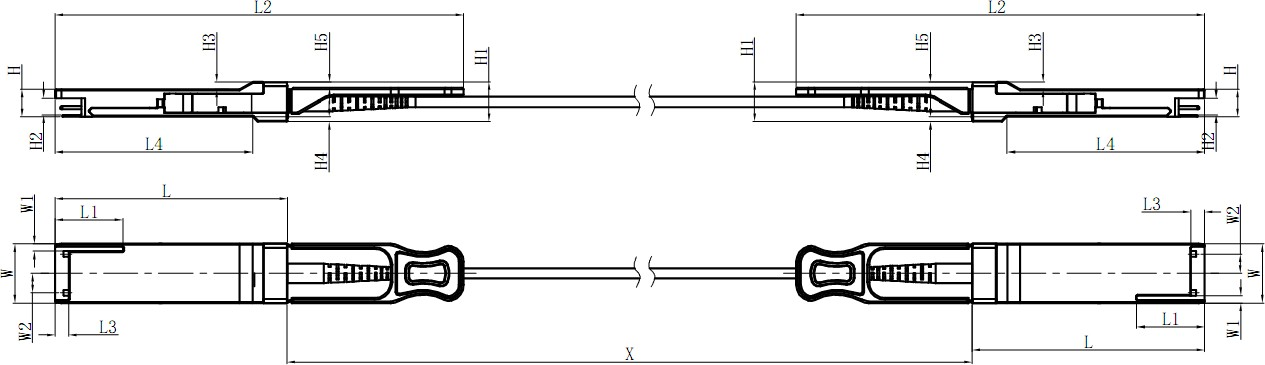

| Dimension Code | Max | Type | Min |
|---|---|---|---|
| L | 72.2 | 72.0 | 68.8 |
| L1 | - | - | 16.5 |
| L2 | 128 | - | 124 |
| L3 | 4.35 | 4.20 | 4.05 |
| L4 | 61.4 | 61.2 | 61.0 |
| W | 18.45 | 18.35 | 18.25 |
| W1 | - | - | 2.2 |
| W2 | 6.2 | - | 5.8 |
| H | 8.6 | 8.5 | 8.4 |
| H1 | 12.4 | 12.2 | 12.0 |
| H2 | 5.35 | 5.2 | 5.05 |
| H3 | 2.5 | 2.3 | 2.1 |
| H4 | 1.6 | 1.5 | 1.3 |
| H5 | 2.0 | 1.8 | 1.6 |
| H6 | - | 6.55 | - |
