| Part Number | QSFP 100G SRBD |
| Form Factor | QSFP28 |
| Wavelength | 850nm / 900nm |
| Connector | Duplex LC |
| Transmitter Type | VCSEL |
| DDM/DOM | Supported |
| TX Power | -5.5 – 3dBm |
| Power budget | 4dB |
| Power Consumption | ≤3.5W |
| Protocols | SFF-8636, SFF-8679, SFF-8024 |
| Max Data Rate | 103.1Gbps |
| Max Cable Distance | 75m@OM3 / 100m@OM4 / 150m@OM5 |
| Cable Type | MMF |
| Receiver Type | PIN |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Minimum Receiver Power | -9.5dBm |
| Receiver Overload | 3.4dbm |
| Bit Error Ratio (BER) | 5E-5 (Pre-FEC) |
| Warranty | 1 Year |

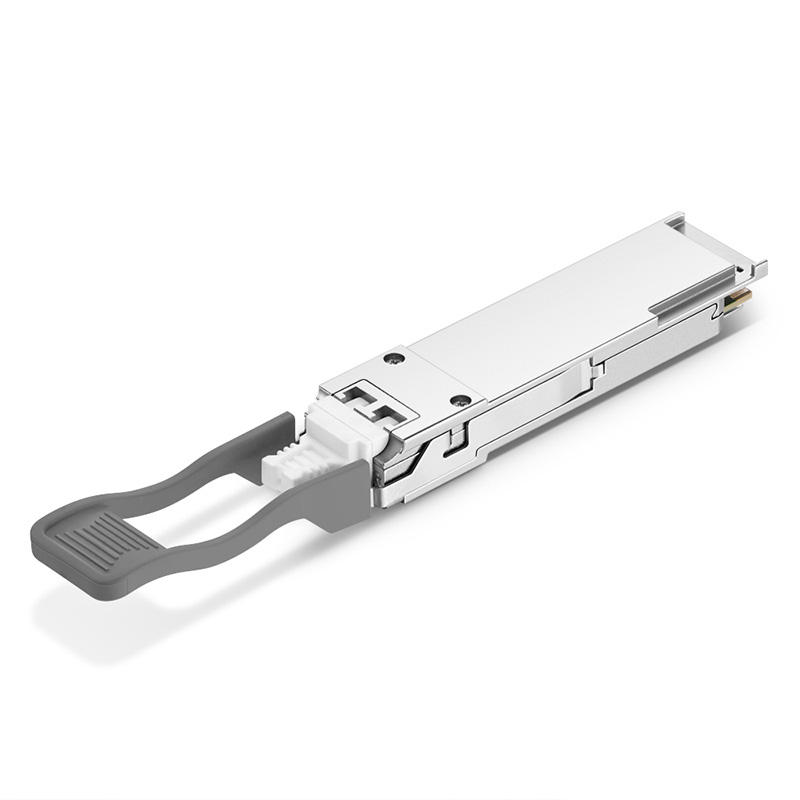

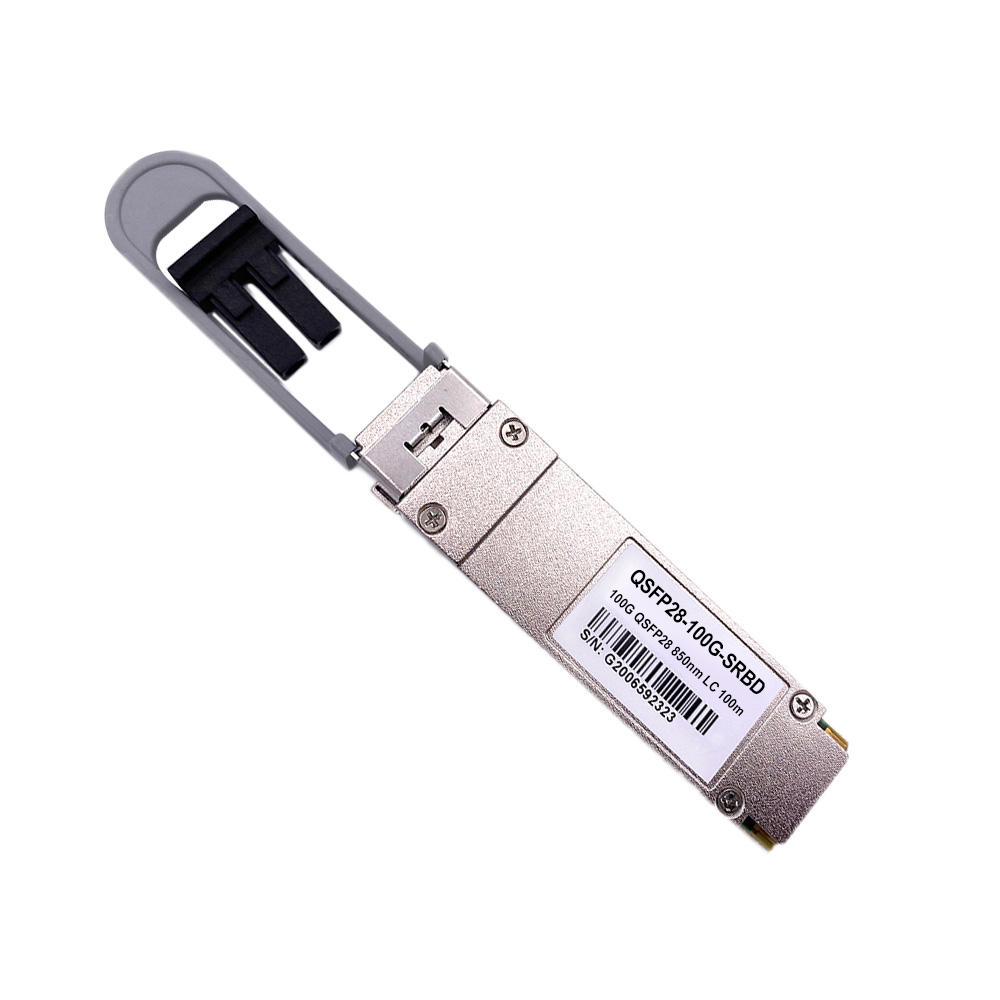

The 100GBASE-SR BiDi QSFP28 transceiver offers data center operators a compelling solution that enables reuse of their existing 10G duplex MMF infrastructure for migration to 100G Ethernet connectivity. It supports Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850nm/900 nm.
With built-in high performance Macom Chip and equipped with individually designed COB packaging, the QSFP28 transceiver offers high speed and low power in 100G links.
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics. Optical Spectrum Test: No Packet Loss & CRC, Eye Pattern Test, Mask Margin >20%, Bit Error Rate Test, BER 1E-12.

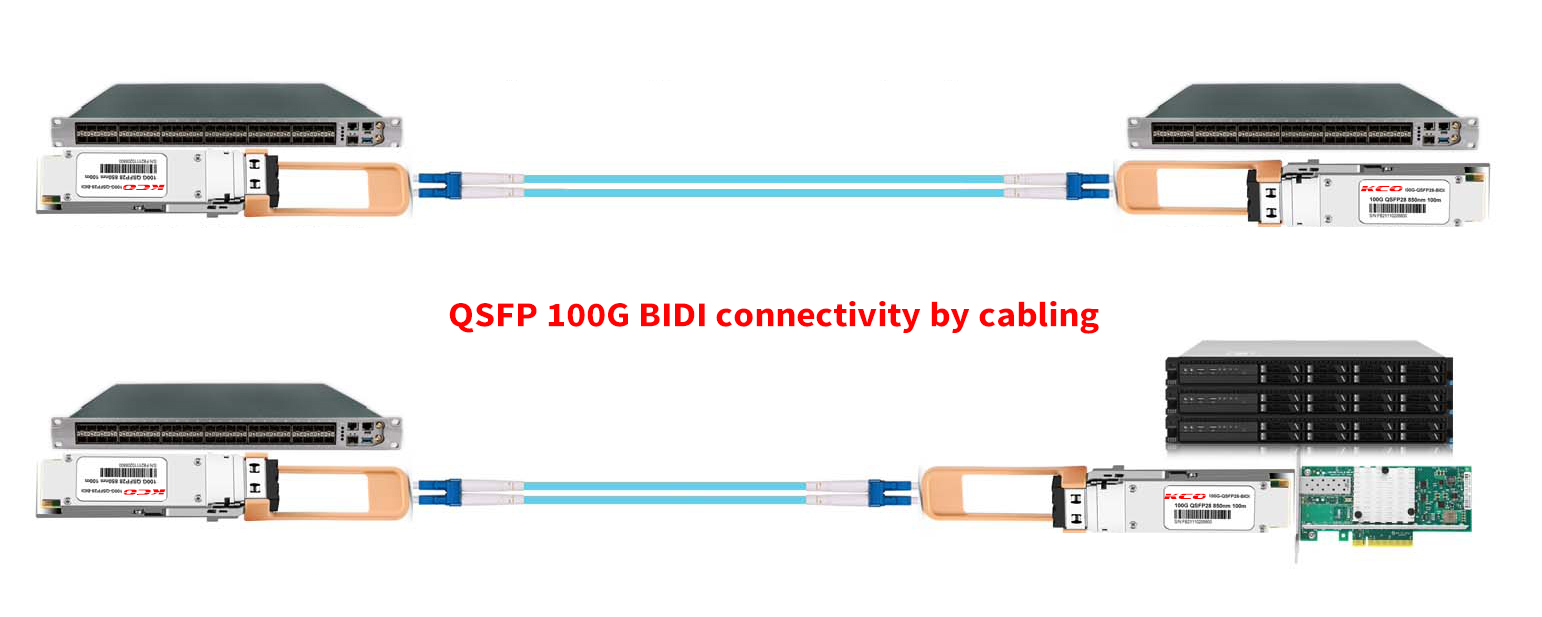

The 100GBASE-SR BiDi QSFP28 transceiver can compatible with series various brands of Modules and switches, routers, servers, network interface card (NICs) etc.
A1: This transceiver supports optical links up to 75 meters over OM3 multimode fiber, 100 meters over OM4, and up to 150 meters over OM5 multimode fiber.

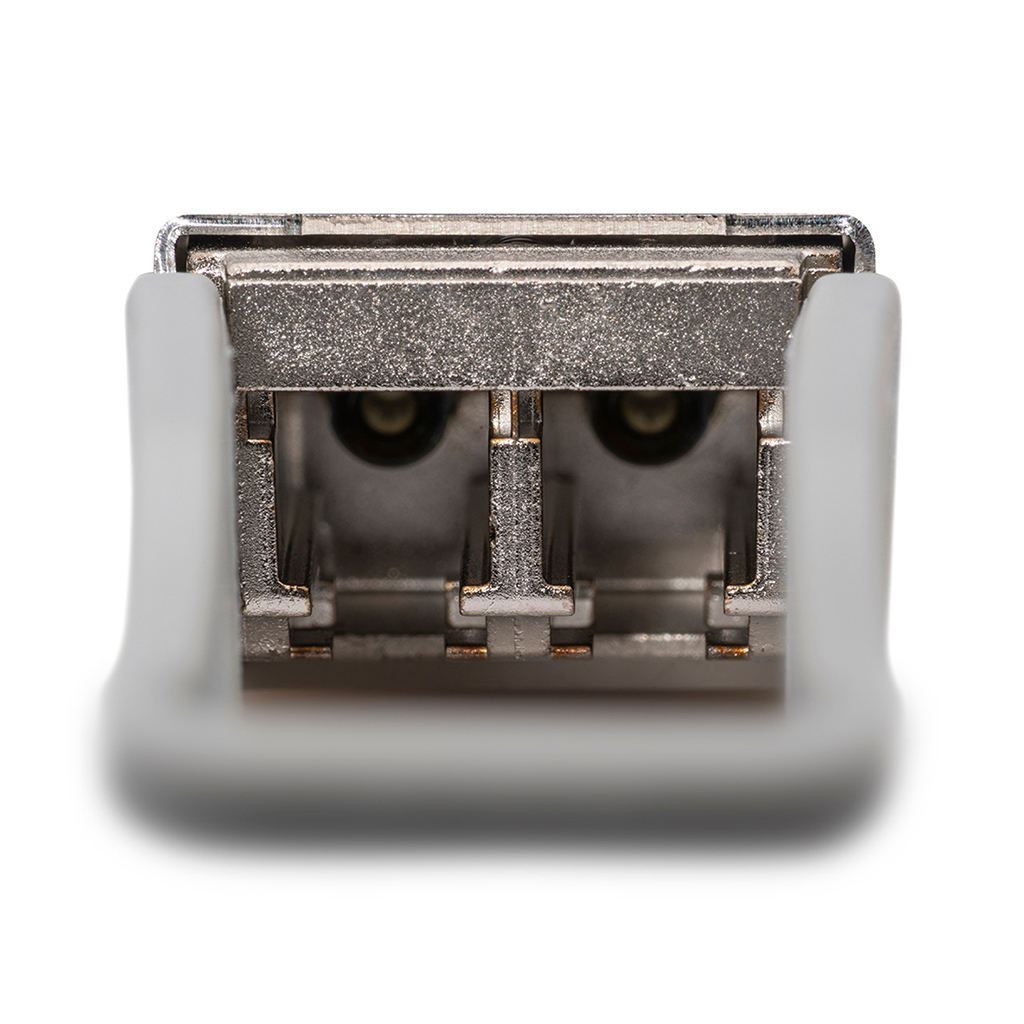

A2: It utilizes a duplex LC connector interface and bi-directional technology over multimode fiber, allowing you to reuse your existing 10G and 40G duplex MMF cabling infrastructure without needing to upgrade to structured MPO/MTP cabling.
A3: The transceiver is fully compliant with the QSFP28 MSA, the IEEE 802.3bm CAUI-4 electrical interface, and RoHS-6 standards to ensure environmental safety and hardware reliability.
A4: Yes, it features built-in Digital Optical Monitoring (DOM/DDM) accessible via an I2C interface, allowing network administrators to monitor real-time operating parameters such as temperature, optical power, and voltage.
A5: It operates efficiently with a maximum power consumption of only 3.5W and supports a standard commercial operating temperature range from 0 to 70°C (32 to 158°F).
A6: It is designed with wide compatibility in mind, working seamlessly with various brands of switches, routers, servers, and network interface cards (NICs) configured for 100G Ethernet networks.
