Quad small form pluggable double density (QSFP-DD) transceivers maximize port economy and density by utilizing multiple lanes of data.

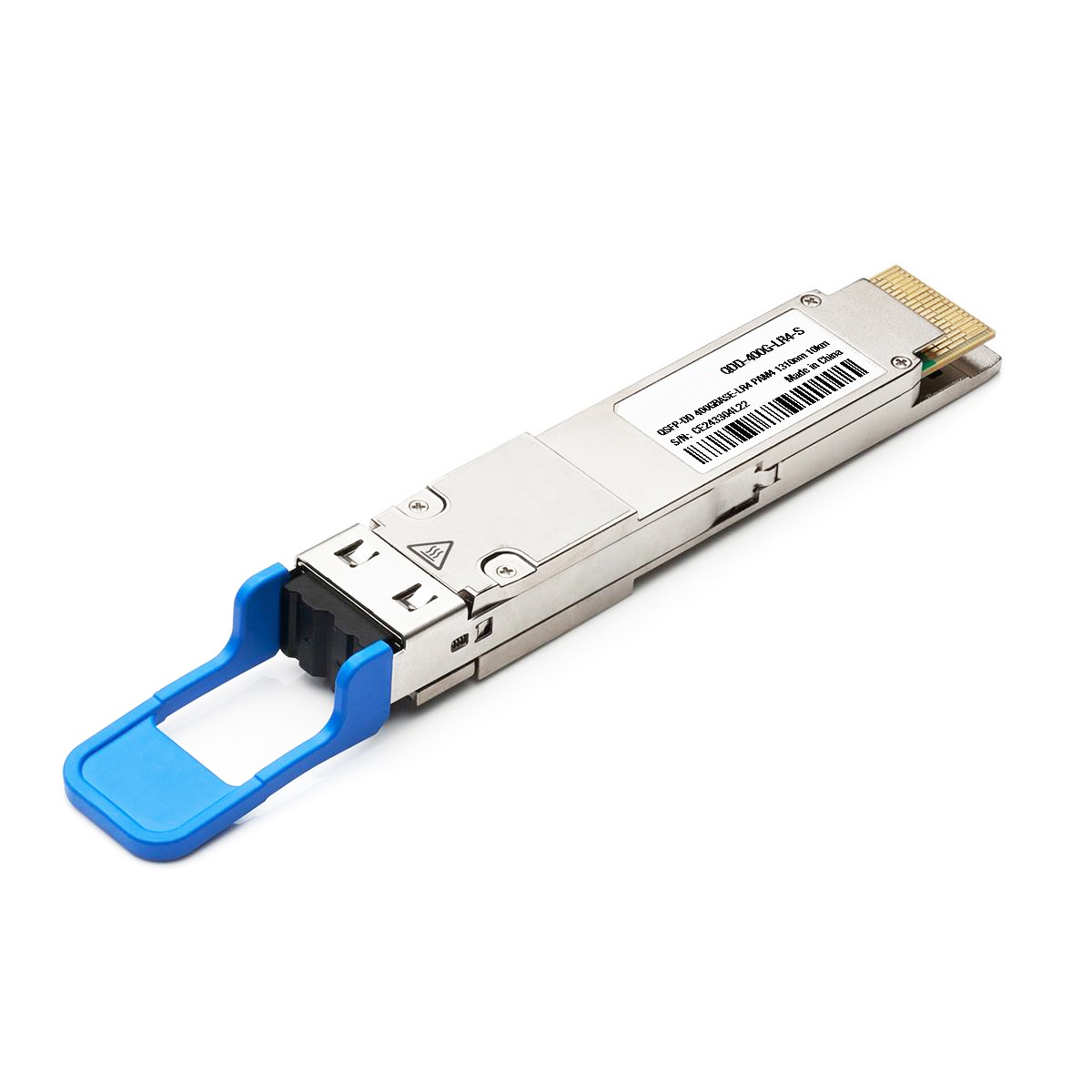

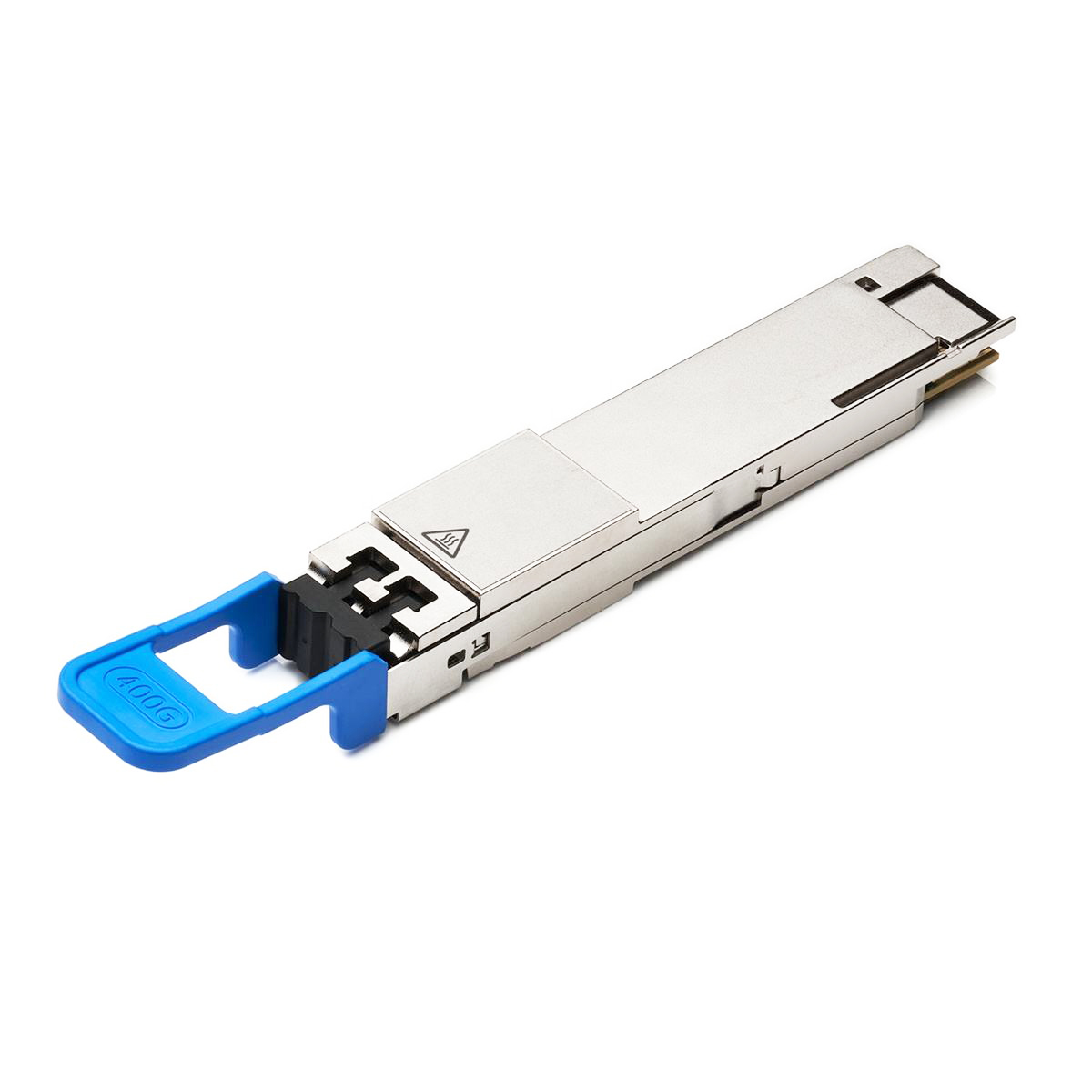

The QDD-400G-LR4-S is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP56-DD) optical module designed for 10km optical communication applications.
Compatibility Validated in Arista/NVIDIA/Cisco RoCE Networking.
The QDD-400G-LR4-S 400GBASE-LR4 module, Duplex LC connector, up to 10km over parallel single-mode fiber.
It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard.
The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.
This QDD-400G-LR4-S fiber optic module is easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically.
| Parameter | Specification Details |
|---|---|
| Cisco Compatible | QDD-400G-LR4-S |
| Form Factor | QSFP-DD |
| Max Data Rate | 400Gbps |
| Wavelength | 1310nm |
| Distance | 10km |

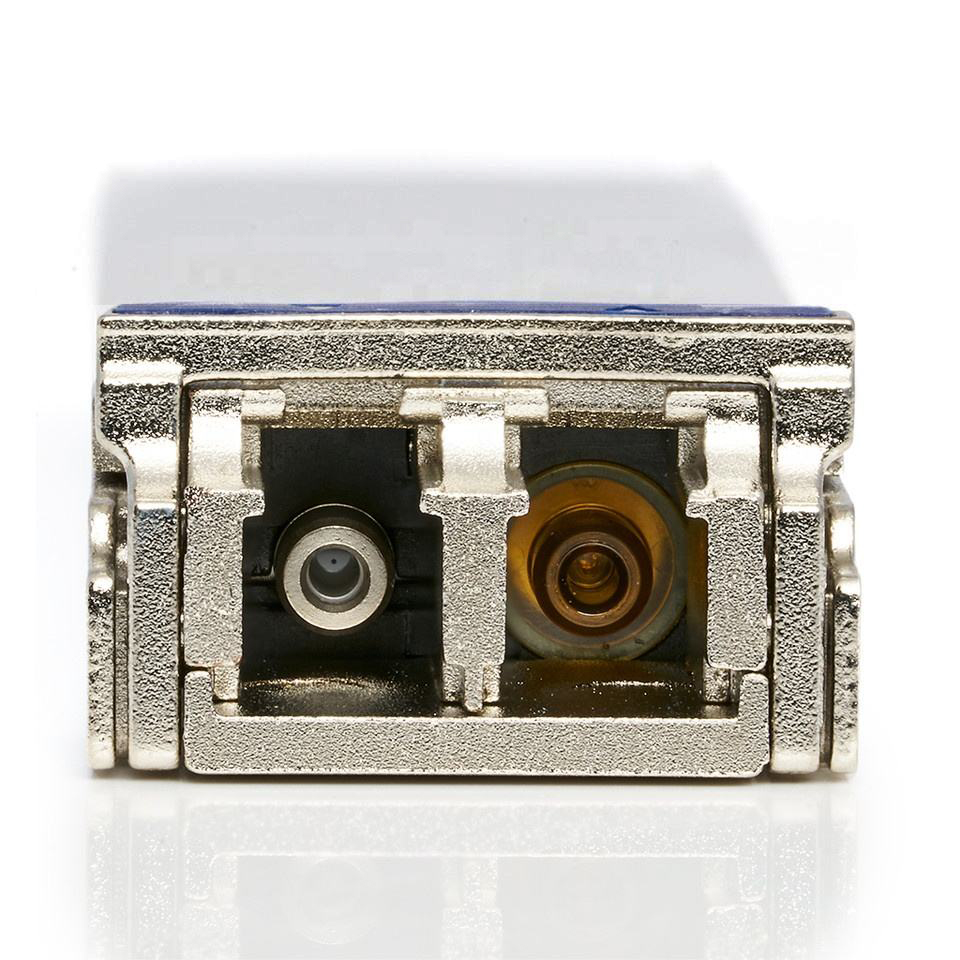

| Connector | Duplex LC/UPC |
| Modulation (Electrical) | 8x50G-PAM4 |
| Temperature Range | 0 to 70°C |
| Transmitter Type | CWDM EML |
| Receiver Type | PIN |
| DDM/DOM | Supported |
| TX Power | -2.8~4.0dBm |
| Mini Receiver Power | -9.1dBm |
| Media | SMF |
| Modulation (Optical) | 4x100G-PAM4 |
| Warranty | 3 years |
Supports 400G-to-400G Link for Switch-to-Switch, 800G-to-two 400G Links for Switch-to-Switch, and 400G-to-400G Link to ConnectX-7.
Qualified through a rigorous process with advanced equipment to ensure you get the high quality and reliable optics.
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.
Reconfiguring the transceiver to work with different brands to enable seamless network expansion.
What is the transmission distance limit for this QSFP-DD 400G LR4 transceiver?
This module supports high-speed 400Gb/s transmission over distances up to 10km utilizing single-mode fiber (SMF).
Which optical fiber and connector type are required?
The transceiver requires single-mode fiber (SMF) cabling and utilizes a Duplex LC/UPC connector configuration.
What networking platforms are compatible with this module?
The module is verified and compatible with major networking environments including Arista, NVIDIA, and Cisco RoCE systems.
Does this module support hot-swappable installation?
Yes, it is design-compliant as a hot-swappable transceiver, which means you can install or replace the module without powering down your system.
What standards and protocols does the transceiver comply with?
It strictly complies with the IEEE 802.3bs protocol guidelines and the 400GAUI-8/CEI-56G-VSR-PAM4 transmission standards.
