Compatible 400GBASE-FR QSFP-DD 4*100G PAM4 Optical Transceiver Module 1310nm 2Km DOM MPO-12/APC Fiber Optic Equipment - QSFP-DD MSA compliant - MPO-12 connector with 8° angled end-face - Power consumption <11 W - Operating case temperature 0 to 70 ºC - CMIS 4.0 management interface - Breakout Mode • 4x 100GBASE-FR1 compliant 53.125GBd PAM4 • 100GAUI-2 compliant 2x 26.5625 GBd PAM4 - Aggregation Mode • 400GBASE-FR4 compliant 4x 53.125GBd PAM4 • 400GAUI-8 compliant 8x 26.5625 GBd PAM4
Send Inquiry

Product Description

Key Features

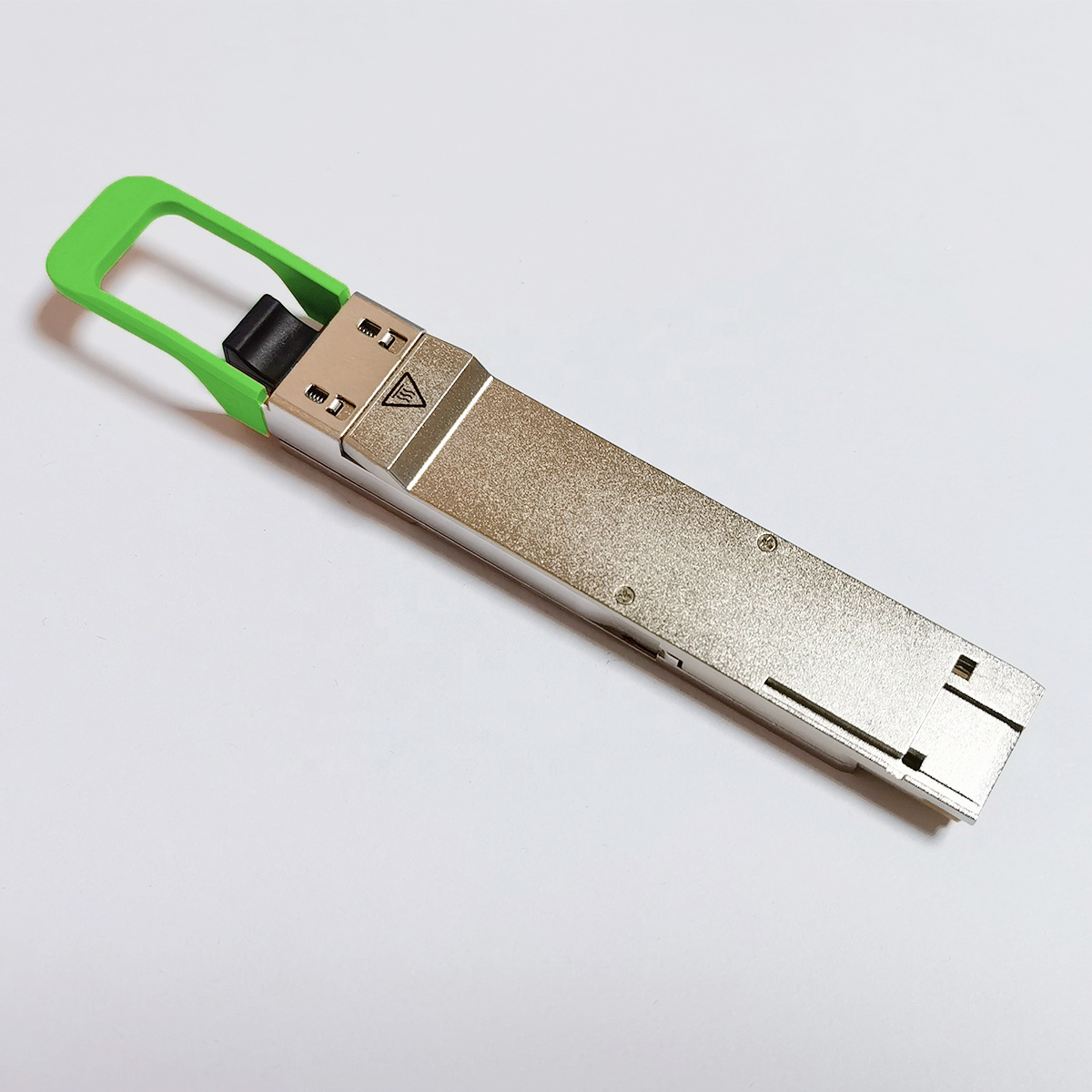

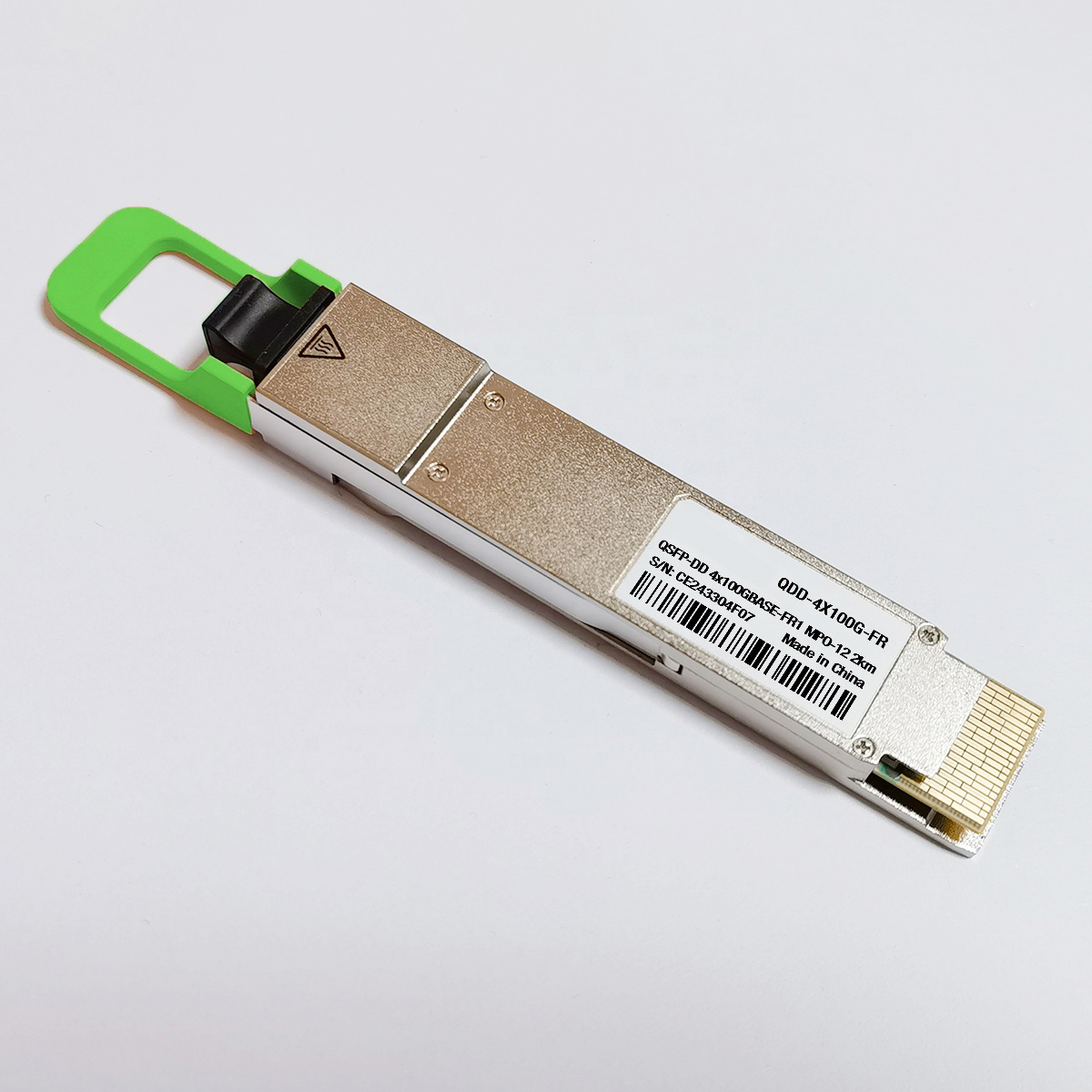

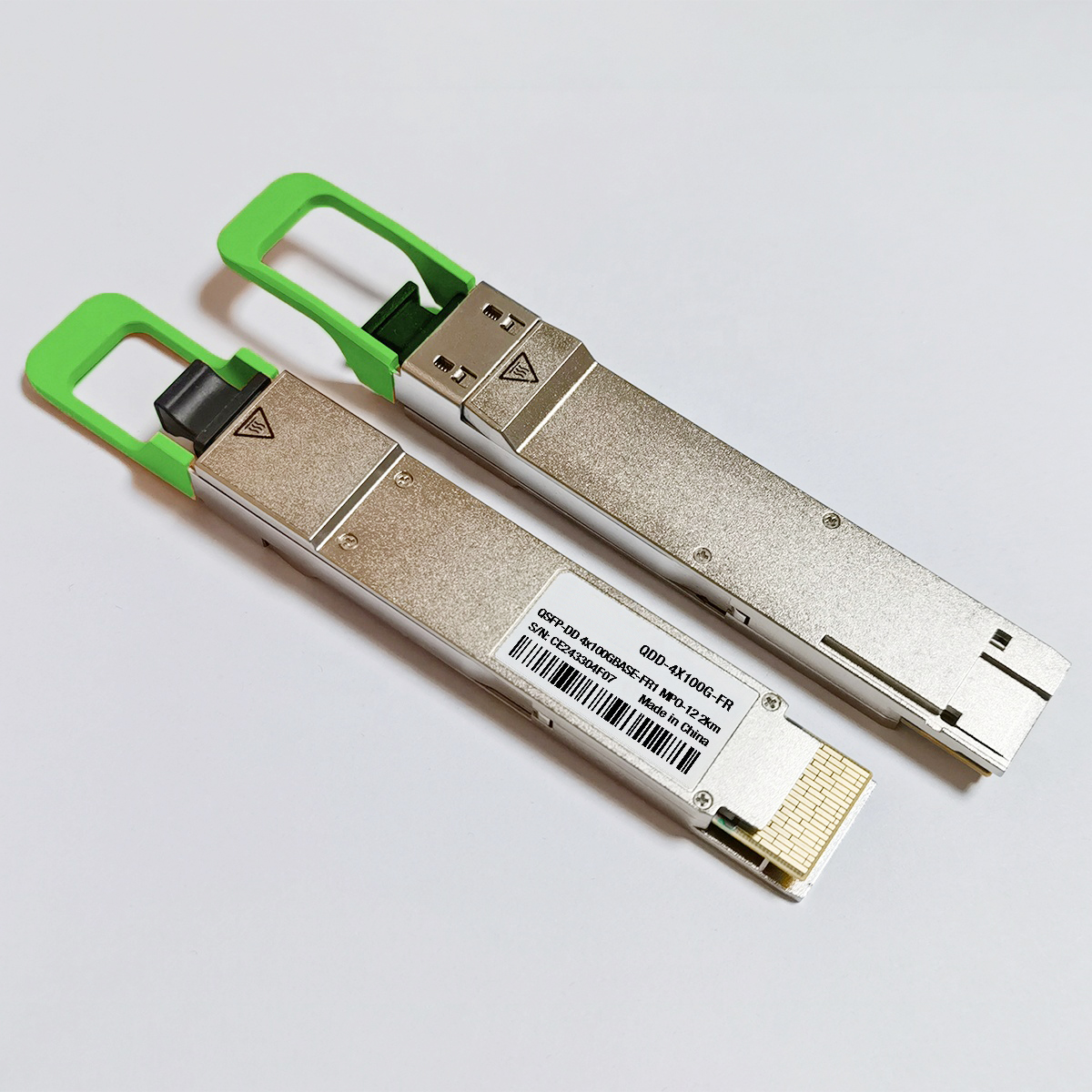

The KCO QDD 400G FR S fiber optic module, MTP/MPO-12 connector, up to 2km over parallel single-mode fiber.
It is compliant with KCO QDD 400G FR MSA, IEEE 802.3 protocol and 400GAUI-8 standards.
The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.
This KCO QDD 400G FR is easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically.
KCO QDD 400G FR is suitable for 400G ethernet and data center interconnect applications.
And it can be used as a 4x100G breakout to QSFP-FR-100G.
Technical Specifications
Cisco Compatible KCO QDD 4x100G FR S / KCO QDD 400G FR
Form Factor QSFP-DD
Max Data Rate 400Gbps
Wavelength 1310nm
Distance 2km
Connector MPO-12
Modulation (Electrical) 8x50G-PAM4
DSP TX and RX
Core Size 9um/125um
Temperature Range 0 to 70°C
Transmitter Type CW DFB
Receiver Type PIN
DDM/DOM Supported
TX Power -3.1~4.0dBm
Min Receiver Power -7.1dBm
Media SMF
Modulation (Optical) 4x100G-PAM4
Max Power Consumption 11W
Protocols IEEE Std 802.3, QSFP-DD MSA, CMIS 4.0
Warranty 5 years
Applications
Data Center 400GE 2km SMF links
400GE to 4 x100GE breakout over 2km
Switch/Router interconnections
Frequently Asked Questions
What is the maximum transmission distance of the KCO QDD 400G FR module?
The module supports a transmission distance of up to 2km over parallel single-mode fiber (SMF).
What type of fiber connector does this transceiver use?
This module utilizes an MTP/MPO-12 optical connector.
Can this 400G module be used for breakout applications?
Yes, it can be configured as a 4x100G breakout solution to interface with QSFP-FR-100G modules.
Does this module support real-time optical diagnostics?
Yes, the module features built-in digital diagnostics monitoring (DDM/DOM), allowing real-time monitoring of operating parameters such as optical power, temperature, and voltage.
What protocols and standards are compliant with this transceiver?
The transceiver is fully compliant with the KCO QDD 400G FR MSA, IEEE Std 802.3 protocol, 400GAUI-8 standards, and CMIS 4.0.
What is the warranty period for the KCO QDD 400G FR?
This product comes with a comprehensive 5-year warranty.
