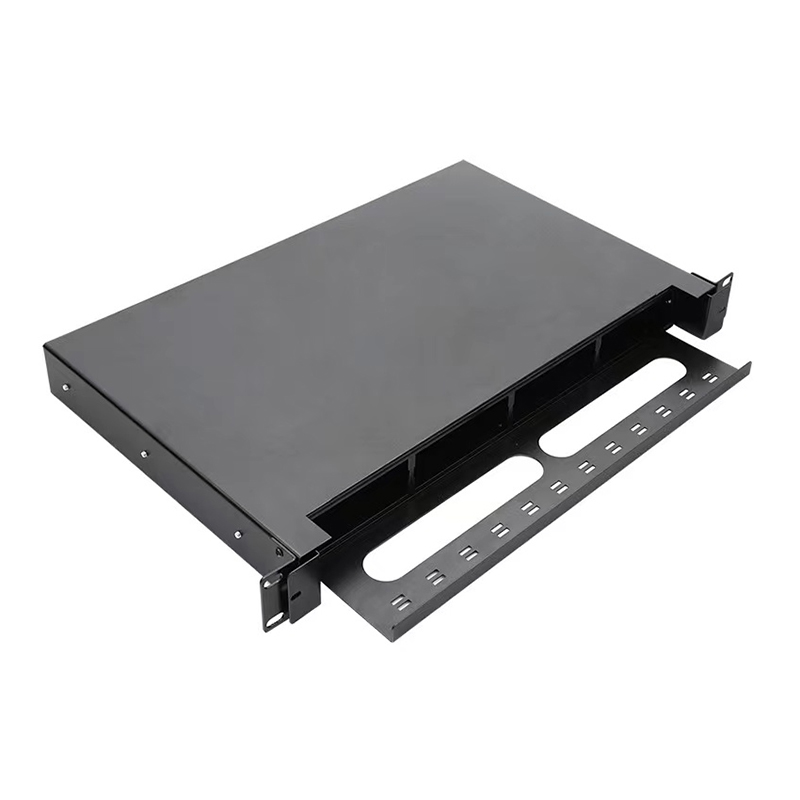

Rack mounted optical distribution frame (ODF) KCO-MPO-1U-01 is the device that terminates between the optical cables and the optical communication equipment, with the function of splicing, termination, storing and patching of optical cables.

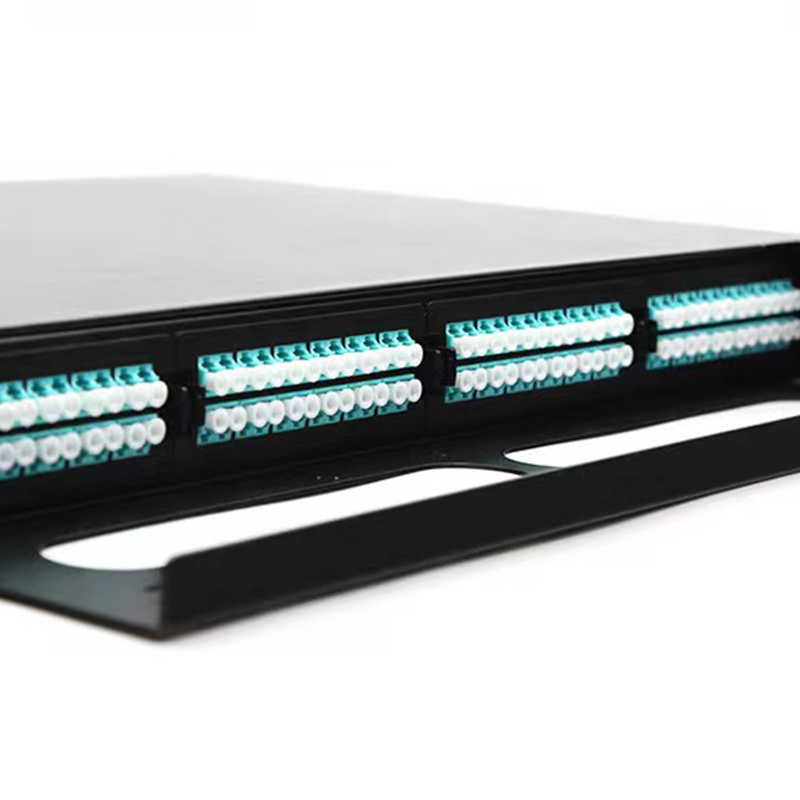

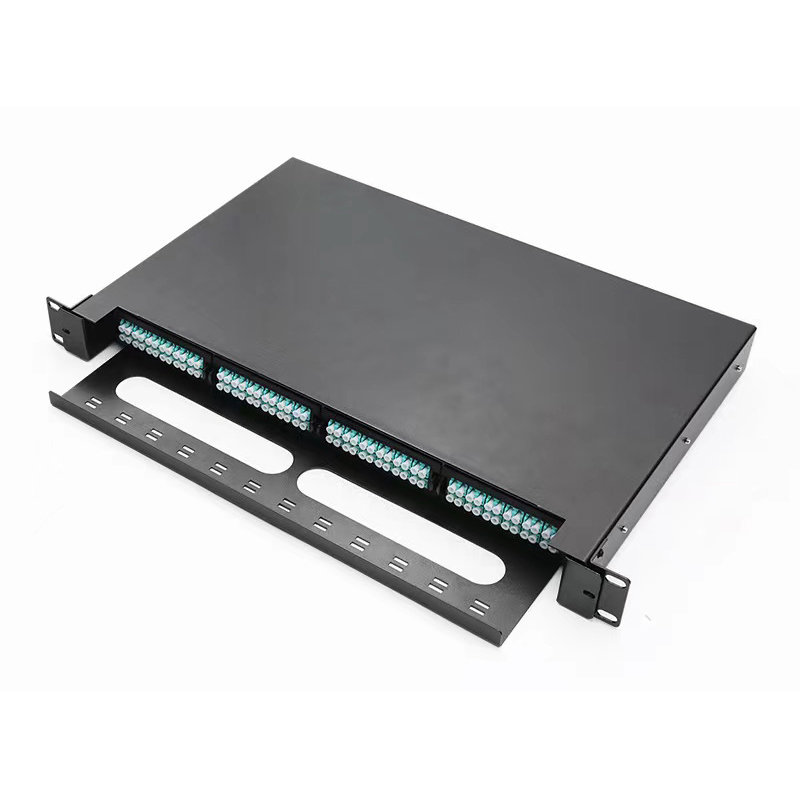

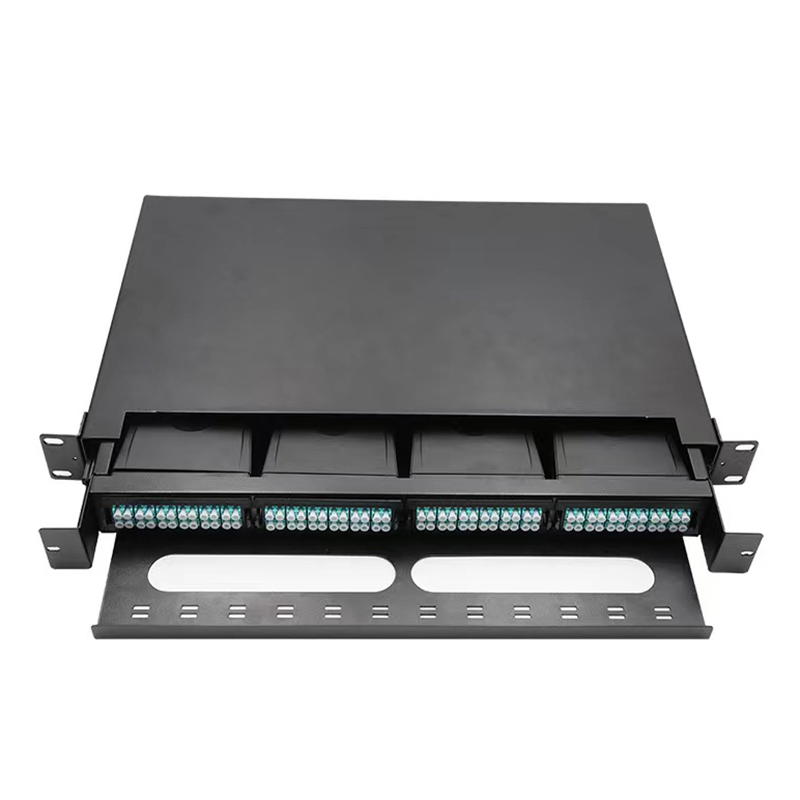

This special patch panel is an MPO pre-terminated ultra-high-density wiring box, 19-inch, 1U height. It is special design for data center which each patch panel can install up to 96 cores of LC. It can be used in high-density wiring applications such as computer centers, computer rooms, and databases.
| Technical Parameter | Specification Specification Details | |
|---|---|---|
| P/N | KCO-MPO-1U-01-96 | |
| Material | Steel tape | |
| MPO Module | Available | |
| Module material | Plastic | |
| Module port | LC Duplex port: 12 | |
| MPO port: 2 | ||
| Module installation way | Buckled Type | |
| Fiber type | Sing Mode (SM) 9/125 | MM (OM3, OM4, OM5) |
| Fiber count | 8fo / 12fo / 16fo / 24fo | |
| Insertion loss | LC ≤ 0.5dB | LC ≤ 0.35dB |
| MPO ≤ 0.75dB | MPO ≤ 0.35dB | |
| Return loss | LC ≥ 55dB | LC ≥ 25dB |
| MPO ≥ 55dB | MPO ≥ 25dB | |
| Environment | Operating temperature: -5°C ~ +40°C | |
| Storage temperature: -25°C ~ +55°C | ||
| Relative humidity | ≤95% (at +40°C) | |
| Atmospheric pressure | 76-106kpa | |
| Insertion durability | ≥1000 times | |
| P/N | Module no. | Fiber Type | Module Type | Connector 1 | Connector 2 |
|---|---|---|---|---|---|
| KCO-MPO-1U-01 | 1, 2, 3, 4 | SM OM3-150 OM3-300 OM4 OM5 |
12fo 12fo*2 24fo |
MPO/APC MPO SM MPO OM3 MPO OM4 |
LC/UPC LC/APC LC MM LC OM3 LC OM4 |
| KCO-MPO-2U-01 | 1, 2, 3, 4, 5, 6, 7, 8 | SM OM3-150 OM3-300 OM4 OM5 |
12fo 12fo*2 24fo |
MPO/APC MPO SM MPO OM3 MPO OM4 |
LC/UPC LC/APC LC MM LC OM3 LC OM4 |
What is the maximum fiber capacity of the KCO-MPO-1U-01 patch panel?
The patch panel is designed for ultra-high-density wiring in data centers, with the capability to support up to 96 cores of LC connections within a 1U rack-mount height.
What components and design features facilitate maintenance?
It features a front and rear removable top cover, a pull-out double guide rail, a detachable front bezel, and lightweight ABS module boxes. These technical design features allow for convenient installation and maintenance inside high-density environments.
Which fiber modes and connector types are supported?
It supports Single Mode (SM 9/125) and Multimode (MM OM3, OM4, OM5) fibers. Connector interfaces include MPO (such as MPO/APC, MPO SM, MPO OM3/OM4) and LC (such as LC/UPC, LC/APC, LC MM, LC OM3/OM4).
What are the insertion loss specifications for LC and MPO connections?
For Single Mode, the insertion loss is LC ≤ 0.5dB and MPO ≤ 0.75dB. For Multimode fibers, the insertion loss is LC ≤ 0.35dB and MPO ≤ 0.35dB.
What are the environmental limits for operation and storage?
The operating temperature range is -5°C to +40°C, and the storage temperature range is -25°C to +55°C. It is rated to withstand relative humidity up to 95% (at +40°C).
How durable is the MPO module tray connection?
The modules are built with premium materials offering an insertion durability rating of ≥1000 plug cycles under standard conditions.
