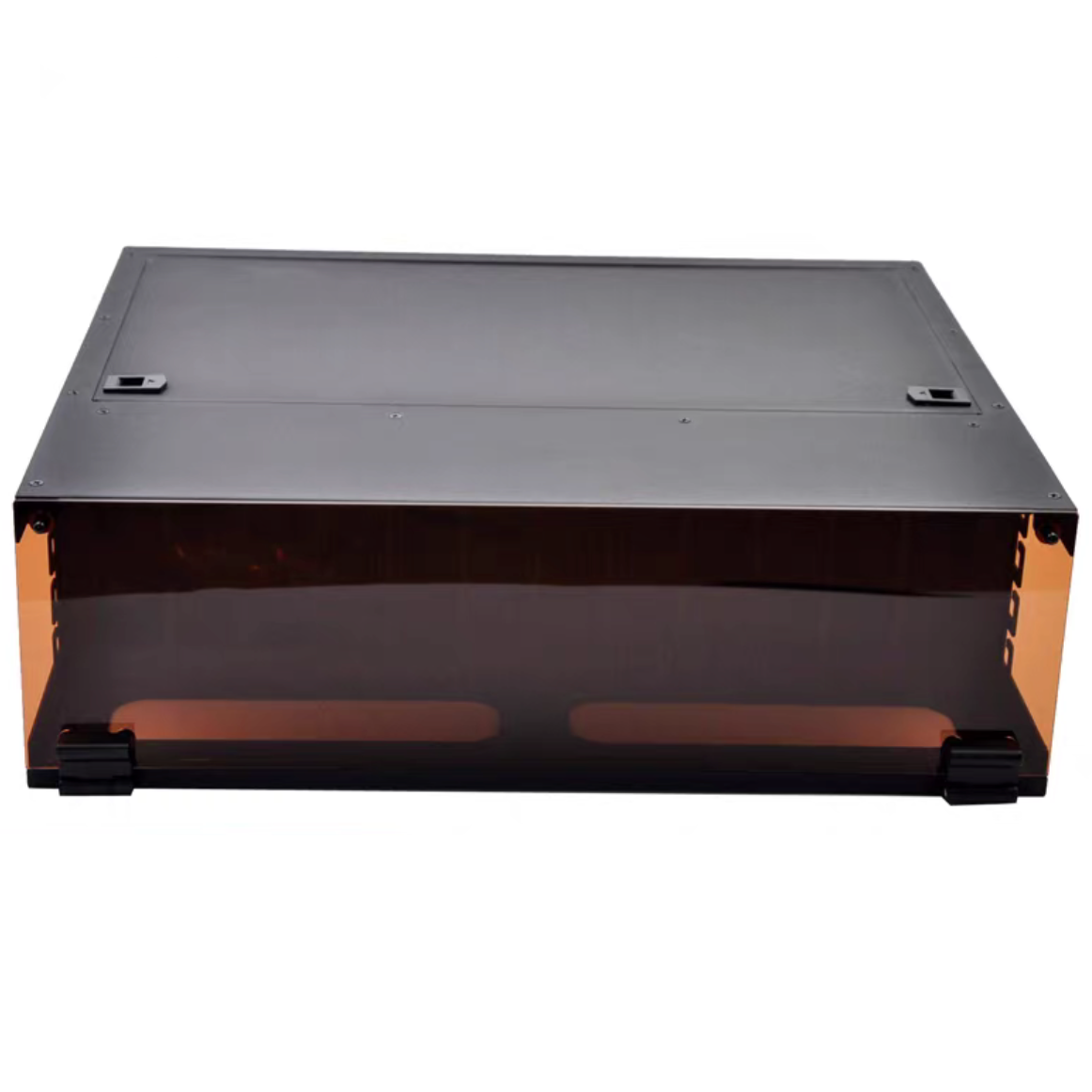

OEM Standard 19inch 288 Cores High Density Optical Fiber MTP MPO Chassis Rack Mountable Patch Panel Suppliers, Pricelist
+ Size: Standard 19'' for telecom distribution frame
+ High: 3U (133mm)
+ Capacity: 288 LC ports
+ Module number: 12 pcs
+ Module max. capacity: 24 fibers
+ Module can install 1pcs MPO-24 to LC or 2 pcs of MPO-12 to LC or 3pcs of MPO-8 to LC
+ Rack mount type: Fixed type
+ Color: black (other color is optional)
+ P/N: KCO-MPO-288-3U-FX

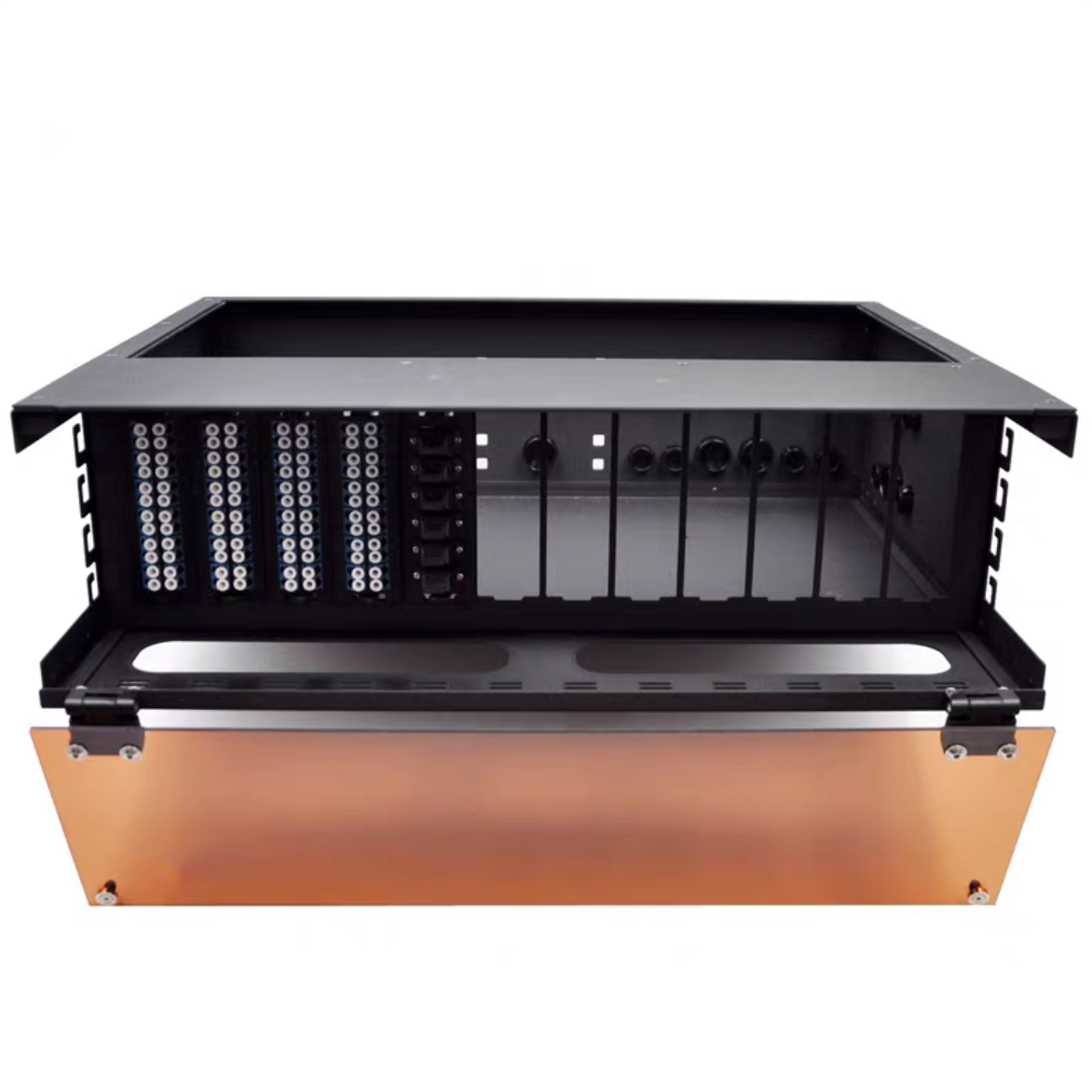

Fixed type MPO high density fiber optic patch panels are 19-inch rack-mountable, non-sliding metal enclosures designed to manage, splice, and connect up to 288 fibers.

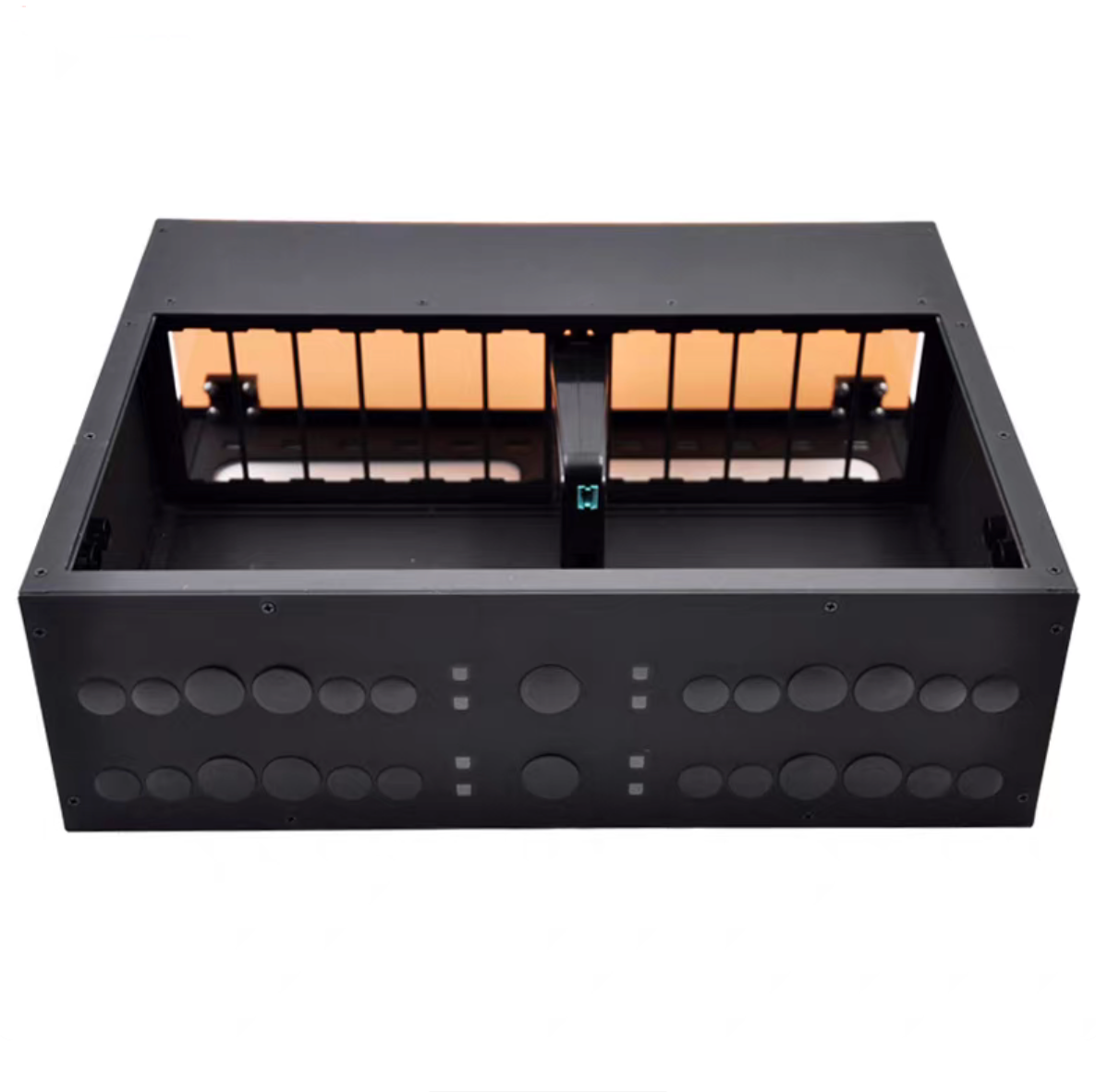

They feature rugged, cold-rolled steel construction with 3U height, providing a secure, high-density, and cost-effective distribution hub with front-facing adapters LC duplex and rear cable entry for permanent splicing and patch cord connectivity.
This MPO-288-3U-FX rack mount patch panel is 288 cores of fiber optic termination box for standard 19-inch fiber optic distribution frame for MPO connectivity in data center or AI center.
This special patch panel is an MTP MPO pre-terminated ultra-high-density wiring box, 19-inch, 2U height. It is special design for data center which each patch panel can install up to 288 cores of LC port.
Key Advantages
Easy Termination
High-density (up to 288 fibers), reliable organization for incoming cables.
Durability
Solid construction minimizes maintenance, offering high-performance.
Cost-Effectiveness
Often more affordable and easier to install than sliding counterparts.
Organization
Provides a centralized, organized interface for easy fiber patching and identification.
Technical Specifications
Size

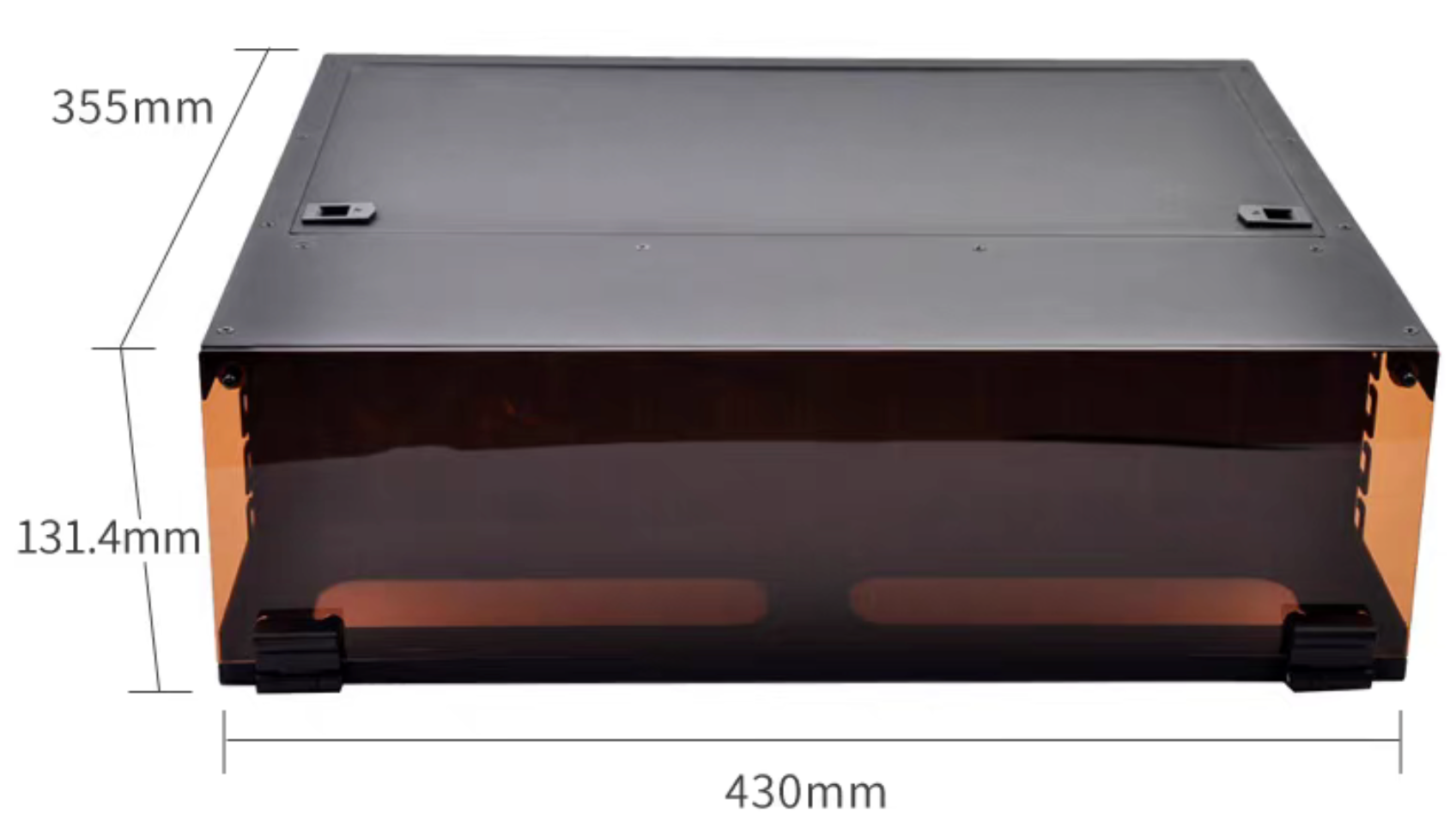

430*355*131.4 (mm) (Length without ear)
Capacity
288 cores
Module Number
Max 12 pcs

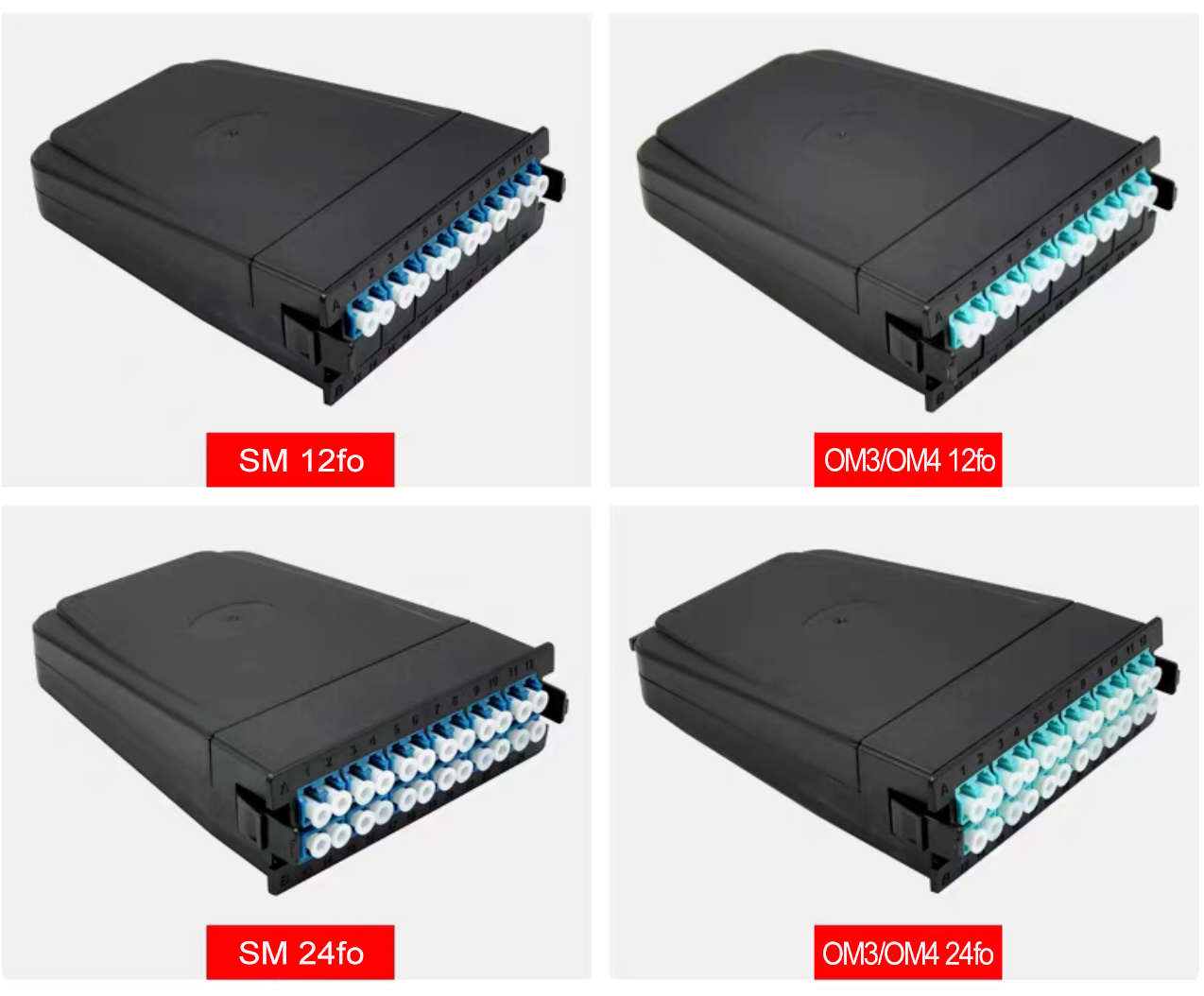

Module Capacity
12fo/24fo
Material
Steel tape (optional: aluminum tape 1.4mm or more)
Thickness
Standard 1.4mm (Optional: 1.0mm, 1.2mm)
Operating Temperature
-5°C ~ +40°C
Storage Temperature
-25°C ~ +55°C
Relative Humidity
≤95% (at +40°C)
Atmospheric Pressure
76-106kpa
Insertion Loss
Standard type: 0.65dB | Elite type: 0.35dB
Return Loss (RL)
Single mode: 65dB | Multimode: 35dB
Insertion Durability
≥1000 times
Configuration Details
P/N
Module no.
Fiber Type
Module Type
Connector 1
Connector 2
MPO-3U-288
1
2
3
4
5
6
7
8
9
10
11
12
SM
OM3-150
OM3-300
OM4
OM5
8fo*3
12fo*2
24fo*1
MPO-8
MPO-12
MPO-24
LC
Frequently Asked Questions
What is the maximum fiber capacity of this MPO patch panel?
This high-density patch panel is designed to manage, splice, and connect up to 288 fibers using a maximum of 12 modules, with support for module capacities of 12fo or 24fo.
What are the mounting and installation dimensions?
The patch panel features a standard 19-inch rack-mountable size, with overall dimensions of 430*355*131.4 mm (length without mounting ears). It is available in 3U height configuration, as well as 2U pre-terminated wiring box setups.
What options are available for fiber types and connectors?
The patch panel supports Single Mode (SM) and Multimode (OM3-150, OM3-300, OM4, OM5) fiber types. It accommodates connector configurations including MPO-8, MPO-12, and MPO-24 to LC duplex connectivity.
What is the difference in insertion loss between the Standard and Elite types?
The Standard type features an insertion loss of 0.65dB, whereas the Elite type offers an optimized low-loss performance of 0.35dB.
Where is this pre-terminated ultra-high-density patch panel typically deployed?
It is specially designed for high-density wiring and cable management inside data centers, AI computing hubs, and standard 19-inch fiber optic distribution frames.
