Fiber optic patch panel is a crucial, centralized metal housing used to terminate, organize, and manage fiber optic cables in network racks, primarily facilitating connections between outside plant cables and active equipment.

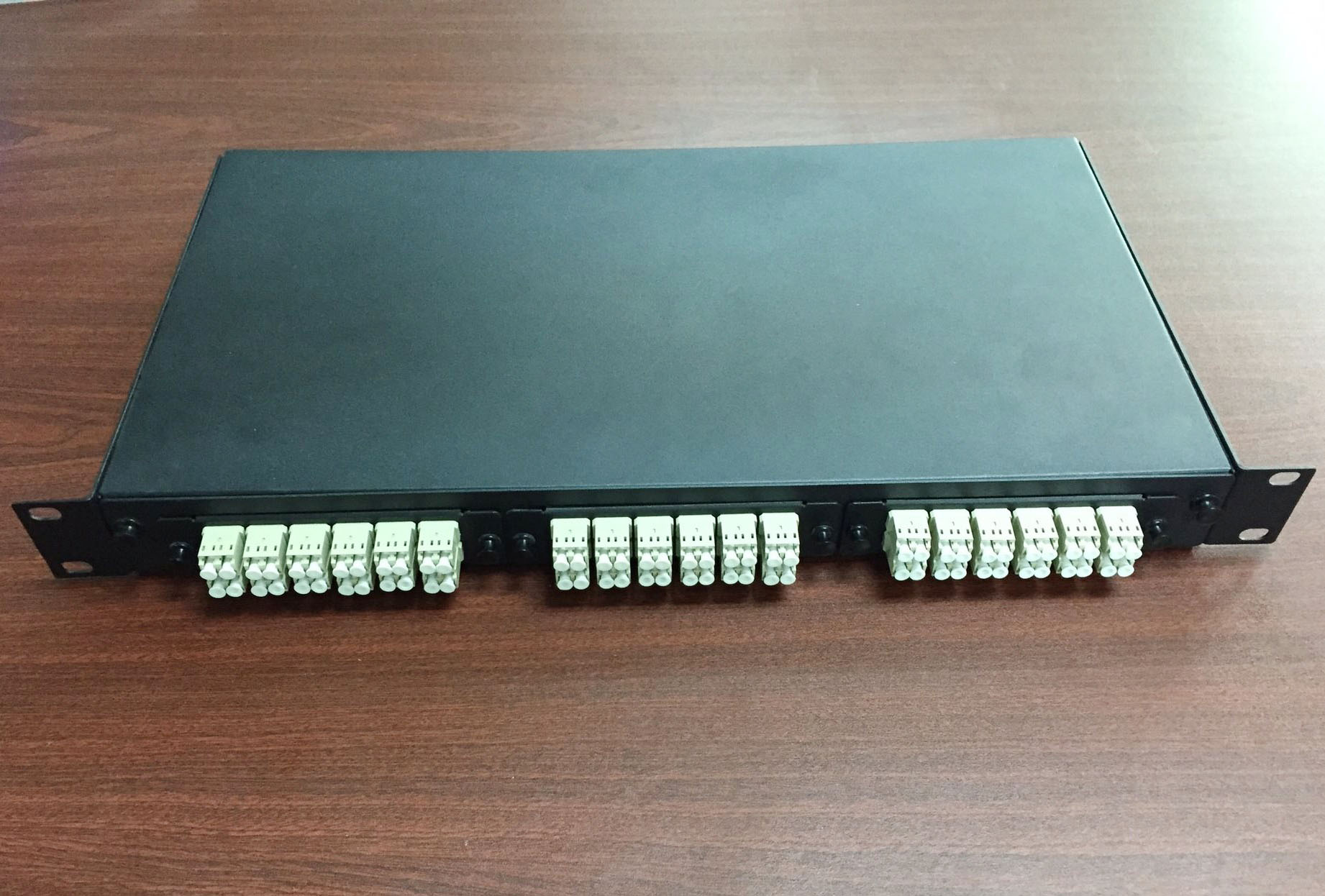

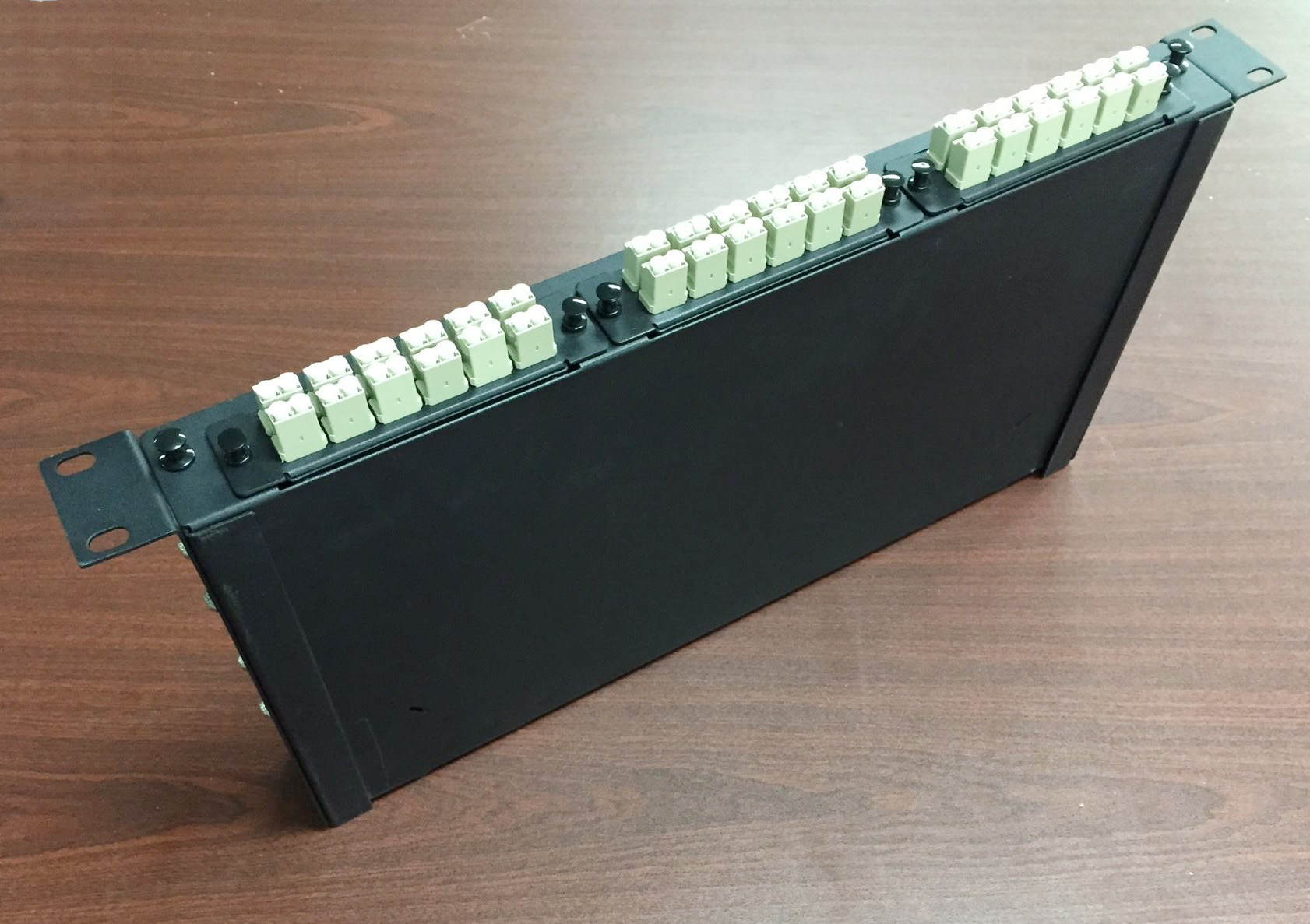

This fiber optic patch panel is available in rack-mount (19" standard), holding the fiber optic module loaded with MPO to LC fanout patch cable.
| P/N | Module no. | Fiber Type | Module Type | Connector 1 | Connector 2 |
|---|---|---|---|---|---|
| MPO-1U-72 |
1 2 3 |
SM OM3-150 OM3-300 OM4 OM5 |
8fo*3 12fo*2 24fo*1 |
MPO-8 MPO-12 MPO-24 |
LC |
| MPO-2U-144 |
1 2 3 4 5 6 |
SM OM3-150 OM3-300 OM4 OM5 |
8fo*3 12fo*2 24fo*1 |
MPO-8 MPO-12 MPO-24 |
LC |
This patch panel is designed for standard 19-inch racks with a 1U height, offering a high-density capacity of up to 72 cores utilizing LC ports.
The housing is standardly made of 1.0mm steel tape, with options for 0.8mm, 1.2mm, or 1.4mm thicknesses. An optional aluminum tape (1.4mm or thicker) is also available.
It supports both Single Mode (SM) and Multimode (OM3-150, OM3-300, OM4, OM5) fiber types. Connection configurations support MPO-8, MPO-12, and MPO-24 to LC terminations.
The standard type configuration offers an insertion loss of 0.65dB, whereas the premium Elite type configuration features a lower insertion loss of 0.35dB.

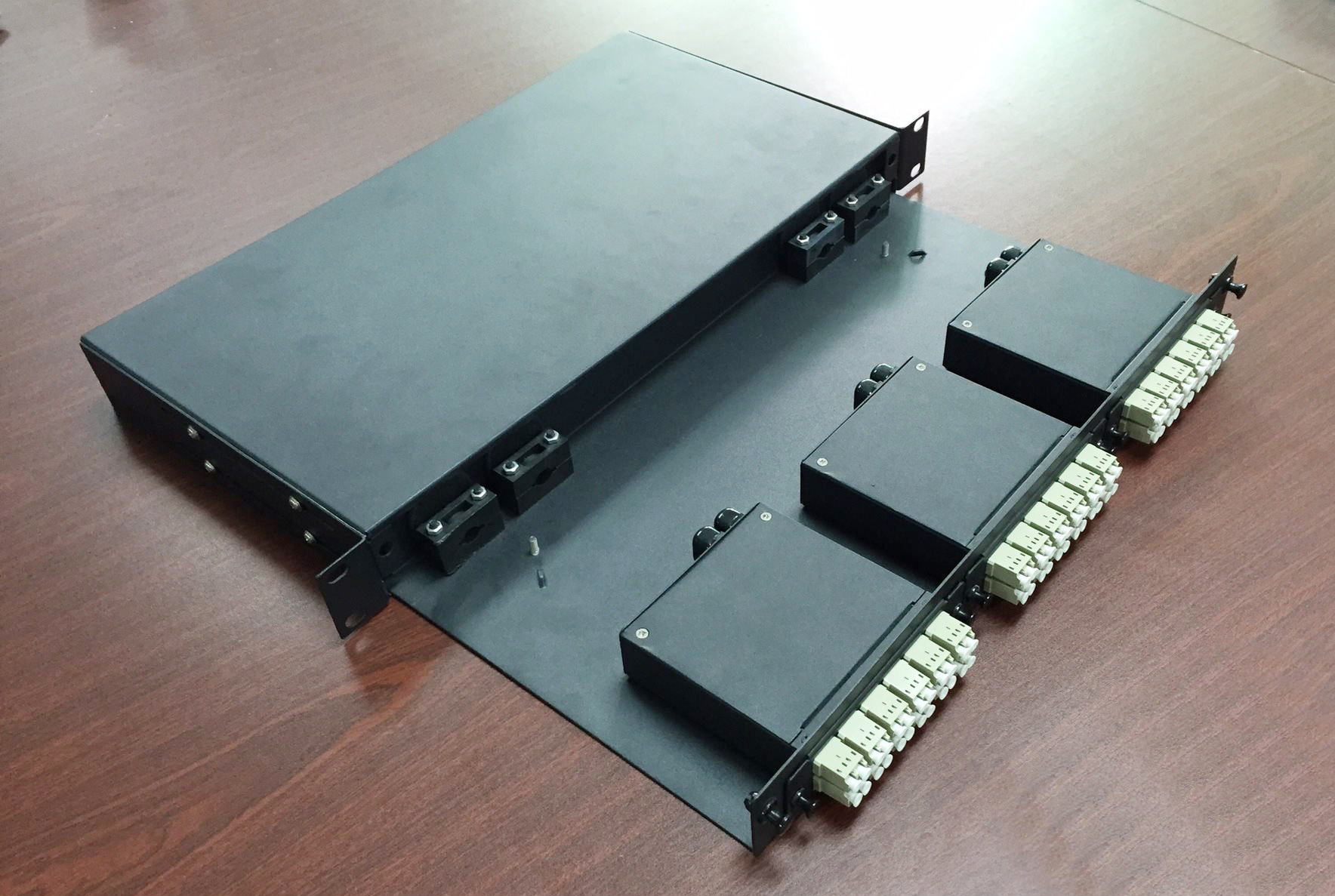

Yes, the patch panel includes E-layer trays, each integrated with independent aluminum guide rails to facilitate smooth and separate drawer operation.
The patch panel functions reliably within an operating temperature range of -5°C to +40°C, and can be safely stored at temperatures between -25°C and +55°C, under relative humidity levels of ≤95%.
