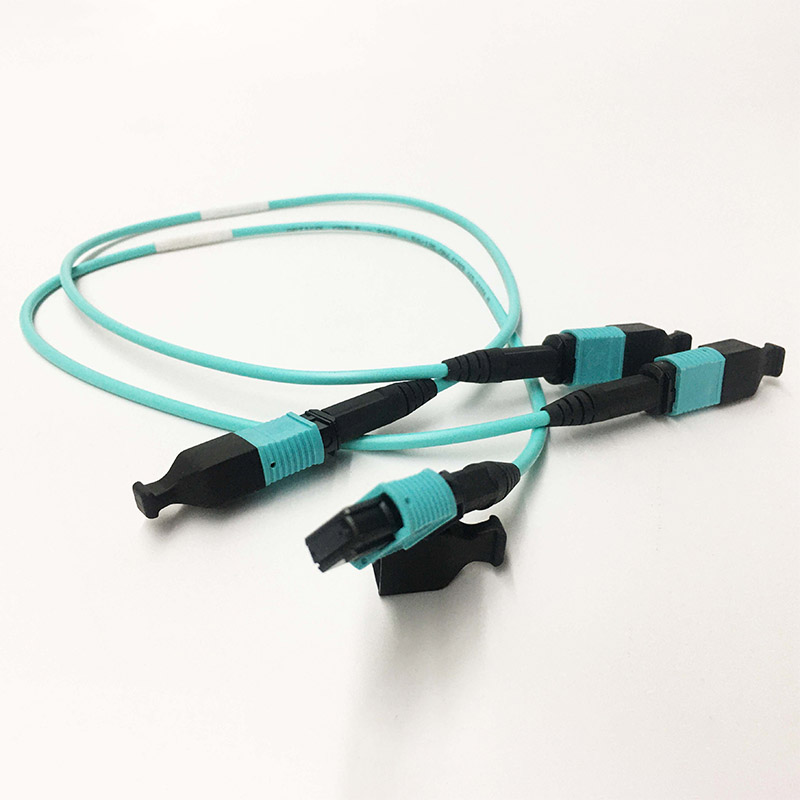

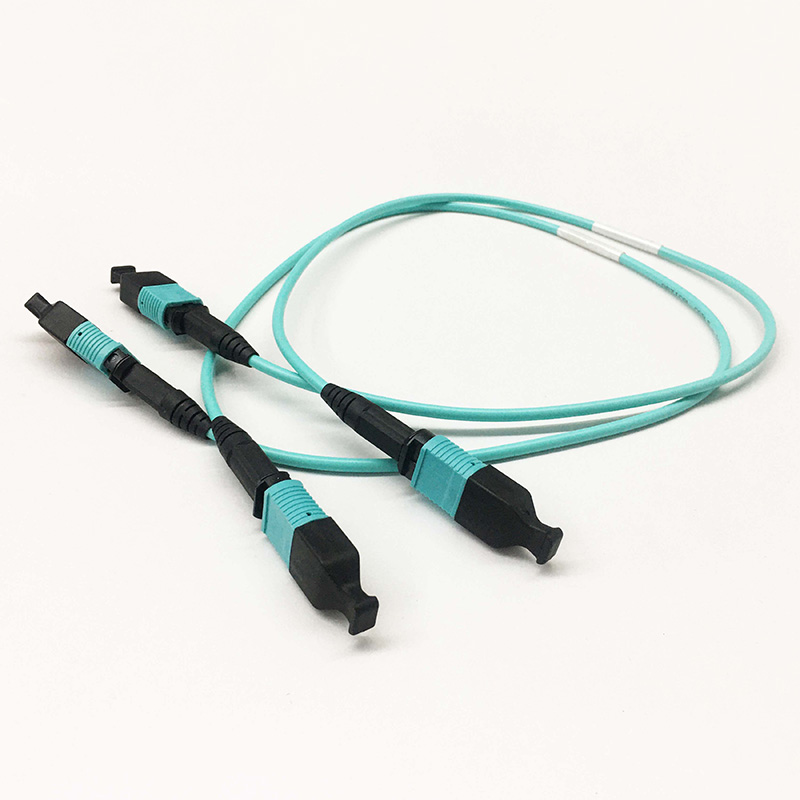

MTP/MPO patch cable is a high-performance fiber optic cable terminated with MTP/MPO connectors on both ends. Designed with a 3.0mm LSZH round jacket, it offers standard and elite insertion loss options to satisfy diverse transmission requirements.

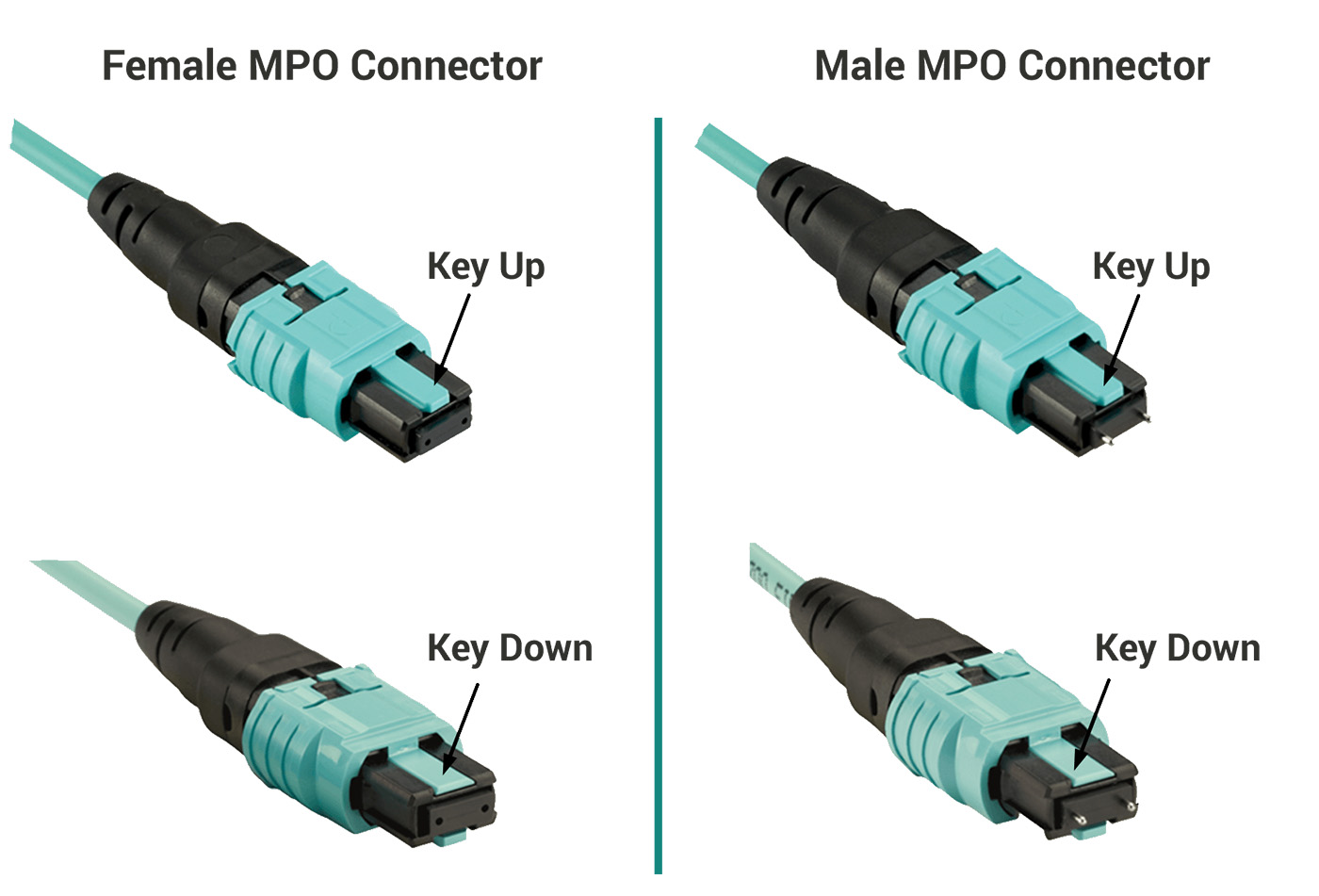

Available in single mode and multimode (OM1, OM2, OM3, OM4, OM5) versions, supporting customized designs. We offer configurations in 8, 12, 16, 24, or 48 cores, with options for male (with pins) and female connectors to fit your architectural needs.
Multimode fiber optic cables feature a larger core diameter that permits multiple modes of light propagation, enabling higher data capacity for shorter runs. Because higher dispersion and attenuation limit signal quality over long ranges, multimode fibers are primarily utilized for LANs, data applications, and audio/video setups.
| Type | Single Mode (APC Polish) | Single Mode (UPC Polish) | Multimode (PC Polish) | |||
|---|---|---|---|---|---|---|
| Fiber Count | 8, 12, 24, etc. | 8, 12, 24, etc. | 8, 12, 24, etc. | |||
| Fiber Type | G652D, G657A1, etc. | G652D, G657A1, etc. | OM1, OM2, OM3, OM4, OM5, etc. | |||
| Max. Insertion Loss | Elite (Low Loss) | Standard | Elite (Low Loss) | Standard | Elite (Low Loss) | Standard |
| Value | ≤ 0.35 dB | ≤ 0.75 dB | ≤ 0.35 dB | ≤ 0.75 dB | ≤ 0.35 dB | ≤ 0.60 dB |
| Return Loss | ≥ 60 dB | ≥ 60 dB | N/A | |||
| Durability | ≥ 500 times | ≥ 500 times | ≥ 500 times | |||
| Operating Temp. | -40°C ~ +80°C | -40°C ~ +80°C | -40°C ~ +80°C | |||
| Test Wavelength | 1310nm | 1310nm | 1310nm | |||
| Insert-pull Test | 1000 times ≤ 0.5 dB | |||||
| Interchangeability | ≤ 0.5 dB | |||||
