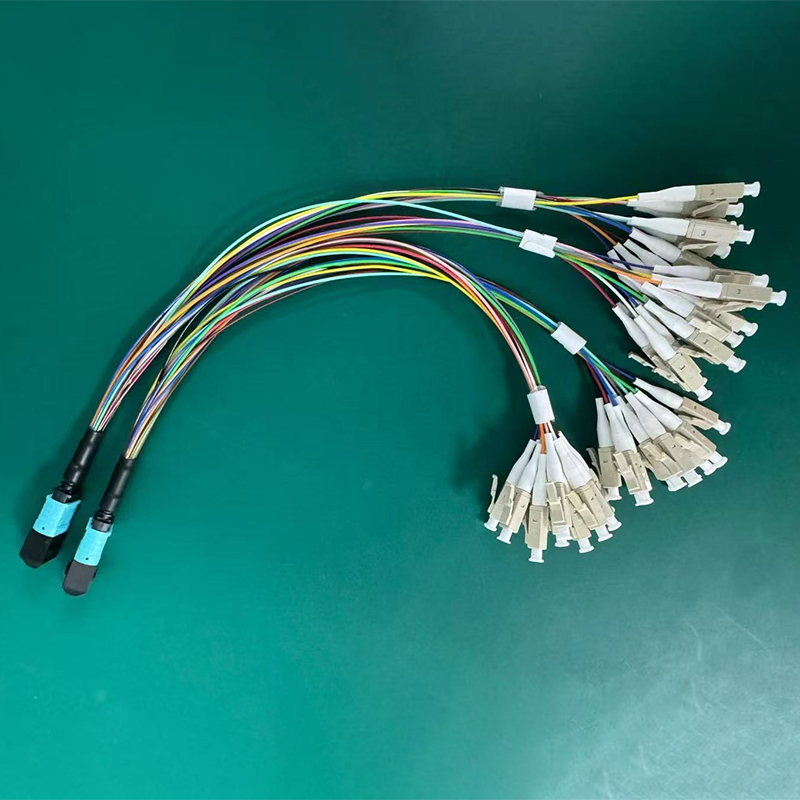

MTP/MPO harness cable, also called MTP/MPO breakout cable or MTP/MPO fan-out cable, is a fiber optic cable terminated with MTP/MPO connectors on one end and MTP/MPO/LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end. The main cable is usually 3.0mm LSZH Round cable, breakout 2.0mm cable. Female and Male MPO/MTP Connector is available and Male type connector has pins.

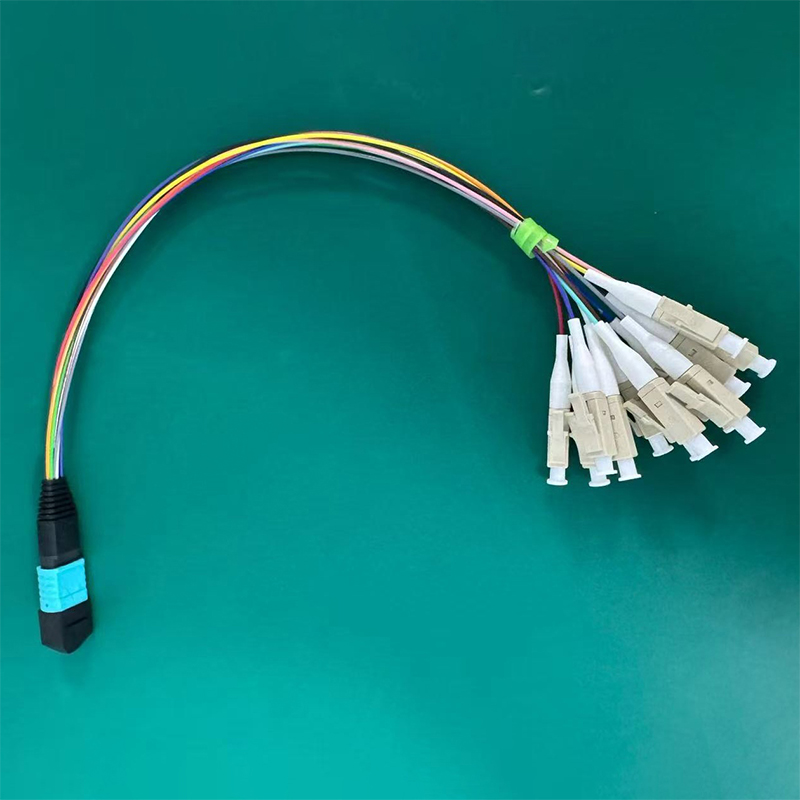

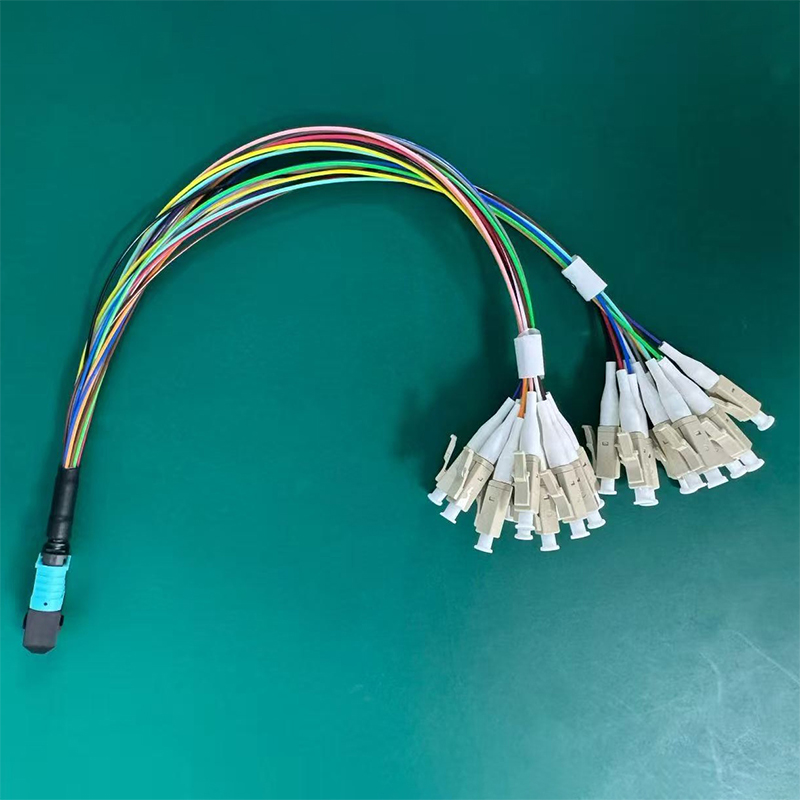

An MPO-LC breakout cable is a type of fiber optic cable that transitions from a high-density MTP MPO connector on one end to multiple LC connectors on the other. This design allows for efficient connectivity between backbone infrastructure and individual network devices.
We can offer Single mode and Multimode MTP fiber optical patch cables, custom design MTP fiber optic cable assemblies, Single mode, Multimode OM1, OM2, OM3, OM4, OM5. Available in 8 cores, 12core MTP/MPO patch cables, 24core MTP/MPO patch cables, 48core MTP/MPO patch cables.
Hyperscale data centers rely on high-density cabling solutions to handle massive data loads. MPO-LC breakout cables are ideal for connecting servers, switches, and routers with minimal latency.
The rollout of 5G networks depends heavily on reliable fiber optic infrastructure. MPO-LC breakout cables ensure seamless connectivity for telecom applications.
AI and IoT systems require real-time data processing. MPO-LC breakout cables provide the ultra-low latency and high bandwidth needed for these cutting-edge technologies.
| Type | Single Mode (APC Polish) | Single Mode (UPC Polish) | Multi Mode (PC Polish) | |||
|---|---|---|---|---|---|---|
| Fiber Count | 8, 12, 24 etc. | 8, 12, 24 etc. | 8, 12, 24 etc. | |||
| Fiber Type | G652D, G657A1 etc. | G652D, G657A1 etc. | OM1, OM2, OM3, OM4, etc. | |||
| Max. Insertion Loss | Elite (Low Loss) | Standard | Elite (Low Loss) | Standard | Elite (Low Loss) | Standard |
| Insertion Loss Value | ≤ 0.35 dB | ≤ 0.75 dB | ≤ 0.35 dB | ≤ 0.75 dB | ≤ 0.35 dB | ≤ 0.60 dB |
| Return Loss | ≥ 60 dB | ≥ 60 dB | N/A | |||
| Durability | ≥ 500 times | ≥ 500 times | ≥ 500 times | |||
| Operating Temperature | -40°C ~ +80°C | -40°C ~ +80°C | -40°C ~ +80°C | |||
| Test Wavelength | 1310nm | 1310nm | 1310nm | |||
| Insert-pull test | 1000 times < 0.5 dB | |||||
| Interchange | < 0.5 dB | |||||
| Anti-tensile force | 15kgf | |||||
